Summary of Contents for Friax Monobloc MPCO 48 ONYX

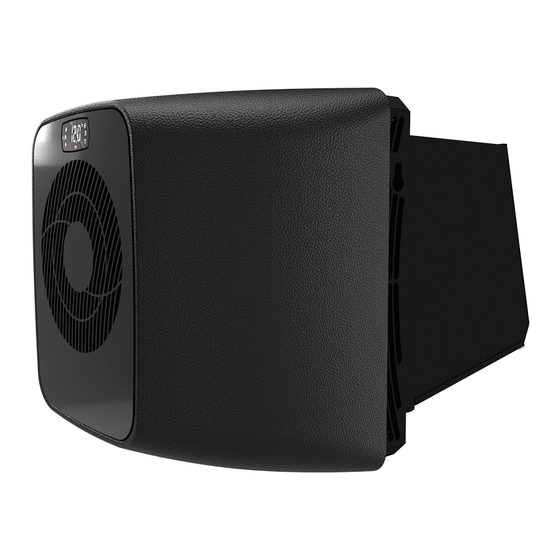

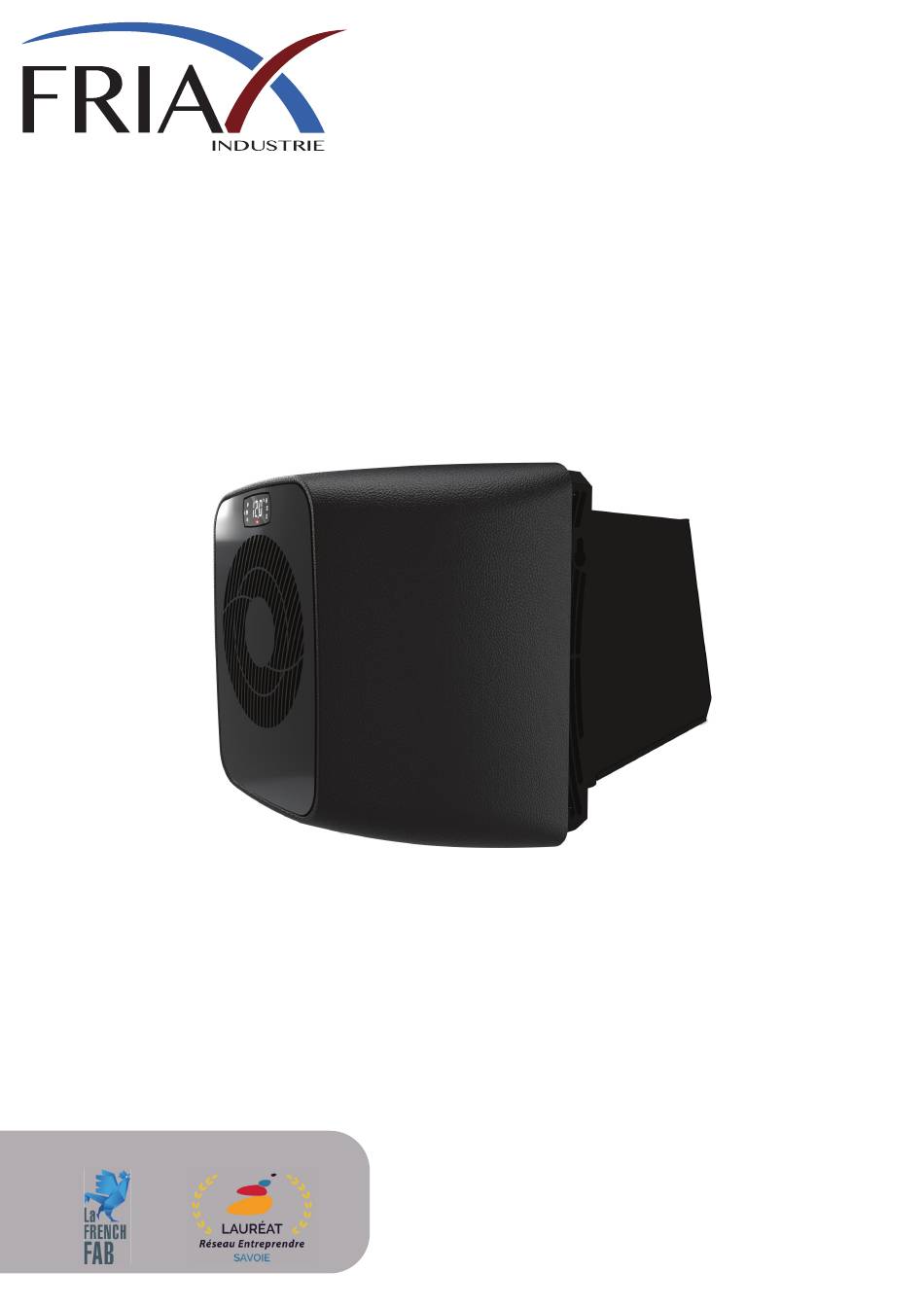

- Page 1 Technical installation manual Monobloc MPCO 48 ONYX The characteristics given in this technical sheet may change without prior notice, with the improvements that «FRIAX Industrie» always in- tends to make to its production. EN-NT-MPCO-0624...
- Page 2 Warning MPCO Read the manual carrefully before using the device and keep it for futur reference. This symbol indicates that the installation manual should be read carrefully. This symbol indicates that a technician must handle this equipment in referring to the installation manual. This symbol indicates that information are available, such as the manual operating instructions or installation manual.
-
Page 3: Table Of Contents
Summary MPCO Presentation ................................. 4 Receipt of the package ............................... 4 Technical data ..............................5 Equipment ..................................5 Dimensions ................................6 Device Information .............................. 7 Installation ................................8 Unpack the MPCO Monoblock ............................ 8 ....................... 8 Assemble and install the frame ........................... 9 Install the air conditioner. -
Page 4: Presentation
Presentation MPCO user manual. It will allow you to understand and master the operations to install and adjust your device. Receipt of the package Please note your comments regarding the condition of the package on the carrier’s delivery note: they will be used in the event of damage noted upon unpacking. -
Page 5: Technical Data
Technical data MPCO MPCO 48 +32°C ext Indicative volume to be air-conditioned 48m3* Cellar temperature adjustment 8 - 18°C Cooling capacity 1100W at 12°C ** Absorbed power 703W Absorbed power / compressor intensity 521W / 3.15A 1.58 Voltage/Frequency 5A / 7.1A Pressure sound level at 5m 442m3/h 510m3/h... -
Page 6: Dimensions
Dimensions MPCO... -
Page 7: Device Information
Device Information MPCO Cellar probe Regulation display Evaporator fan Condensate recovery tray inside cellar outside cellar the condensate evacuation) -
Page 8: Installation
Installation MPCO Unpack the MPCO Monoblock It is advisable to remove the device from its packaging accompanied by someone. Remove the black bodywork by unscrewing the wing nuts Your Monoblock MPCO blows at the front and takes in air from the periphery along the wall. Allow at least 25 cm of space around the device so For perfect diffusion, it is recommended to install the air conditioner high up;... -
Page 9: Assemble And Install The Frame
Assemble and install the frame Your Monoblock MPCO is supplied with a wooden mounting frame to mount to position the device through the wall. - Mount the installation frame using the 4 screws and 4 pins. - Stick the gasket provided to create a seal with the device. -
Page 10: Install The Air Conditioner
Install the air conditioner. - Slide the device into the mounting frame. locations with a Ø4 drill bit. - Secure the device to the installation frame from inside the cellar using the 4 wood screws provided. Electrical and condensate connections Condensate connections can be made in 2 ways: The electrical outlet must only be plugged in from inside the cellar. -
Page 11: Installation Of Condensate Drainage
Installation of condensate drainage. - A sachet is supplied with your air conditioner, It includes 2 internal Ø 15 condensate pipes, a 90° Connections from inside the cellar. - Use the passages located at the bottom left for condensate drainage. Fig:2 Internal Ø... -
Page 12: Connect Accessories
Connect Accessories Lifting pump kit: KPR-XO When the device is powered on and it is stopped with the remote control: the lift pump is always active. Connect the pump power A connector equipped with a Shunt is available pump. You will need to remove the shunt to connect the pump. -
Page 13: Commissioning The Air Conditioner
Commissioning the air conditioner MPCO Plug the device into the mains After ensuring that your installation is compliant, you can plug in the device to turn it on and begin Starting the Monoblock The group is equipped with factory-set internal regulation. It will start when the device is plugged in and will begin to regulate once the regulator is set to ON. -
Page 14: Alarms
Set point adjustment The factory set value is: 12°C Press for 3 seconds on to display the icons To push on to display the setpoint and adjust it with the up and down arrows then validate with and return to the main temperature screen. Return to temperature display the key to return to the main screen. -
Page 15: Air Conditioner Maintenance
Air Conditioner Maintenance MPCO The following maintenance operations repeated every 12 months will help maintain the optimal performance of your Monobloc MPCO and thus maintain the ideal environment for the conservation and aging of your bottles. Warning Before any maintenance operations, turn off the device using the remote control then unplug it from the power outlet. -
Page 16: Exploded View
Exploded view MPCO Evaporator side... -
Page 17: Condenser Side
Condenser side... - Page 18 Serial number : _________________ For better monitoring of your installation, please record here all the interventions that take place on your machine. Date OBJECT NOTICED In order to simplify maintenance and to be alerted quickly in the event of an alarm, we recommend the use of a WineSupervisor to keep the operating history of the device.
-
Page 19: Electrical Diagram
Electrical diagram MPCO... - Page 20 231/233 Rue de la Prairie F-73420 Voglans Site web : www.friax.fr info @friax.fr Boite mail : Découvrez notre gamme de rangement pour la cave ! VisioRack ® L'agencement du vin www.visiorack.com...
