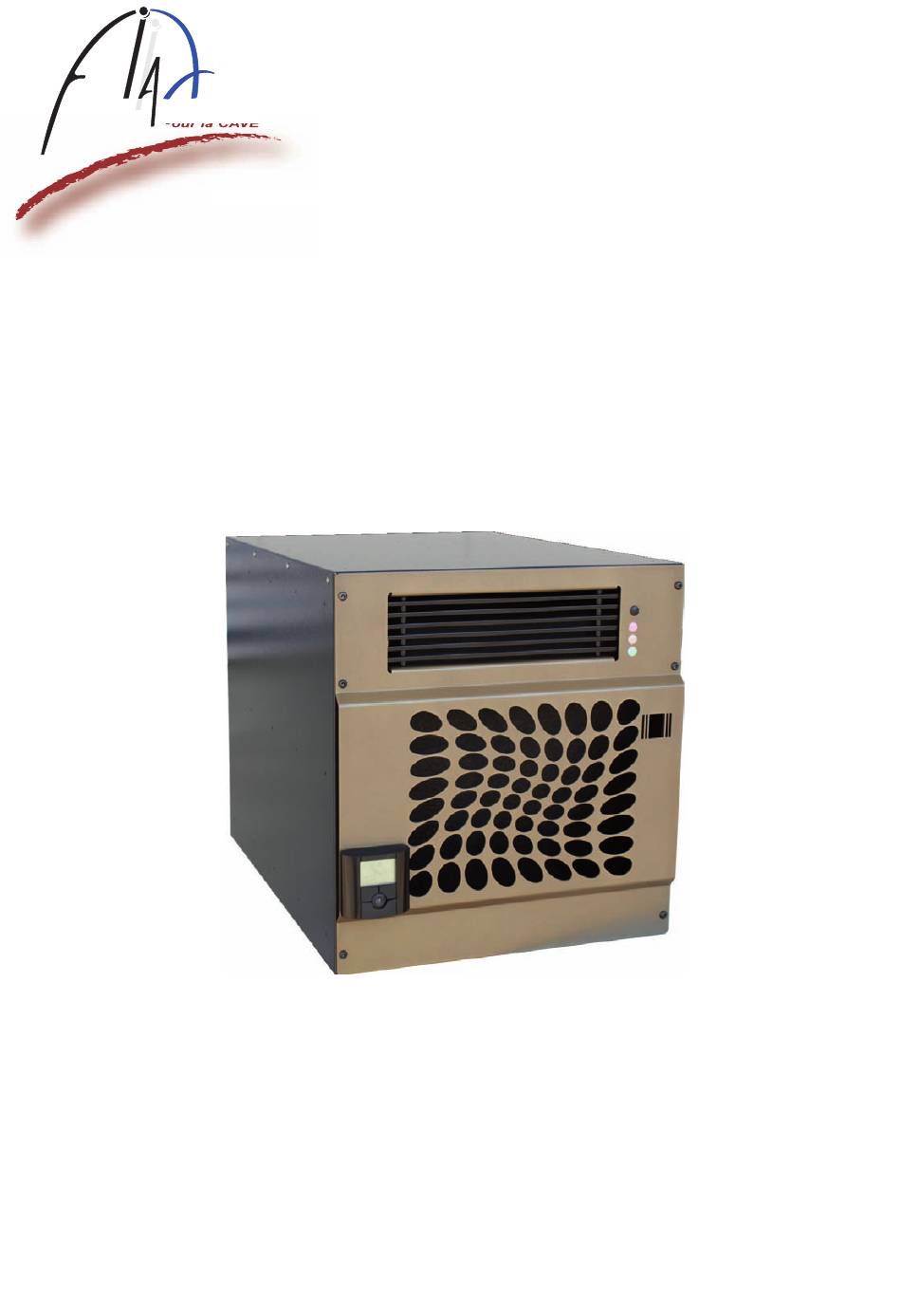

CAVE Vos vins seront bien gardés Vos vins seron Installation Manual MPC Genesis - Vintage "FRIAX industrie" in a constant endeavour to improve its products reserves the right to change any information contained in this leaflet without prior warning GB-NT-MPC-0314... -
Page 2: Contents Of The Package
Contents of the package Genesis - Vintage Thank you for choosing a FRIAX's Monobloc system to control the aging of your wine. Take the me to read this manual. It will help you understand the steps to install and adjust the MPC series. -
Page 3: Specifications
Specifications Genesis - Vintage MPC 30 MPC 48 30m3* 48m3* Maximum volume of the cellar 780 W** 1100 W** Cooling capacity 800 W*** 800 W*** Hea ng capacity 230 V - 50Hz 230 V - 50 Hz Voltage 2,41 A Current cooling mode 3,24 A 3,58 A... - Page 4 Accessories Genesis - Vintage Monobloc FRIAX comes with - 4 corners of wall mounts - A power supply cable 2m (230V single phase) - A box with wireless remote, table stand for remote control and two ba eries - A flexible drain tube Ø 16 2m length - A bag containing screws fixing brackets on the air condi oner, a siphon, a plug for the...
-
Page 5: Installation
Installation Genesis - Vintage Humidifier water supply 20/27 male on Power / fuse holder / off vintage models switch Connec ng the drain siphon inside cave outside cellar Evaporator condenser Principle of opera on Evaporateur Condenseur KCH H Cave 12°C Extérieur 32°C... - Page 6 Installation Genesis - Vintage Implementa on -The air condi oner must be installed in an open area. -In order to have a perfect distribu on of the air, it is advisable to install the air condi oner in height. Côtes de réserva on -All natural and mechanical ven la on should be avoided in the cellar.
- Page 7 Installation Genesis - Vintage The monobloc-body is adapted to be fixed at 5 different depths of recesses. Dans certaines posi ons et en fonc on du support, il peut être nécessaire d'ajouter des renforts pour éviter que l'appareil ne bascule...
- Page 8 Mounting Genesis - Vintage Put the unit in the wall A ach the device. Use screws and anchors (not supplied) to the wall type. Connect the drain, (1) Connect the siphon supplied accessory directly on the flow of the unit elbow. Thanks to the use of the cap seal, the connec on between the elbow and the siphon must be per- fectly sealed.
-
Page 9: Wireless Remote
Wireless Remote Genesis - Vintage Power supply: 2 x 1.5V (AAA) ba eries provided The remote control could be installed in any room. Its maximum range is 100m in a completely open area. This distance could be extremly reduced from the thick walls and the loca on of the cellar. - Page 10 Wireless remote Genesis - Vintage 7 8 9 Navigation key Navigation key Validation key Key work -Red : Heating mode Menu key Stand bye -Green : Cooling mode Return stop -Flashing red: Alarm Parameter number Configuration type Key lock indicator Setup mode RF Transmission Crankase heater indicator...
-
Page 11: First Start
First start Genesis - Vintage Step I- Synchronize the unit with the remote 1- Plug the electrical cable to the socket. Switch on the power The 3 LED (red yellow and green) lights light up . A er few secondes, only the red LED light stays lit From that moment, for security reasons, a mer starts the air condi oner on standby ope- ra on for a period of 24 h. - Page 12 First start Genesis - Vintage Step II - Set the cellar fan speed Remarks Access to Parameters Screens Manipulations menu Even if the screen is blank Press Login with Se ng the See below the value Change the value with for 6 seconds speed evapora- set according to the...
- Page 13 Settings: temperature and humidity * Genesis - Vintage Réglages Manipula ons Affichages Remarques Displays the current value Press of the setpoint tempera- ture For 2 seconds Flashing Change the value with Displays the value of the desired setpoint tempera- ture Flashing Displays the current value Adjust the tempe-...
- Page 14 User menu Genesis - Vintage func ons Manipula ons Views Remarks The display alternately Display the tempera- shows the value of the Press ture or humidity of the temperature and humidity cellar (Only Vintage) The fan switches to low Put the fan in the cellar Press speed for 10 minutes in silent mode...
- Page 15 User menu Genesis - Vintage Access to Parameters Screens Manipulations Remarks menu Login with Change the value with Switches from 12 h Se ng the me AM / PM display on display. 12 or 24 hours confirm with Login with Even if the screen Change the value with is blank Press...
- Page 16 User menu Genesis - Vintage Access to Parameters Screens Manipulations Remarks menu This parameter is Login with set to 0 at the factory. It may be modified only in Change the value with the case where Calibra ng the there would be a temperature difference sensor...
- Page 17 Alarms codes Genesis - Vintage Two types of errors may appear on the wireless remote control. Type 1 alarm : The Green and red LED on the front panel flashes. A warning message appears on the wireless control and bu on flashes when a bu on is pressed.
-
Page 18: Maintenance
Maintenance Genesis - Vintage Maintaining your air condi oner cellar The following maintenance repeated every 6 months opera ons will allow your air condi oner SPC keep its op mal ways to ensure its longevity and your wines. CAUTION Before any maintenance work, switch off the power supply to the main circuit breaker. Maintenance of the condenser (hot side) Remove the front cover using an Allen wrench to access the condenser coil air. -
Page 19: Wiring Diagram
Wiring diagram Genesis - Vintage yellow blue white bleu blanc jaune yellow jaune blue white TAC2 PWM1 bleu blanc PWM2 on Vintage model Sur version Vintage Sonde T° POWER T°+HGR cond 5 x 20 10A GT Solenoid valve on vintage Compressor Heater series... - Page 20 INDUSTRIE 231/233 Rue de la Prairie F-73420 Voglans Site web :www.friax.fr Boite mail : info @friax.fr Découvrez notre de cave de rangement pour la cave! site web: www.visiorack.com...
