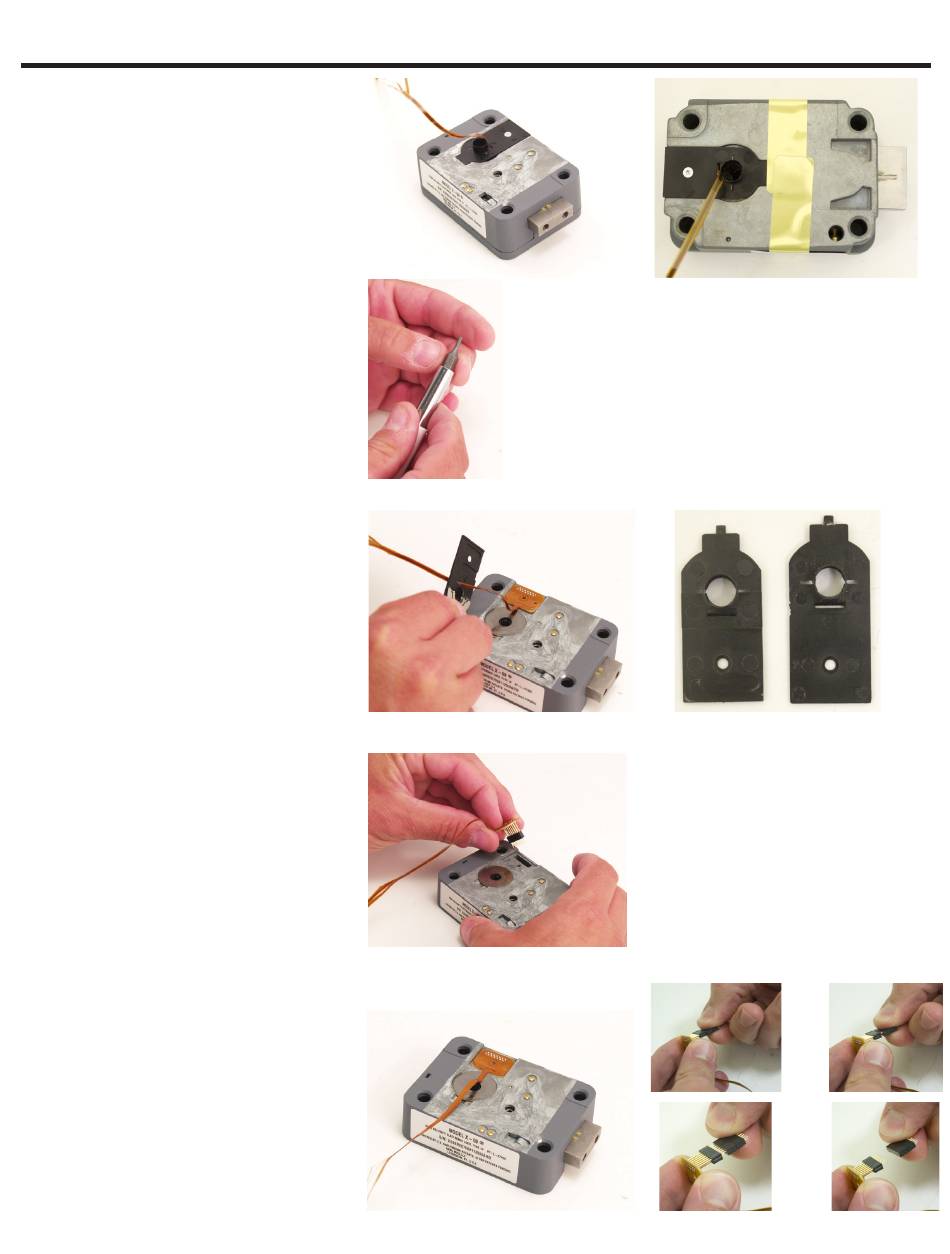

Replacing the Ribbon Cable on the X-09/X-10
Disassemble and remove the lock
body from the container or door.

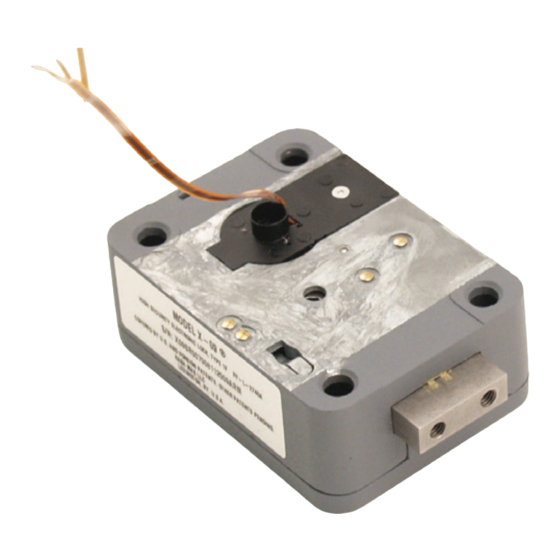

Turn the lock over so the cables
and plastic tube retainer are
visable.
Insert the T-6 Torx Bit, supplied
with the X-09/X-10 Service Tool,
into the tool and remove the
screw holding the tube retainer
on to the lock case.
Carefully remove the tube
retainer.
Note: The Ground Contact will
probably be stuck to the Tube Retainer
with grease, please be aware of this and
make sure it is in place when re-
installing the tube retainer. The cable
plug should now be visable.
Note: The X-10 plastic tube retainer is
shorter and is located in a different spot.
If using an X-10 ribbon cable assembly
kit, make sure to use the plastic tube
retainer that's on the X-09.
Remove the cable plug and
damaged cables and discard.
Remove the protective cover off
of the contacts of the new cables
and insert them into the lock case
as shown.
X-09
TM
X-10
X-10
X-09
(1)
(2)
(3)
(4)
