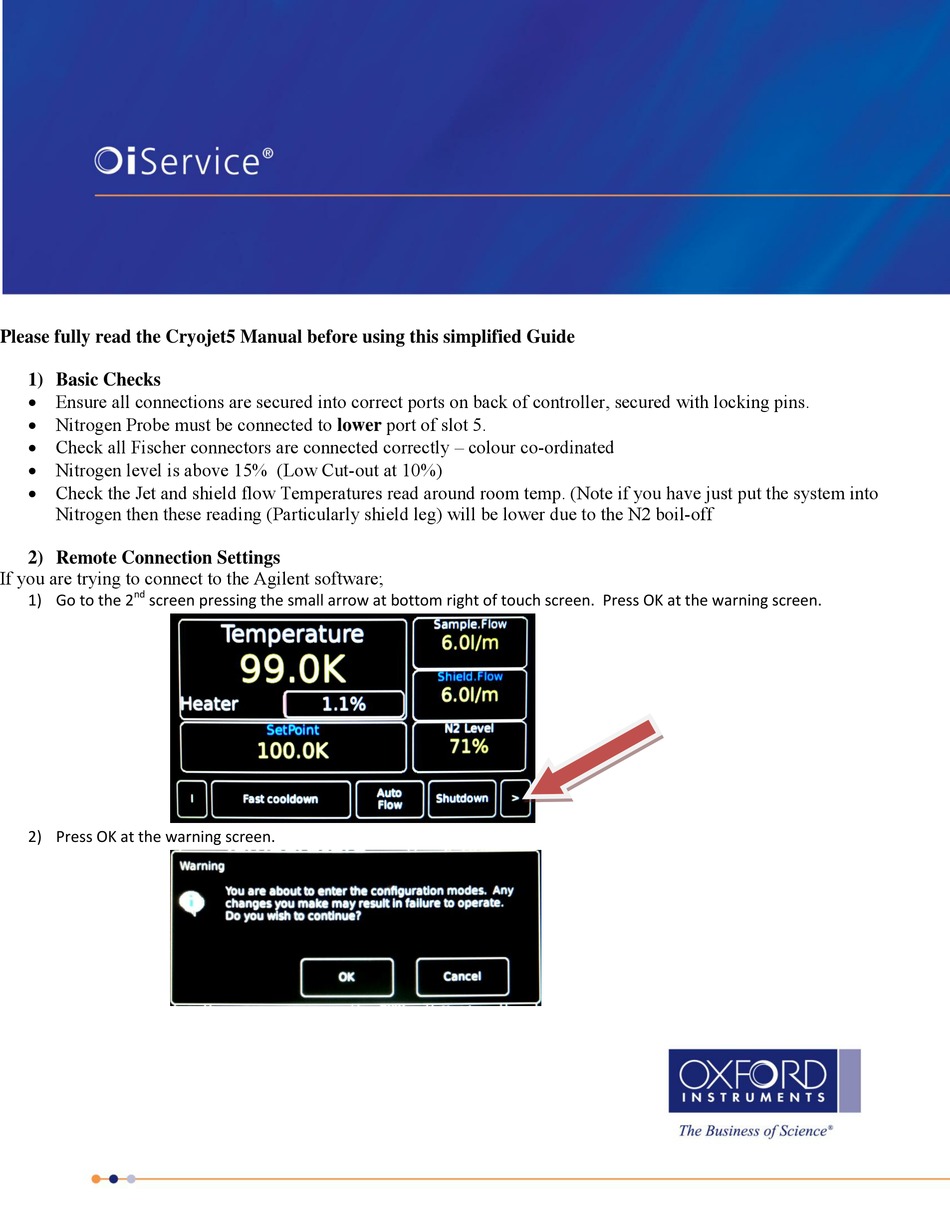

Oxford Instruments Cryojet 5 Simplified Manual

Please fully read the Cryojet5 Manual before using this simplified Guide

1) Basic Checks

 Ensure all connections are secured into correct ports on back of controller, secured with locking pins.

 Nitrogen Probe must be connected to lower port of slot 5.

 Check all Fischer connectors are connected correctly – colour co-ordinated

 Nitrogen level is above 15% (Low Cut-out at 10%)

 Check the Jet and shield flow Temperatures read around room temp. (Note if you have just put the system into

Nitrogen then these reading (Particularly shield leg) will be lower due to the N2 boil-off

If you are trying to connect to the Agilent software;

1) Go to the 2

screen pressing the small arrow at bottom right of touch screen. Press OK at the warning screen.

2) Press OK at the warning screen.

Table of Contents

Do you have a question about the Cryojet 5 and is the answer not in the manual?

Page 1 Please fully read the Cryojet5 Manual before using this simplified Guide 1) Basic Checks  Ensure all connections are secured into correct ports on back of controller, secured with locking pins.  Nitrogen Probe must be connected to lower port of slot 5. ...
Page 2 3) Select the “settings” tab from the bottom row 4) Scroll through the tabs using the arrows at the top right until you reach the RS232 tab, now check the settings; i. BAUD rate 9600 ii) Parity “Mark” iii) Data “8” iii.
Page 3 Now scroll to the ISOBUS tab and check that it is set to comm. Port “4” (Or whatever port you are using) AGAIN you MUST hit “APPLY settings before exiting Finally on the Settings screen, select “remote access” to be ISOBUS and ensure the second box is “Legacy” Again apply these settings.
Page 4 Autofil Set-up If the system has been ordered with an autofil, the auto-fil should be set-up when the system arrives. The cable from the solenoid valve connects to the small port at the top of slot 4 (marked Auxilliary) and locks into place. To check the controller is set-up correctly;...
Page 5 – Cryojet 5 Agilent Guide Trouble Shooting for Agilent Installations Check you are on the Nitrogen tab at the top of the screen (not Helium) i. check that the “Refill Control Output” tab is set to Autofill.O0 Check that the low and high fill settings are where you want them. They are set to 30% and 90% as standard.
