CONNECT EXTERNAL EQUIPMENTS
Interface Input Ports

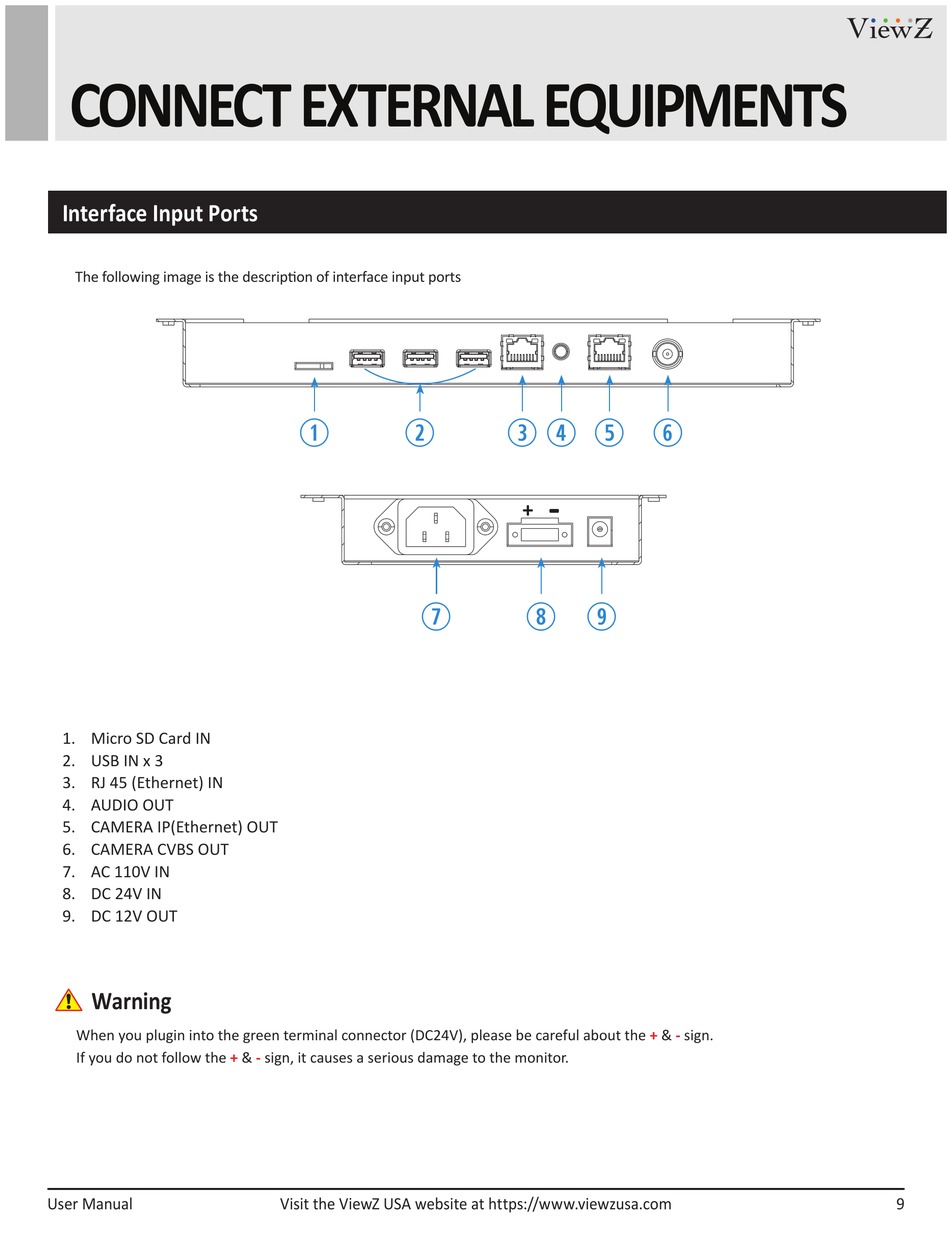

The following image is the description of interface input ports
1. Micro SD Card IN
2. USB IN x 3
3. RJ 45 (Ethernet) IN
4. AUDIO OUT
5. CAMERA IP(Ethernet) OUT
6. CAMERA CVBS OUT
7. AC 110V IN
8. DC 24V IN
9. DC 12V OUT
Warning
When you plugin into the green terminal connector (DC24V), please be careful about the
If you do not follow the
User Manual
q w
+ & - sign, it causes a serious damage to the monitor.
Visit the ViewZ USA website at https://www.viewzusa.com
e r t y
-
+
u i o
+ & - sign.
