VERSION
# 20-06-1 8
1 / 9
MODEL #
CM7302D-M
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7302D-M
Summary of Contents for Furniture of America CM7302D-M

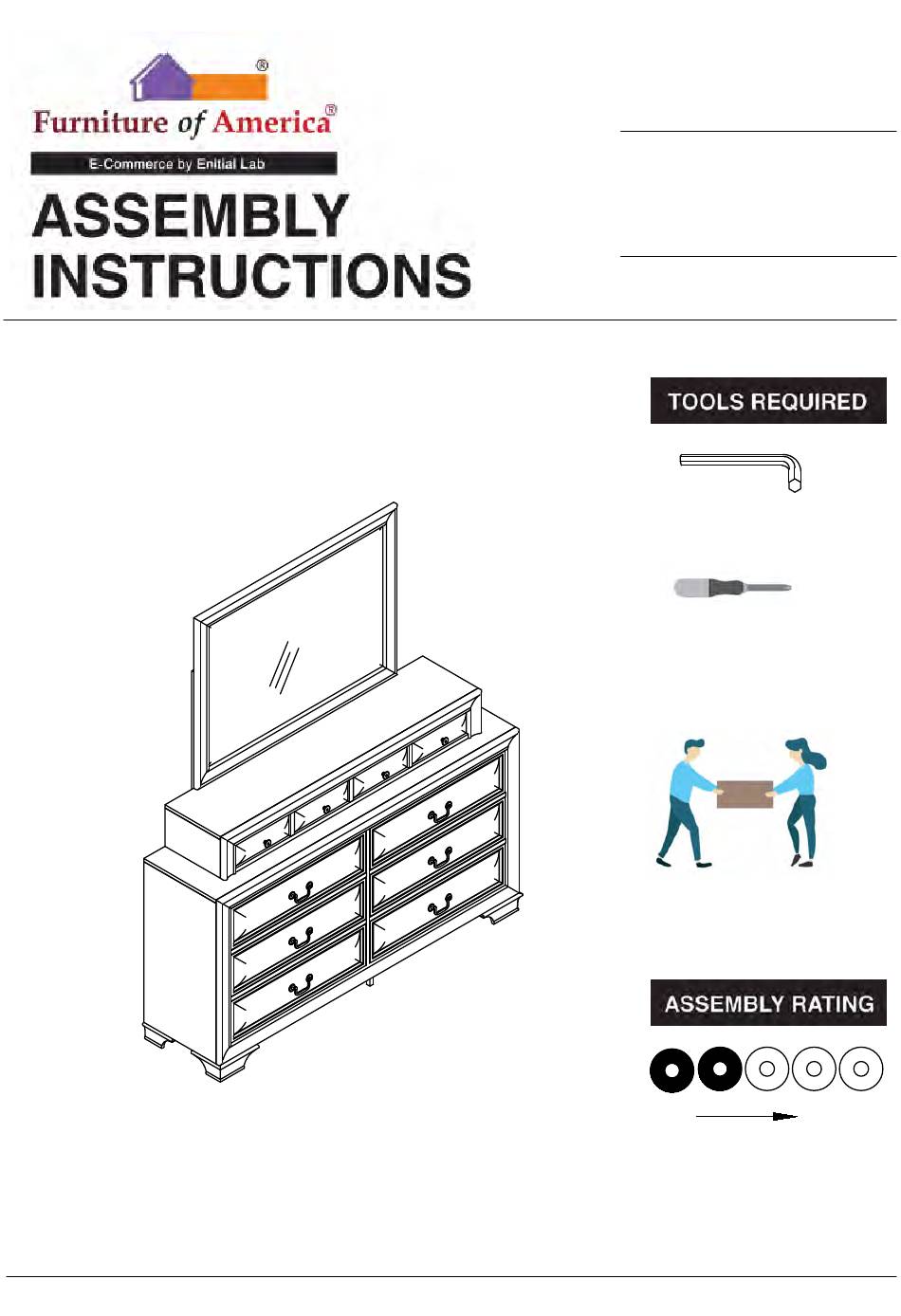

- Page 1 MODEL # CM7302D-M Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 DRESSER & MIRROR CM7302D-M #1 1pc #2 1pc #3 2pcs Mirror Dresser Back Rail #A 8pcs #B 8pcs #C 8pcs #D 1pc Bolt Ø1/4" x 1-3/8" Lock Washer Ø1/4" Flat Washer Ø1/4" Allen Wrench M4 #E 1Set Anti Tip Kit...
- Page 6 CM7302D-M is packed in 2 cases Disignation Part Hardware Carton #E 1Set Dresser CM7302D #A 8pcs Mirror #B 8pcs #C 8pcs CM7302M #D 1pc Back Rail 19mm 110mm 39mm 6 / 9...
- Page 7 ASSEMBLY INSTRUCTIONS Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align mirror support (#3)to the holes of the mirror (#1) and dresser (#2). Secure by using bolts (#A). Part #1 x1pc Part #2 x1pc Part #3 x2pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Hardware #E x1Set 8 / 9...
- Page 9 9 / 9...
