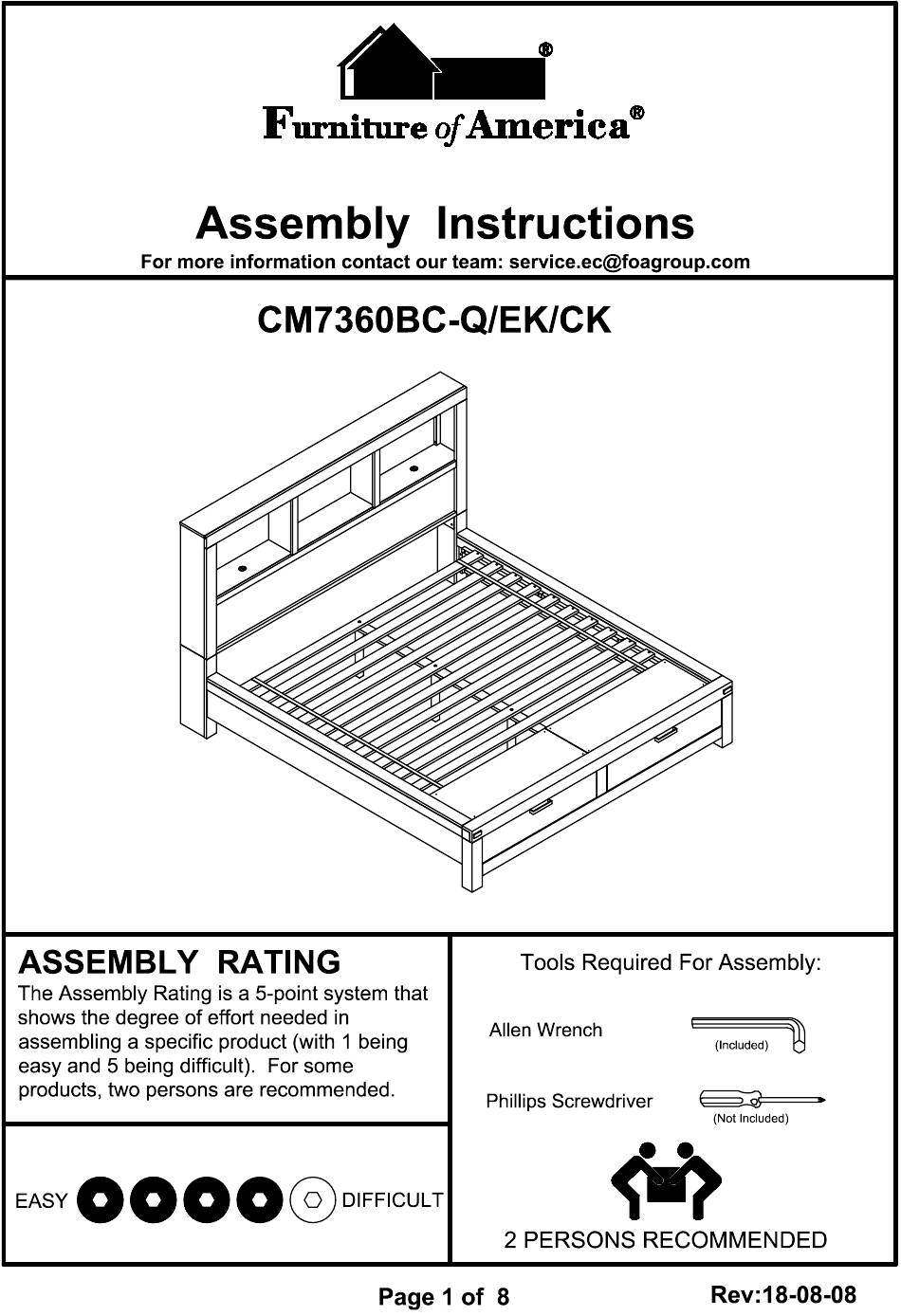

Assembly Instructions
EASY
DIFFICULT
Page 1 of 8
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
For more information contact our team: service.ec@foagroup.com
Rev:18-08-08
Phillips Screwdriver
(Not Included)

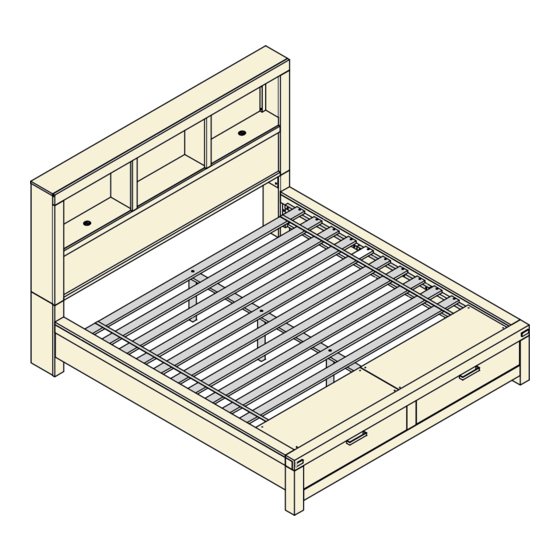

CM7360BC-Q/EK/CK
Advertisement
Related Manuals for Furniture of America Mcallen CM7360BC-EK
Summary of Contents for Furniture of America Mcallen CM7360BC-EK
- Page 5 Align HB legs (#2R/L) to headboard (#1), then secure by using bolts (#A) with washers (#B,C). Secure HB legs (#2R/L) to headboard (#1) by using bolts (#A) with washers (#B,C).
- Page 6 Attach support legs (#4) to the footboard (#3). Align side rails (#5) to the headboard (#1) and footboard (#3), then secure by using bolts (#D) with washers (#E,F).
- Page 7 Align center slat (#6) to the slat kit (#7), then secure by using support legs (#8). Adjust the levelers on the support legs (#8) according to ground level. Align slat kit (#7) to the side rails (#5), then secure by using screws (#H).
- Page 8 Align dusty panel (#9) to the bed, then secure by using screws (#I).
