Summary of Contents for Furniture of America CM7302Q

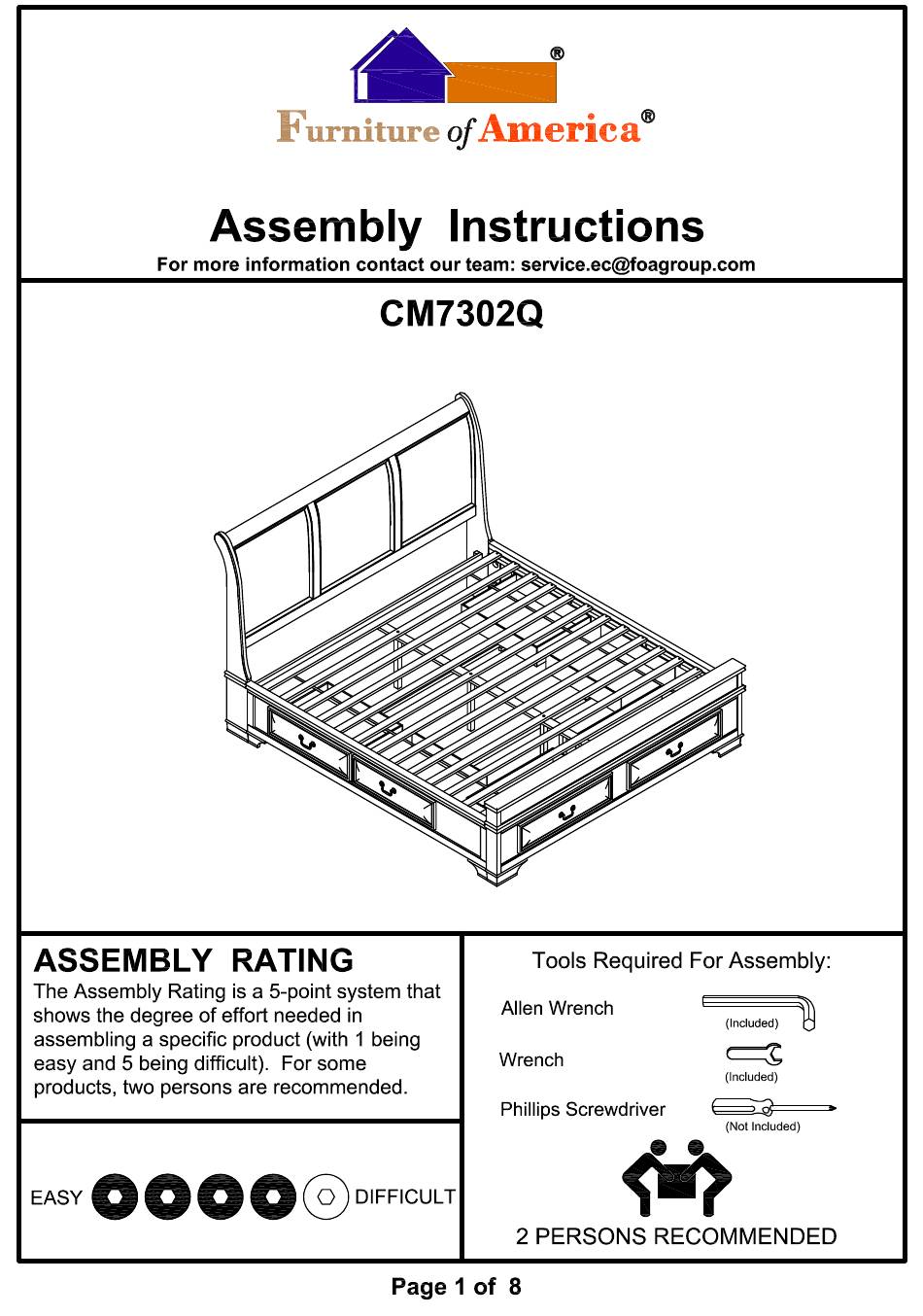

- Page 1 Rev: 18-01-11...
- Page 3 #G x 4pcs Wooden Dowel 10*40mm...
- Page 5 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Attach dowels (#G) to the holes of the HB legs (#2R/L), then align HB legs (#2R/L) to the HB panel (#1) and HB support (#3). Secure by using bolts (#A).
- Page 6 Attach threaded studs (#J) to the holes of the headboard (#1) and footboard (#4), then align side rails (#6R/L) to the threaded studs (#J). Secure by using washer (#K) with hex nut (#L). Align rail drawer support slats (#7) to the side rails (#6R/L), then secure by using screws (#H).
- Page 7 Align and attach support legs (#11) to the holes of the center slats (#8) and bed slats (#14). Adjust the leveler on the support legs (#11) according to ground level. Place bed slats (#14) to the side rails, then secure by using screws (#H). # 6R # 6L...
- Page 8 Attach drawers (#9,10) to the drawer slat rails.
- Page 9 Rev: 18-01-11...
- Page 11 #G x 4pcs Wooden Dowel 10*40mm...
- Page 13 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Attach dowels (#G) to the holes of the HB legs (#2R/L), then align HB legs (#2R/L) to the HB panel (#1) and HB support (#3). Secure by using bolts (#A).
- Page 14 2) Attach support legs (#13) to the holes of the bottom frame (#5). 1) Align bottom frame (#5) to the holes of the footboard (#4), then 3) Attach support legs (#12) to the secure by using bolts (#D) with holes of the bottom frame (#5). washers (#E).
- Page 15 Align rail drawer support slats (#7) to the side rails (#6R/L), then secure by using screws (#H). Align and attach support legs (#11) to the holes of the center slats (#8) and bed slats (#14). Adjust the leveler on the support legs (#11) according to ground level.
- Page 16 Place bed slats (#14) to the side rails, then secure by using screws (#H). Attach drawers (#9,10) to the drawer slat rails.
- Page 17 Align top side rails (#15) to the upper holes of the side rails (#6). Secure by using bolts (#D).
- Page 18 Rev: 18-01-11...
- Page 20 #G x 4pcs Wooden Dowel 10*40mm...
- Page 22 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Attach dowels (#G) to the holes of the HB legs (#2R/L), then align HB legs (#2R/L) to the HB panel (#1) and HB support (#3). Secure by using bolts (#A). 2) Attach support legs (#13) to the holes of the bottom frame (#5).
- Page 23 Attach threaded studs (#J) to the holes of the headboard (#1) and footboard (#4), then align side rails (#6R/L) to the threaded studs (#J). Secure by using washer (#K) with hex nut (#L). Align rail drawer support slats (#7) to the side rails (#6R/L), then secure by using screws (#H).
- Page 24 Align and attach support legs (#11) to the holes of the center slats (#8) and bed slats (#14). Adjust the leveler on the support legs (#11) according to ground level. Place bed slats (#14) to the side rails, then secure by using screws (#H).
- Page 25 Attach drawers (#9,10) to the drawer slat rails.
