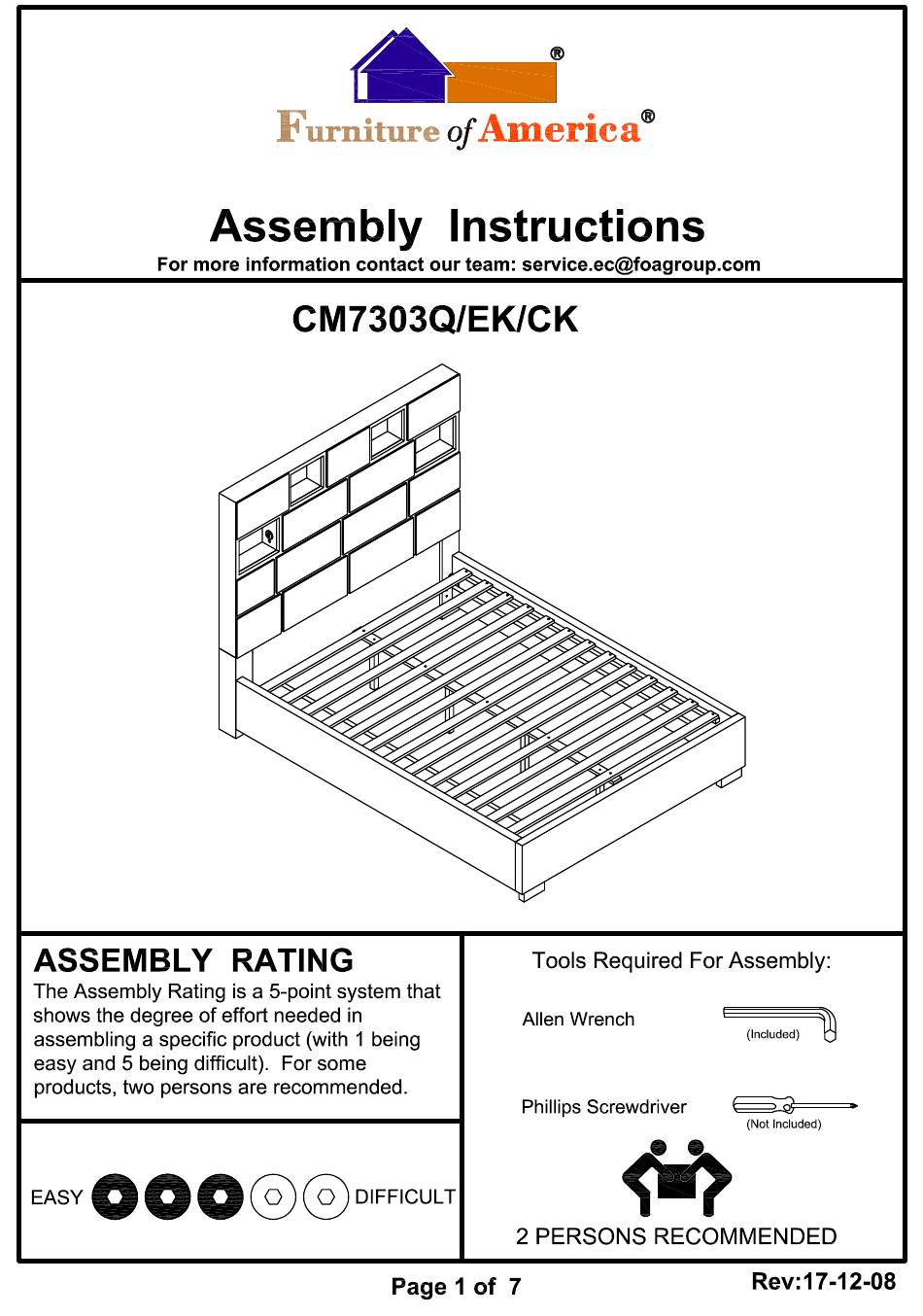

- 1 Assembly Rating
- 2 Tools Required for Assembly
- 3 Assembly & Care Advice
- 4 Parts List
- 5 Hardware List
- 6 Remove HB Legs (#2R/L) from the Bottom Compartment of the Headboard (#1)
- 7 Align the Bed Slats (#8) to the Side Rails (#5) and Center Support (#6). Secure by Using Screws (#E)
- Download this manual
Advertisement
Table of Contents
Related Manuals for Furniture of America Gemma CM7303Q
Summary of Contents for Furniture of America Gemma CM7303Q
- Page 4 Remove HB legs (#2R/L) from the bottom compartment of the headboard (#1). Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align HB legs (#2R/L) to the holes of the headboard (#1). Secure by using bolts (#A).
- Page 5 Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align legs (#4) to the holes of the footboard (#3). Secure by using bolts (#A). Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#D). Attach bolts (#D) half way into the headboard (#1) and footboard (#3) holes.
- Page 6 Attach support legs (#7) to the holes of the slat center support (#6), then adjust the floor leveler of the support legs according to ground level. Align the bed slats (#8) to the side rails (#5) and center support (#6). Secure by using screws (#E).
