MODEL #
CM7302CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
- People
3
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7302CK
Summary of Contents for Furniture of America CM7302CK

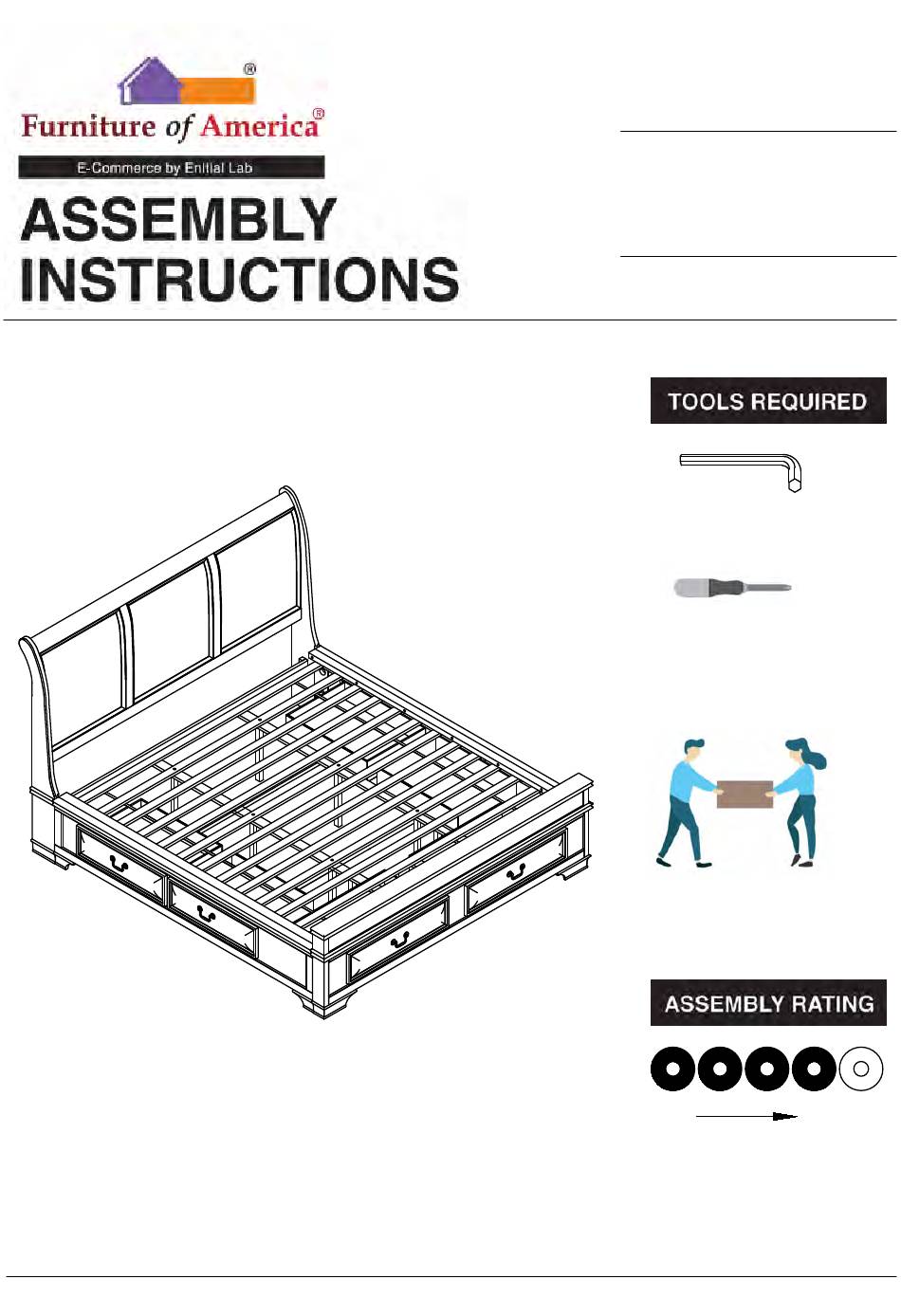

- Page 1 MODEL # CM7302CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 1...
- Page 5 CAL.KING BED CM7302CK #1 1pc #2 2pcs #3 1pc #4 1pc Headboard Leg Headboard Panel (L&R) Storage Footboard Headboard Support #5 1pc #6 2pcs #7 2pcs #8 2pcs Bottom Frame for drawer of Footboard Side Rail (L&R) Center Slat Rail Drawer Support Slat...
- Page 6 #A 8pcs #B 8pcs #C 8pcs #D 14pcs Bolt Ø5/16" x 1-3/4" Lock Washer Ø5/16" Bolt Ø1/4" x 1-1/2" Flat Washer Ø5/16" #F 1pc #G 4pcs #H 30pcs #E 4pcs Flat Washer Ø1/4" Allen Wrench M4 Wooden Dowel 10*40mm Screw #8 x 32mm #K 8pcs #L 8pcs #M 1pc...
- Page 7 CM7302CK is packed in 5 cases Carton Disignation Part Hardware #A 8pcs #B 8pcs Headboard #C 8pcs #D 14pcs #E 4pcs #F 1pc CM7302CK-1 #G 4pcs Headboard Leg(L&R) #H 30pcs #J 8pcs #K 8pcs Headboard Support #L 8pcs #M 1pc...
- Page 8 ASSEMBLY INSTRUCTIONS Part #1 x1pc Prepare 8 bolts assembly by inserting lock washer (#B), Part #2 x2pcs then flat washer (#C) onto bolts (#A). Attach dowels (#G) to the holes of the HB legs (#2R/L), then align HB Part #3 x1pc legs (#2R/L) to the HB panel (#1) and HB support (#3).
- Page 9 ASSEMBLY INSTRUCTIONS Attach threaded studs (#J) to the holes of the headboard (#1) and Part #6 x2pcs footboard (#4), then align side rails (#6R/L) to the threaded studs (#J). Secure by using washer (#K) with hex nut (#L). Hardware #J x8pcs Hardware #K x8pcs Hardware...
- Page 10 ASSEMBLY INSTRUCTIONS Part #8 x2pcs Part Align and attach support legs (#11) to the holes of the center slats (#8) and bed slats (#14). #11 x6pcs Adjust the leveler on the support legs (#11) according to ground level. Part #14 x1pc Hardware #H x26pcs Place bed slats (#14) to the side rails, then secure...
- Page 11 ASSEMBLY INSTRUCTIONS Part #9 x4pcs Part #10 x2pcs Attach drawers (#9,10) to the drawer slat rails. Part #15 x2pcs Hardware #D x10pcs Align top side rails (#15) to the upper holes of the side rails (#6). Secure by using bolts (#D).
