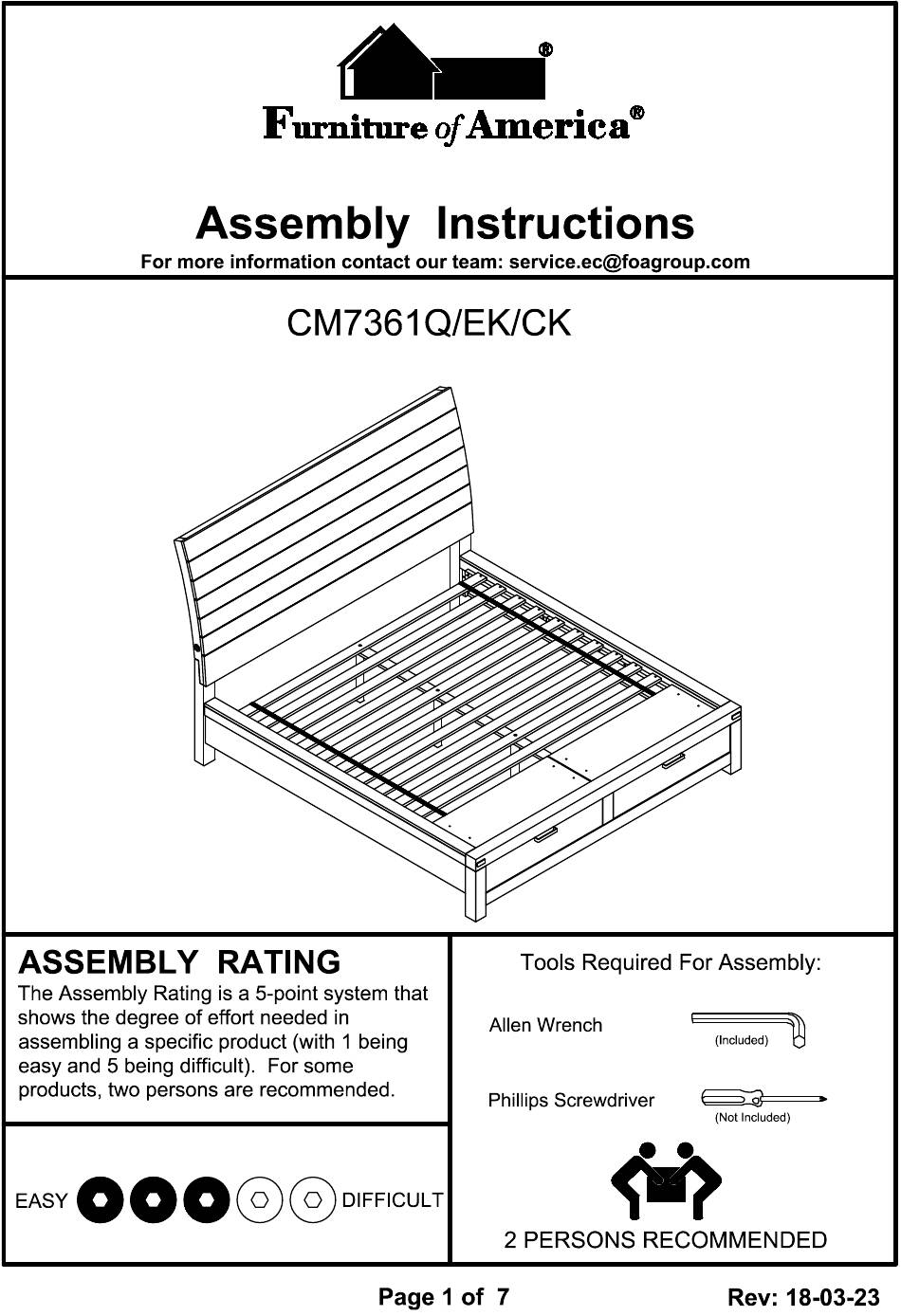

Assembly Instructions
EASY
DIFFICULT
Page 1 of 7
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
Rev: 18-03-23
CM7361Q/EK/CK
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
(Not Included)
For more information contact our team: service.ec@foagroup.com
Advertisement
Table of Contents
Related Manuals for Furniture of America Dion CM7361CK
Summary of Contents for Furniture of America Dion CM7361CK
- Page 5 Align HB legs (#2R/L) to the holes of the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Attach support legs (#4) to the holes of the footboard (#3). Adjust the leveler on the support legs (#4) according to ground level.
- Page 6 Align side rails (#5) to the holes of the HB legs (#2R/L) and footboard (#3). Secure by using bolts (#D) with washers (#E,F). Align center slat (#6) to the holes of the slat set (#7), then secure by attaching support legs (#8) to center slat (#6) and slat set (#7).
- Page 7 Align slat set (#7) to the side rails (#5), then secure by using screws (#H). Align dusty panels (#9) to the bed slats, then secure by using screws (#I).
