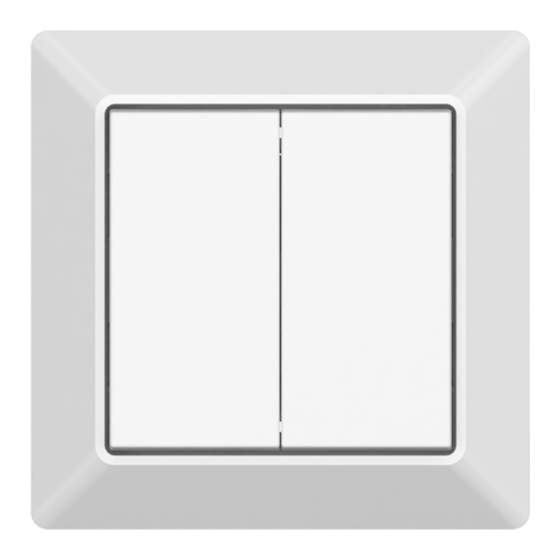

Configurable RF+Bluetooth Smart Switch
Important: Read All Instructions Prior to Installation
Function introduction
With Plastic Frame
14.7 mm
The remote control can be fixed on the wall with 3M glue or screw.
Front side
80.5 mm
Back side
70200050
With Glass Frame
10.10 mm
Product Data
Protocol
Number of Buttons
Power Supply
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimensions
• Configurable RF+Bluetooth smart wall switch with 4 buttons
• Battery powered, ultra low power consumption
• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons
• Configurable through EasyThings APP with numerous functions
• Enables to control ON/OFF, brightness, CCT, RGB colors
• Enables to trigger preset dynamic color sequences, preset scenes or saved scenes in EasyThings APP
• Mesh network for further control distance, receivers can transmit signal to each other
• 2.4 GHz global operation
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• Each receiver can be paired to max. 8 remote controls
• Enables to control universal DIM, CCT, RGB, RGBW and RGB+CCT RF+Bluetooth devices
• Standard size, compatible with existing EU size frame
86mm
The remote control can be fixed on the wall with 3M glue or screw.
RF+Bluetooth
3VDC(1xCR2430 battery)
2.4GHz
0.1%-100%
80.5x80.5x14.7mm / 86x86x14mm
4
30m
IP20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sunricher R-SBP2801K4-FOS-E
Summary of Contents for Sunricher R-SBP2801K4-FOS-E
- Page 1 Configurable RF+Bluetooth Smart Switch 70200050 With Glass Frame 10.10 mm Important: Read All Instructions Prior to Installation Function introduction 86mm The remote control can be fixed on the wall with 3M glue or screw. Product Data Protocol RF+Bluetooth Front side Number of Buttons With Plastic Frame Power Supply...
- Page 2 Safety & Warnings • This device contains lithium battery that shall be stored and disposed properly. • DO NOT expose the device to moisture. Operations Pair a RF+Bluetooth Receiver to the APP Step 1: Add the RF+Bluetooth LED receiver to EasyThings APP (please refer to the instruction of EasyThings APP to learn how).
- Page 3 Move CCT/white up (RGB disabled): for RGBCCT or RGBW devices, increase WW and decrease CW, or increase W channel, RGB channels are disabled. Move CCT/white down (RGB disabled): for RGBCCT or RGBW devices, increase CW and decrease WW, or decrease W channel, RGB channels are disabled.
