Led Diagnostics; Terminal Identification - Altronix LPS3WP12220 Manual

Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Terminal Legend
AC AC
– BAT +
– DC +

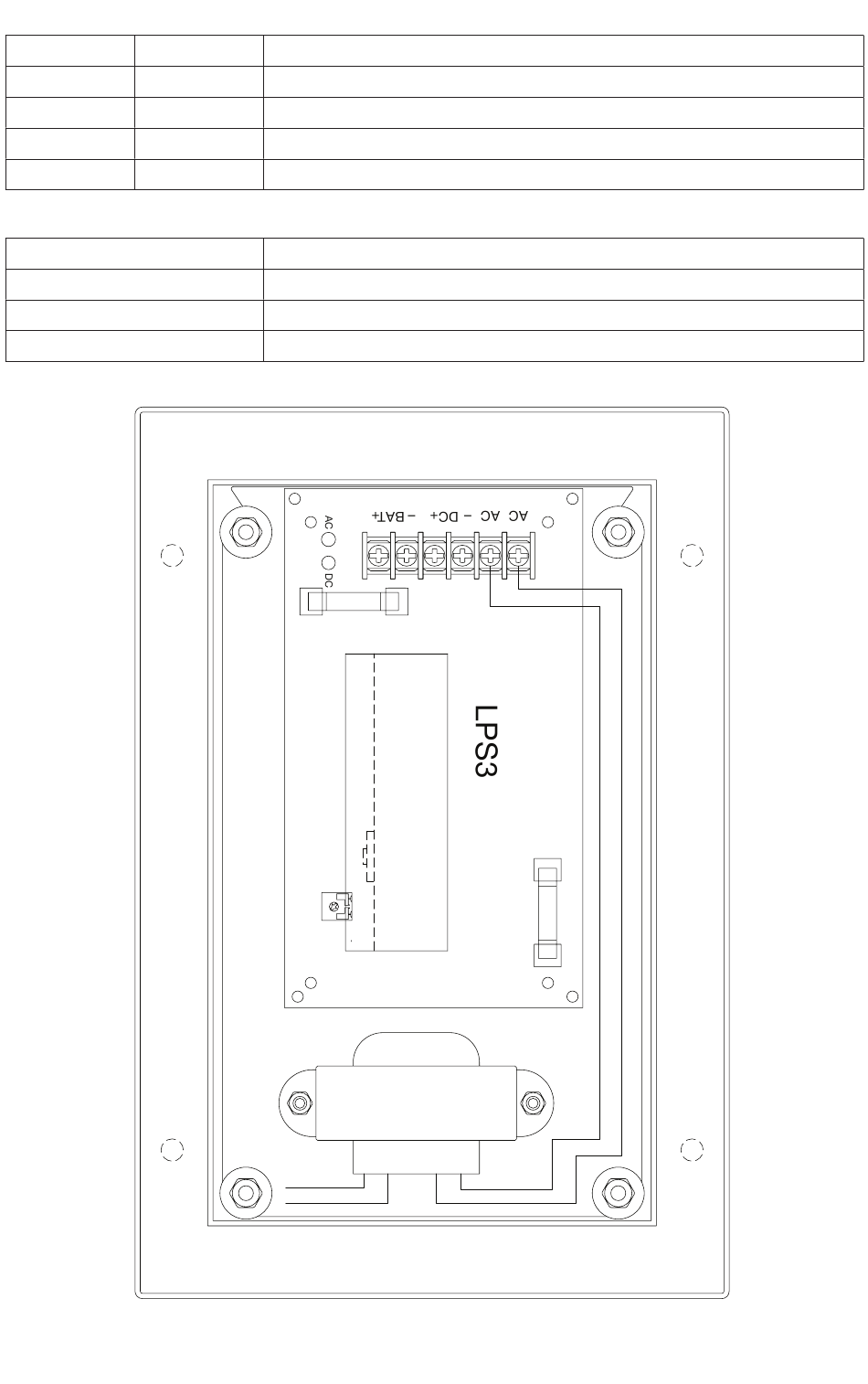

Fig. 2
- 2 -

LED Diagnostics:

Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery is supplying power.
No DC output.
Loss of AC. Discharged or no stand-by battery. No DC output.

Terminal Identification:

Function/Description
Low voltage AC input (16.5VAC 56VA). Altronix part #T1656220.
Stand-by battery connections.
12VDC @ 2.5A continuous output.
Input 220VAC,
50/60 Hz
LPS3WP12220 Installation Guide
