Altronix LPS5C24X Manual

Overview:

LPS5C24X linear power supply/charger will convert a 115VAC 50/60Hz input to a 3.5 amp 24VDC continuous true UPS
output. The output stays regulated until the battery discharges to 25% capacity.
Specifications:
Input:
• 115VAC 50/60Hz, 1.6 amp.
Output:
• 24VDC @ 3.5 amp.
• Filtered and electronically regulated.
• Thermal and overload protection and
with autoreset.
Battery Backup:
• Built in charger for sealed lead acid batteries.
• Automatic switchover to stand-by
battery when AC Fails.
• PTC battery protection.
• Maximum charge current .3 amp.
Visual Indicators:
• AC input and DC output LED indicators.
Supervision:
• Low battery and AC fail supervision
(dry relay outputs 1 amp @ 28VDC).
Additional Features:
• Includes battery leads.
Enclosure Dimensions:
13"H x 13.5"W x 3.25"D
Power Supply Voltage Output Specifications:
Output VDC Maximum Load DC
24VDC

Installation Instructions:

The LPS5C24X should be installed in accordance with The National Electrical Code and all applicable
Local Regulations.
1. Mount the LPS5C24X in desired location.
2. Connect AC power to the black and white flying leads of the transformer (Fig. 1). Connect green lead to the earth
ground. Use 18 AWG or larger for all power connections (Battery, DC output).
3. Measure output voltage before connecting devices. This helps avoid potential damage.
4. Connect devices to be powered to terminals marked [+ DC -- ] (Fig. 1).
5. Connect battery to terminals marked [+ BAT -- ] (Fig. 1) on the unit (battery leads included).
Note: When batteries are not used a loss of AC will result in loss of output voltage.
Terminal Identification:
Terminal Legend
AC/AC
+ BAT --
+ DC --
LPS5C24X
Linear Power Supply/Charger
3.5 amp
Function/Description
Low voltage AC input (12VAC 120VA). Altronix part #T24120.
Stand-by battery connections.
24VDC @ 3.5 amp continuous output.
Green
Lead
Wire
Strap
(from
Enclosure
to Door)
AC AC + BAT ---
Rev. 051105
XFMR Bracket
Black
Lead
X
F
White
M
Lead
R
Battery & AC
Green
Supervision
Lead
Circuit (Ground)
(power limited)
Battery connection (non-power limited)
---
+ +
Battery 1
Battery 1 Battery 2
12VDC 12VDC
4AH 4AH
Input 115VAC
50/60Hz
1.6 amp
---

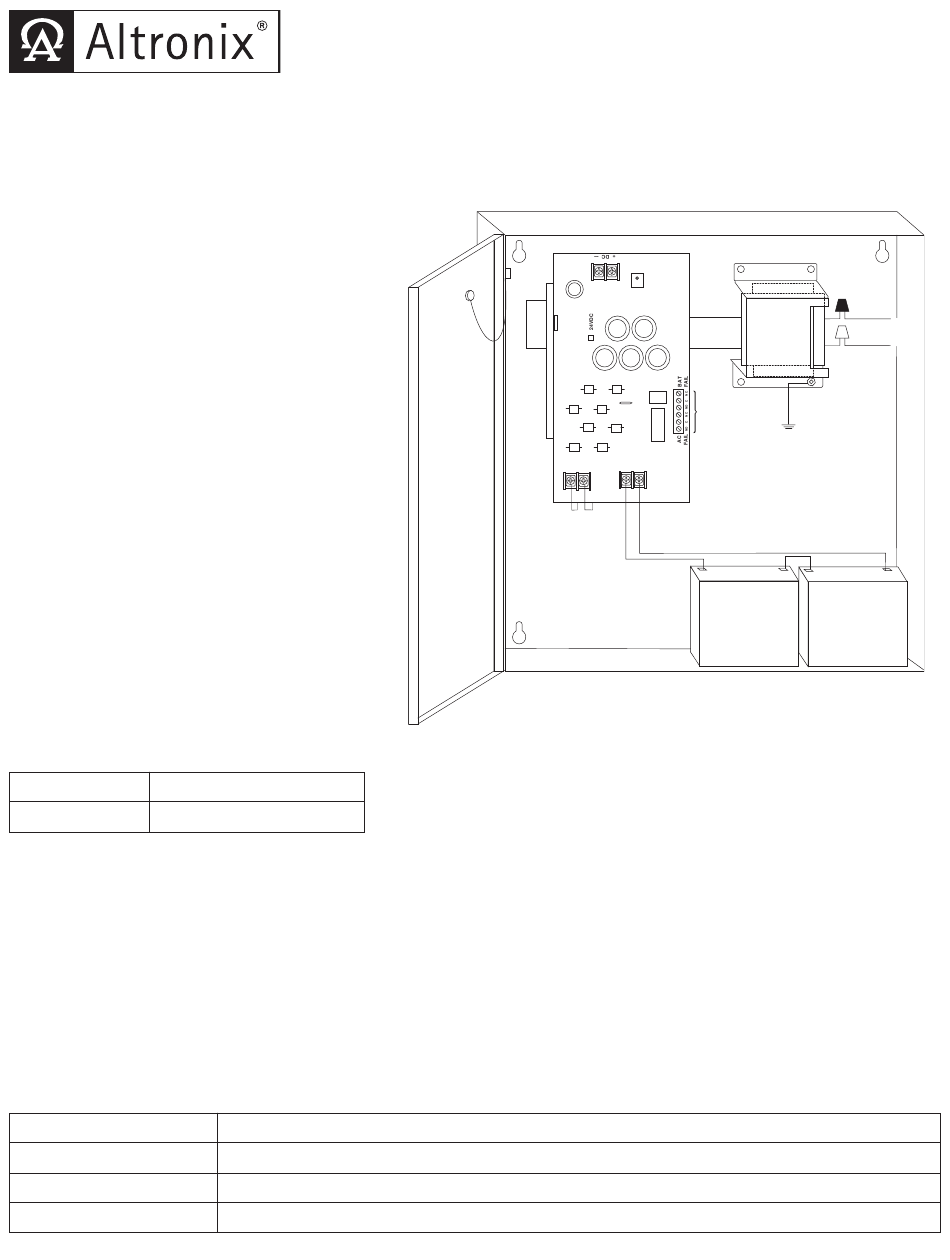

Fig. 1
