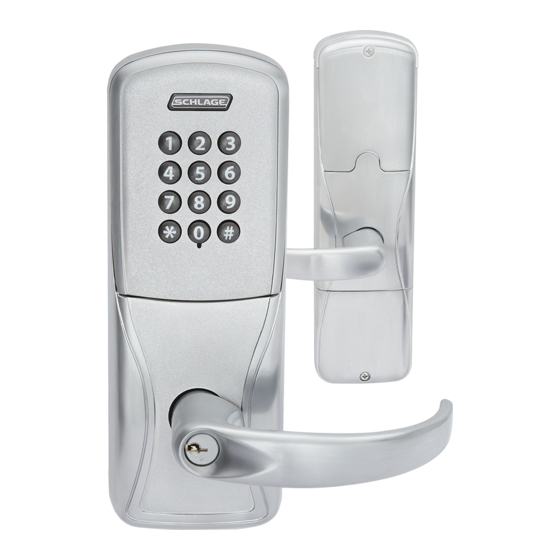

AD-Series
Lock
Re-Classing Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Allegion AD Series

Summary of Contents for Allegion AD Series

  • Page 1 AD-Series Lock Re-Classing Guide...

  • Page 2: Table Of Contents

    Schlage AD-Series Re-Classing Guide REV: 1.1 Table of Contents Introduction ......................3 Setup ........................4 Re-Class AD-200 to AD-250 .................. 12 Re-Class AD-200 to AD-300 (requires AD300 RS-485 Communication PCB) ..16 Re-Class AD-200 to AD-400 (requires AD400 RF Communication PCB & cover) . 20 Re-Class AD-250 to AD-200 ..................

  • Page 3: Introduction

    Schlage AD-Series Re-Classing Guide REV: 1.1 1 Introduction The AD-Series utilizes a modular architecture which allows for the re-classing of devices after leaving the factory and while in the field. Re-classing is the process by which an AD-Series device is able to change its hardware configuration and firmware programming in order to change the lock type from its factory condition.

  • Page 4: Setup

    Schlage AD-Series Re-Classing Guide REV: 1.1 2 Setup The following steps are the prerequisites to enable re-classing of an AD-Series device. NOTE: The re-classing procedures that follow in this document assume that these setup steps have already been performed. 2.1 Install a Credential Reader The credential reader is necessary for any AD-Series lock to communicate with the HHD.
  • Page 5 Schlage AD-Series Re-Classing Guide REV: 1.1 2.3 Upgrade the Schlage Utility Software (SUS) version on the Hand Held Device (HHD) 1. Open the SUS software on the HHD and make note of the SUS version number on the splash screen. 2.
  • Page 6 Schlage AD-Series Re-Classing Guide REV: 1.1 6. Under the “AD-Series Accessories” heading, choose to view the firmware/software files for the “Schlage Utility Software”. 7. In the SUS product box that appears toward the bottom of the page, compare the current SUS version with the one noted in step 1 above. 8.
  • Page 7 Schlage AD-Series Re-Classing Guide REV: 1.1 9. Then update the SUS version on the HHD following the instructions found in the “Schlage Utility Software Update Guide”. 2.4 Download the latest Firmware “Packaged” Files to the HHD Go to www.schlage.com/support to download the most current version of the AD- Series firmware package.
  • Page 8 Schlage AD-Series Re-Classing Guide REV: 1.1 6. For detailed instructions on how to transfer those files from a PC to the HHD see “Schlage Utility Software User Appendix B of the Guide”. This information can also be found on the same support site where the AD- Series firmware package was just found, steps 1 and 2, above.
  • Page 9 Schlage AD-Series Re-Classing Guide REV: 1.1 2.5 Couple AD-Series Device to HHD In order to upgrade the firmware and re-class any device, the HHD must be coupled with that device.  If the device has not been coupled with a HHD before, then the following steps must be completed prior to re-classing.
  • Page 10 Schlage AD-Series Re-Classing Guide REV: 1.1 holding the Schlage button press and release the LINK button three times within five seconds. Then release both buttons. The USB LED will begin to blink red and green to indicate the device has entered coupling mode. 5.
  • Page 11 Schlage AD-Series Re-Classing Guide REV: 1.1 o Gain access to the inside Push Button (remove inside cover) o Press and Hold the Schlage button for 10 – 15 seconds  Wait for two beeps and green LED flashing o Release the Schlage Button o Press the Inside Push Button (IPB) three (3) times (within 10 seconds) ...

  • Page 12: Re-Class Ad-200 To Ad-250

    Schlage AD-Series Re-Classing Guide REV: 1.1 3 Re-Class AD-200 to AD-250 1. Ensure that a mag reader is installed on the lock as the AD-250 is designed to work with ONLY magnetic readers. (With or without keypads) 2. Ensure that the lock is currently powered (by Alkaline AA batteries or auxiliary power). 3.
  • Page 13 Schlage AD-Series Re-Classing Guide REV: 1.1 7. Select “Change Lock Class”. 8. Select the most recent firmware package (see section 2.3), and click “Next”. NOTE: If the desired firmware package is not listed in the Change Lock Class screen above, ensure the current firmware package is located in the ROOT directory of the HHD.
  • Page 14 Schlage AD-Series Re-Classing Guide REV: 1.1 9. Choose “AD250” from the choices for desired lock class, and click “Ok”. 10. Select “Yes” when prompted to confirm the decision to change the lock class from AD- 200 to AD-250. 11. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-250 (including reader settings).
  • Page 15 Schlage AD-Series Re-Classing Guide REV: 1.1 13. The lock has now been re-classed into an AD-250. It will appear as “New Lock” on the SUS when connected. 14. In order to verify that the lock is now an AD-250, complete the following steps. a.

  • Page 16: Re-Class Ad-200 To Ad-300 (Requires Ad300 Rs-485 Communication Pcb)

    Schlage AD-Series Re-Classing Guide REV: 1.1 4 Re-Class AD-200 to AD-300 (requires AD300 RS-485 Communication PCB) 1. Remove the batteries from the lock. NOTE: An AD-300 will not use the AA Batteries in its final configuration so the battery cover can be placed back on the lock after the batteries are removed. 2.
  • Page 17 Schlage AD-Series Re-Classing Guide REV: 1.1 6. Attach HHD to lock via USB cable and connector. 7. Press the Schlage button twice to connect the HHD to the lock. NOTE: There may be user prompts at this point asking to retrieve the audit trail or to update the lock time.
  • Page 18 Schlage AD-Series Re-Classing Guide REV: 1.1 NOTE: If the desired firmware package is not listed, ensure it is located in the HHD ROOT directory. 11. Choose “AD300” from the choices for desired lock class, and click “Ok”. 12. Select “Yes” when prompted to confirm the decision to change the lock class from AD- 200 to AD-300.
  • Page 19 Schlage AD-Series Re-Classing Guide REV: 1.1 13. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-300 (including reader settings). 14.

  • Page 20: Re-Class Ad-200 To Ad-400 (Requires Ad400 Rf Communication Pcb & Cover)

    Schlage AD-Series Re-Classing Guide REV: 1.1 5 Re-Class AD-200 to AD-400 (requires AD400 RF Communication PCB & cover) 1. Remove the back electronics cover from the lock. 2. Install the radio communication board that comes with the COM400 kit by plugging the PCB into the connector found near the top of the inside escutcheon ensuring it is fully secured by snapping it into place in the stand-offs located at the top of the lock.
  • Page 21 Schlage AD-Series Re-Classing Guide REV: 1.1 5. Attach HHD to lock via USB cable and connector, and then press the Schlage button twice to connect the HHD to the lock. NOTE: There may be user prompts at this point asking to retrieve the audit trail or to update the lock time.
  • Page 22 Schlage AD-Series Re-Classing Guide REV: 1.1 8. Choose “AD400” from the choices for desired lock class, and click “Ok”. 9. Select “Yes” when prompted to confirm the decision: AD-200 to AD-400. 10. Wait for the SUS to finish updating the firmware on the lock, including reader settings. When complete, the lock will restore the factory default settings for an AD-400.
  • Page 23 Schlage AD-Series Re-Classing Guide REV: 1.1 11. When the firmware update is complete, the SUS will pop up a window to indicate success. Click “Ok” to close this window. (see below) 12. The lock has now been re-classed into an AD-400. It will appear as “AD400” on the SUS when connected.

  • Page 24: Re-Class Ad-250 To Ad-200

    Schlage AD-Series Re-Classing Guide REV: 1.1 6 Re-Class AD-250 to AD-200 1. Ensure that the lock is currently powered (by alkaline batteries or auxiliary power). 2. Log in to the SUS application as Manager. 3. Attach HHD to lock via USB cable and connector. 4.
  • Page 25 Schlage AD-Series Re-Classing Guide REV: 1.1 6. Select “Change Lock Class”. 7. Select the most recent firmware package (see section 2.3), click “Next”. Then choose “AD200” from the choices for desired lock class, and click “Ok”. NOTE: If the desired firmware package is not listed, ensure it is located in the ROOT directory of the HHD.
  • Page 26 Schlage AD-Series Re-Classing Guide REV: 1.1 8. Confirm your intention to change the lock class from AD250 to AD200 9. Wait for the SUS to finish updating the firmware on the lock and reader. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-200.
  • Page 27 Schlage AD-Series Re-Classing Guide REV: 1.1 11. The lock has now been re-classed into an AD-200. It will appear as “New Lock” on the SUS when connected. 12. In order to verify the lock status, select “Device Options”, then select “Lock Properties” and verify that the model is now listed as “AD200”.

  • Page 28: Re-Class Ad-250 To Ad-300 (Requires Ad300 Rs-485 Communication Pcb)

    Schlage AD-Series Re-Classing Guide REV: 1.1 7 Re-Class AD-250 to AD-300 (requires AD300 RS-485 Communication PCB) 1. Remove and properly store the alkaline AA batteries from the lock. NOTE: An AD300 will not use the AA Batteries in its final configuration so the battery cover can be placed back on the lock after the batteries are removed.
  • Page 29 Schlage AD-Series Re-Classing Guide REV: 1.1 6. Attach the HHD to lock via USB cable and connector. 7. Press the Schlage button twice to connect the HHD to the lock. NOTE: There may be user prompts at this point asking to retrieve the audit trail or to update the lock time.
  • Page 30 Schlage AD-Series Re-Classing Guide REV: 1.1 10. Select the most recent firmware package (see section 2.3 for further detail), and click “Next”. NOTE: If the desired firmware package is not listed, ensure it is located in the HHD ROOT directory. 11.
  • Page 31 Schlage AD-Series Re-Classing Guide REV: 1.1 13. When the firmware update is complete, the SUS will pop up a window to indicate success. Click “Ok” to close this window. 14. The lock has now been re-classed into an AD-300. It will appear as “AD300” on the SUS when connected.

  • Page 32: Re-Class Ad-250 To Ad-400 (Requires Ad400 Rf Communication Pcb & Cover)

    Schlage AD-Series Re-Classing Guide REV: 1.1 8 Re-Class AD-250 to AD-400 (requires AD400 RF Communication PCB & cover) 1. Remove the back electronics cover from the lock. 2. Install the radio communication board that comes with the COM400 kit by plugging the PCB into the connector found near the top of the inside escutcheon ensuring it is fully secured by snapping it into place in the stand-offs located at the top of the lock.
  • Page 33 Schlage AD-Series Re-Classing Guide REV: 1.1 6. When connected the door name will appear at the bottom of the screen if the lock has been programmed before or “New Lock” will appear if the door has not been programmed. Once the lock is connected, select “Device Options”. - OR - 7.
  • Page 34 Schlage AD-Series Re-Classing Guide REV: 1.1 8. Choose “AD400” from the choices for desired lock class, and click “Ok”. 9. Select “Yes” when prompted to confirm the lock class change from AD-250 to AD-400. 10. Wait for the SUS to finish updating the firmware on the lock and reader. When complete the lock will reset and restore the factory default settings for an AD-400.
  • Page 35 Schlage AD-Series Re-Classing Guide REV: 1.1 11. When the firmware update is complete, the SUS will pop up a window to indicate success. Click “Ok” to close this window. 12. The lock has now been re-classed into an AD-400. It will appear as “AD400” on the SUS when connected.

  • Page 36: Re-Class Ad-300 To Ad-200 (Requires A Battery Holder And Aa Alkaline Batteries)

    Schlage AD-Series Re-Classing Guide REV: 1.1 9 Re-Class AD-300 to AD-200 (requires a battery holder and AA alkaline batteries) 1. Leave the RS-485 communication board installed. 2. Ensure that the lock is properly powered through the RS-485 board. NOTE: Power supply must be capable of sourcing at least 250 mA at 12 or 24 V. 3.
  • Page 37 Schlage AD-Series Re-Classing Guide REV: 1.1 7. Select “Change Lock Class”. 8. Select the most recent firmware package (see section 2.3), then click “Next”. Choose “AD200” from the choices for desired lock class, and click “Ok”. 9. Select “Yes” when prompted to confirm the decision to change the lock class from AD- 300 to AD-200.
  • Page 38 Schlage AD-Series Re-Classing Guide REV: 1.1 10. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-200 (including reader settings). 11.
  • Page 39 Schlage AD-Series Re-Classing Guide REV: 1.1 13. Remove the back electronics cover from the lock and carefully unplug the RS-485 board and associated wires from the RS Communication Board. NOTE: The lock will lose power when the RS485 Comm board is removed. RS-485 Comm.

  • Page 40: Re-Class Ad-300 To Ad-250 (Requires A Battery Holder And Aa Alkaline Batteries)

    Schlage AD-Series Re-Classing Guide REV: 1.1 10 Re-Class AD-300 to AD-250 (requires a battery holder and AA alkaline batteries) 1. Ensure that a mag reader is installed on the lock as the AD-250 is designed to work with mag reader types. (ONLY) 2.
  • Page 41 Schlage AD-Series Re-Classing Guide REV: 1.1 8. Select “Change Lock Class”. 9. Select the most recent firmware package (see section 2.3), and click “Next” NOTE: If the desired firmware package is not listed, ensure it is located in the HHD ROOT directory.
  • Page 42 Schlage AD-Series Re-Classing Guide REV: 1.1 11. Select “Yes” when prompted to confirm the decision to change the lock class from AD- 300 to AD-250. 12. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-250 (including reader settings).
  • Page 43 Schlage AD-Series Re-Classing Guide REV: 1.1 13. When the firmware update is complete, the SUS will pop up a window to indicate success. Click “Ok” to close this window. 14. The lock has now been re-classed into an AD-250. It will appear as “New Lock” on the SUS when connected.
  • Page 44 Schlage AD-Series Re-Classing Guide REV: 1.1 16. Carefully remove the RS-485 board and associated wires from the lock. NOTE: the lock will lose power when this board is removed RS-485 Comm. Module Installed RS-485 Comm. Module Removed Auxiliary Power Screw Terminals 17.

  • Page 45: Re-Class Ad-300 To Ad-400 (Requires A Battery Holder, Aa Alkaline Batteries And A Ad400 Rf Communication Pcb With Cover)

    Schlage AD-Series Re-Classing Guide REV: 1.1 11 Re-Class AD-300 to AD-400 (requires a battery holder, AA alkaline batteries and a AD400 RF Communication PCB with cover) 1. Leave the RS-485 communication board installed. 2. Ensure that the lock is properly powered through the RS-485 board. NOTE: Power supply must be capable of sourcing at least 250 mA at 12 or 24 V.
  • Page 46 Schlage AD-Series Re-Classing Guide REV: 1.1 7. Select “Change Lock Class”. 8. Select the most recent firmware package (see section 2.3), and click “Next”. NOTE: If the desired firmware package is not listed, ensure it is located in the HHD ROOT directory.
  • Page 47 Schlage AD-Series Re-Classing Guide REV: 1.1 9. Choose “AD400” from the choices for desired lock class, and click “Ok”. 10. Select “Yes” when prompted to confirm the decision to change the lock class from AD- 300 to AD-400. Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...
  • Page 48 Schlage AD-Series Re-Classing Guide REV: 1.1 11. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-400 (including reader settings). 12.
  • Page 49 Schlage AD-Series Re-Classing Guide REV: 1.1 14. Remove the RS-485 board and associated wires from the lock NOTE: The lock will lose power when the RS485 Comm board is removed. RS-485 Comm. Module Installed RS-485 Comm. Module Removed 15. Install the radio communication board that comes with the COM400 kit by plugging the PCB into the connector found near the top of the inside escutcheon.
  • Page 50 Schlage AD-Series Re-Classing Guide REV: 1.1 18. The lock has now been re-classed into an AD-400. Press the Schlage button twice to connect to the SUS and the device will appear as “AD400” on the SUS when connected. 19. Install the battery cover on the lock. 20.

  • Page 51: Re-Class Ad-400 To Ad-200 (Requires A Com200 Cover)

    Schlage AD-Series Re-Classing Guide REV: 1.1 12 Re-Class AD-400 to AD-200 (requires a COM200 cover) 1. Remove the back electronics cover from the lock. 2. Carefully remove the radio communication board. Radio Comm. Module Removed Radio Comm. Module Installed 3. Ensure that the lock is properly powered by 4 or 8 alkaline battery pack or auxilary power.
  • Page 52 Schlage AD-Series Re-Classing Guide REV: 1.1 7. When connected “AD400” will appear at the bottom of the screen. 8. Once the lock is connected, select “Device Options”. 9. Select “Change Lock Class”. Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...
  • Page 53 Schlage AD-Series Re-Classing Guide REV: 1.1 10. Select the most recent firmware package (see section 2.3), and click “Next”. NOTE: If the desired firmware package is not listed, ensure it is located in the HHD ROOT directory. 11. Choose “AD200” from the choices for desired lock class, and click “Ok”. 12.
  • Page 54 Schlage AD-Series Re-Classing Guide REV: 1.1 13. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-200 (including reader settings). 14.
  • Page 55 Schlage AD-Series Re-Classing Guide REV: 1.1 15. The lock has now been re-classed into an AD-200. It will appear as “New Lock” on the SUS when connected. 16. In order to verify that the lock is now an AD-200, complete the following steps. ‘ a.

  • Page 56: Re-Class Ad-400 To Ad-250 (Requires A Com200 Cover)

    Schlage AD-Series Re-Classing Guide REV: 1.1 13 Re-Class AD-400 to AD-250 (requires a COM200 cover) 1. Ensure that a mag reader is installed on the lock as the AD-250 is designed to work with mag reader types. 2. Remove the back cover from the lock. Radio Comm.
  • Page 57 Schlage AD-Series Re-Classing Guide REV: 1.1 7. Press the Schlage button twice to connect the HHD to the lock. 8. When connected “AD400” will appear at the bottom of the screen. Once the lock is connected, select “Device Options”. 9. Select “Change Lock Class”. Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...
  • Page 58 Schlage AD-Series Re-Classing Guide REV: 1.1 10. Select the most recent firmware package (see section 2.3), and click “Next”. NOTE: If the desired firmware package is not listed, ensure it is located in the HHD ROOT directory. 11. Choose “AD250” from the choices for desired lock class, and click “Ok”. Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...
  • Page 59 Schlage AD-Series Re-Classing Guide REV: 1.1 12. Select “Yes” when prompted to confirm the decision to change the lock class from AD- 400 to AD-250. 13. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-250 (including reader settings).
  • Page 60 Schlage AD-Series Re-Classing Guide REV: 1.1 15. The lock has now been re-classed into an AD-250. It will appear as “New Lock” on the SUS when connected. 16. In order to verify that the lock is now an AD-250, complete the following steps. a.

  • Page 61: Re-Class Ad-400 To Ad-300 (Requires Ad300 Rs-485 Communication Pcb)

    Schlage AD-Series Re-Classing Guide REV: 1.1 14 Re-Class AD-400 to AD-300 (requires AD300 RS-485 Communication PCB) 1. Remove the batteries from the lock. NOTE: An AD300 will not use the AA Batteries in its final configuration so the battery cover can be placed back on the lock after the batteries are removed. 2.
  • Page 62 Schlage AD-Series Re-Classing Guide REV: 1.1 5. Provide power to the lock through the RS-485 communication board by making connections to the “VIN” and “GND” connections on the RS-485 comm. module. NOTE: Power supply must be capable of sourcing at least 250 mA at 12 or 24 V. 6.
  • Page 63 Schlage AD-Series Re-Classing Guide REV: 1.1 10. Select “Change Lock Class”. 11. Select the most recent firmware package (see section 2.3 for further detail), and click “Next”. NOTE: If the desired firmware package is not listed, ensure it is located in the HHD ROOT directory.
  • Page 64 Schlage AD-Series Re-Classing Guide REV: 1.1 12. Choose “AD300” from the choices for desired lock class, and click “Ok”. 13. Select “Yes” when prompted to confirm the decision to change the lock class from AD- 400 to AD-300. Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...
  • Page 65 Schlage AD-Series Re-Classing Guide REV: 1.1 14. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for an AD-300 (including reader settings). 15.
  • Page 66 Schlage AD-Series Re-Classing Guide REV: 1.1 16. The lock has now been re-classed into an AD-300. It will appear as “AD300” on the SUS when connected. 17. Install the AD-300 back electronics cover that comes with the COM300 Kit. NOTE: The AD-300 cover is metal and shorter than the original AD-400 cover. Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...

  • Page 67: Re-Class Wri400 To Ct5000

    Schlage AD-Series Re-Classing Guide REV: 1.1 15 Re-Class WRI400 to CT5000 1. Remove the top cover from the WRI400. NOTE: The label on the lid will no longer be a valid when the device is re-classed as it applies only to a WRI400. For a printable version of the CT5000 lid label see page 23 of the user guide.
  • Page 68 Schlage AD-Series Re-Classing Guide REV: 1.1 4. Log in to the SUS application as Manager. 5. Attach HHD to the WRI400 via USB cable and connector. NOTE: The WRI400 will communicate/connect automatically, once the SUS is detected. Plug in USB cable here Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...
  • Page 69 Schlage AD-Series Re-Classing Guide REV: 1.1 6. When connected “WRI400” will appear at the bottom of the screen. Once the lock is connected, select “Device Options”. 7. Select “Change Lock Class”. 8. Select the most recent firmware package (see section 2.3), and click “Next”. If the desired firmware package is not listed, ensure it is located in the ROOT directory of the HHD.
  • Page 70 Schlage AD-Series Re-Classing Guide REV: 1.1 9. Choose “CT5000” from the choices for desired lock class, and click “Ok”. 10. Select “Yes” when prompted to confirm the decision to change the lock class from WRI400 to CT5000. Contact Technical Support for any questions concerning this Technical Application Note 1-877-671-7011 Option 2 –...
  • Page 71 Schlage AD-Series Re-Classing Guide REV: 1.1 11. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for a CT5000. 12. When the firmware update is complete, the SUS will pop up a window to indicate success.
  • Page 72 Schlage AD-Series Re-Classing Guide REV: 1.1 13. The device has now been re-classed into a CT5000. It will appear as “New Lock” on the SUS when connected. 14. In order to verify that the lock is now a CT5000 perform the following steps. First select “Device Options”, then select “Lock Properties”...

  • Page 73: Re-Class Ct5000 To Wri400 (Requires Ad-Series Rf Communication Module)

    Schlage AD-Series Re-Classing Guide REV: 1.1 16 Re-Class CT5000 to WRI400 (requires AD-Series RF Communication Module) 1. Remove the top cover from the CT5000. NOTE: The label on the lid will no longer be a valid when the device is re-classed as it applies only to a CT5000.
  • Page 74 Schlage AD-Series Re-Classing Guide REV: 1.1 4. Log in to the SUS application as Manager. 5. Attach HHD to CT5000 via USB connector, the CT5000 will connect automatically once the SUS is detected. NOTE: There may be user prompts at this point asking to retrieve the audit trail or to update the lock time.
  • Page 75 Schlage AD-Series Re-Classing Guide REV: 1.1 6. When connected the door name will appear at the bottom of the screen if the CT5000 has been programmed before or “New Lock” will appear if the door has not been programmed. Once the lock is connected, select “Device Options”. - OR - 7.
  • Page 76 Schlage AD-Series Re-Classing Guide REV: 1.1 8. Select the most recent firmware package (see section 2.3), and click “Next”. NOTE: If the desired firmware package is not listed, ensure it is located in the ROOT directory of the HHD. 9. Choose “WRI400” from the choices for desired lock class, and click “Ok”. 10.
  • Page 77 Schlage AD-Series Re-Classing Guide REV: 1.1 11. Wait for the SUS to finish updating the firmware on the lock. When the firmware update is complete the lock will reset and restore the factory default settings for a WRI400. 12. When the firmware update is complete, the SUS will pop up a window to indicate success.
  • Page 78 Schlage AD-Series Re-Classing Guide REV: 1.1 13. The device has now been re-classed into a WRI400. It will appear as “WRI400” on the SUS when connected. 14. Re-install the top cover on the WRI400. NOTE: Remember to replace the lid label with a new WRI400 version, for future reference.
