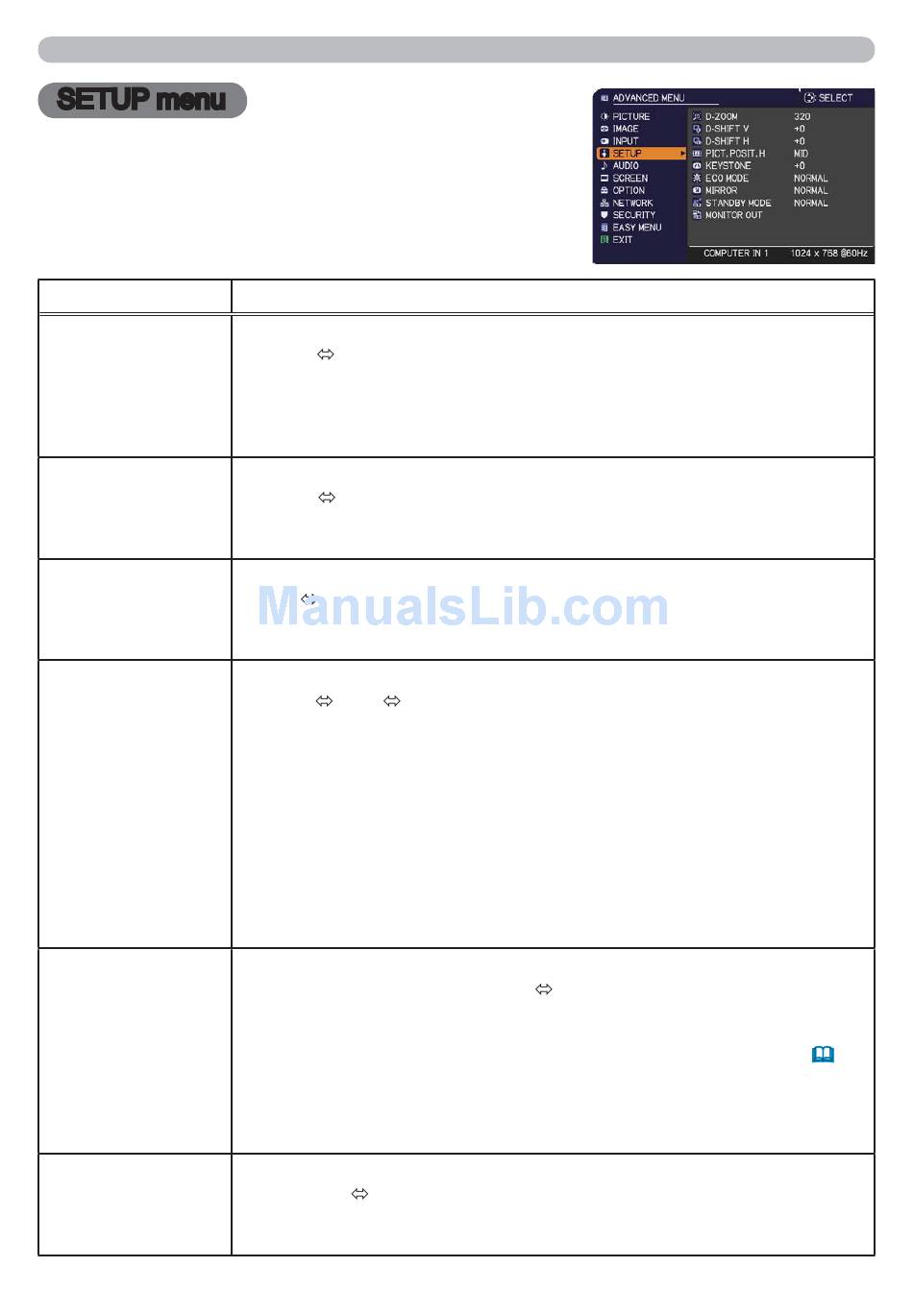

SETUP menu

SETUP menu
From the SETUP menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons, and press
the ► cursor (or the ENTER) buttonn to execute the item.
Then perform it according to the following table.
Item
D-ZOOM
D-SHIFT V
D-SHIFT H
PICT. POSIT. H
KEYSTONE
ECO MODE
(continued on next page)
38
Using the ◄/► cursor buttons adjusts the magnification ratio.
Small Large
• The on-screen menu might be displayed outside of the image display
area depending on the adjustment value of the ASPECT, D-ZOOM
and KEYSTONE. Changing the values of ASPECT, D-ZOOM and
KEYSTONE may fix the symptom.
Using the ◄/► cursor buttons adjusts the vertical picture position.
Down Up
• The D-SHIFT adjustment values are not valid when the D-ZOOM is
set to 320 (full screen).
Using the ◄/► cursor buttons adjusts the horizontal picture position.
Left Right
• The D-SHIFT adjustment values are not valid when the D-ZOOM is
set to 320 (full screen).
Using the ▲/▼ cursor buttons selects the horizontal picture position.
LEFT MID RIGHT
The PICTURE POSITION is not changed if any of the following cases apply.
• The ASPECT is set to 16:9 or 16:10.
• The input signal has an aspect ratio of 16:9, 16:10 or vertically smaller
than 16:10, while ASPECT is set to NORMAL.
• Horizontal size of the displayed image is full on the effective display
area, while the ASPECT is set to NATIVE.
• One of the following messages is displayed on the screen:
"NO INPUT IS DETECTED"
"SYNC IS OUT OF RANGE"
"INVALID SCAN FREQ."
• The BLANK or TEMPLATE function is selected.
Using the ◄/► cursor buttons corrects the vertical keystone distortion.
Shrink the bottom of the image
• The adjustable range of this function will vary among inputs. For some
input, this function may not work well.
• This function will be unavailable when the Transition Detector is on (
• The on-screen menu might be displayed outside of the image display
area depending on the adjustment value of the ASPECT, D-ZOOM
and KEYSTONE. Changing the values of ASPECT, D-ZOOM and
KEYSTONE may fix the symptom.
Using the ▲/▼ cursor buttons turns off/on the eco mode.
NORMAL ECO
• When the ECO is selected, acoustic noise and screen brightness are
reduced.
Description
Shrink the top of the image
63).
