You can specify the number of seconds between samples. You can begin logging data at power up, when you
press the data logging button, or at a specific date and time.
Data is stored on the memory card in binary files. After logging measurements, you can transfer the files to your
computer. You can use InstaCal to convert the files to
format for use in other applications.

Functional block diagram

USB-5203 functions are illustrated in the block diagram shown here.
format for use in Microsoft Excel files, or to
.csv

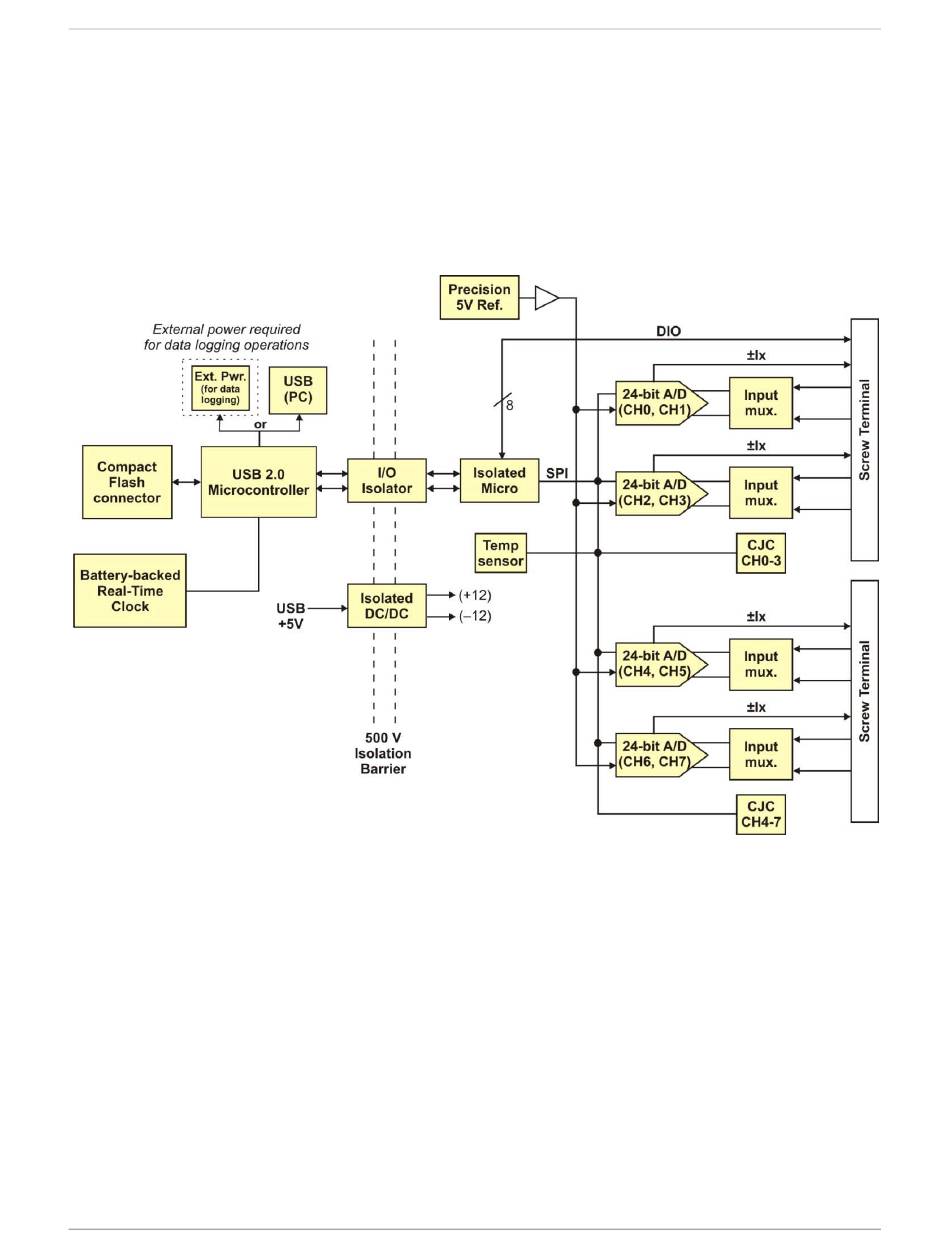

Figure 1. Functional block diagram
7
Introducing the USB-5203
.txt
