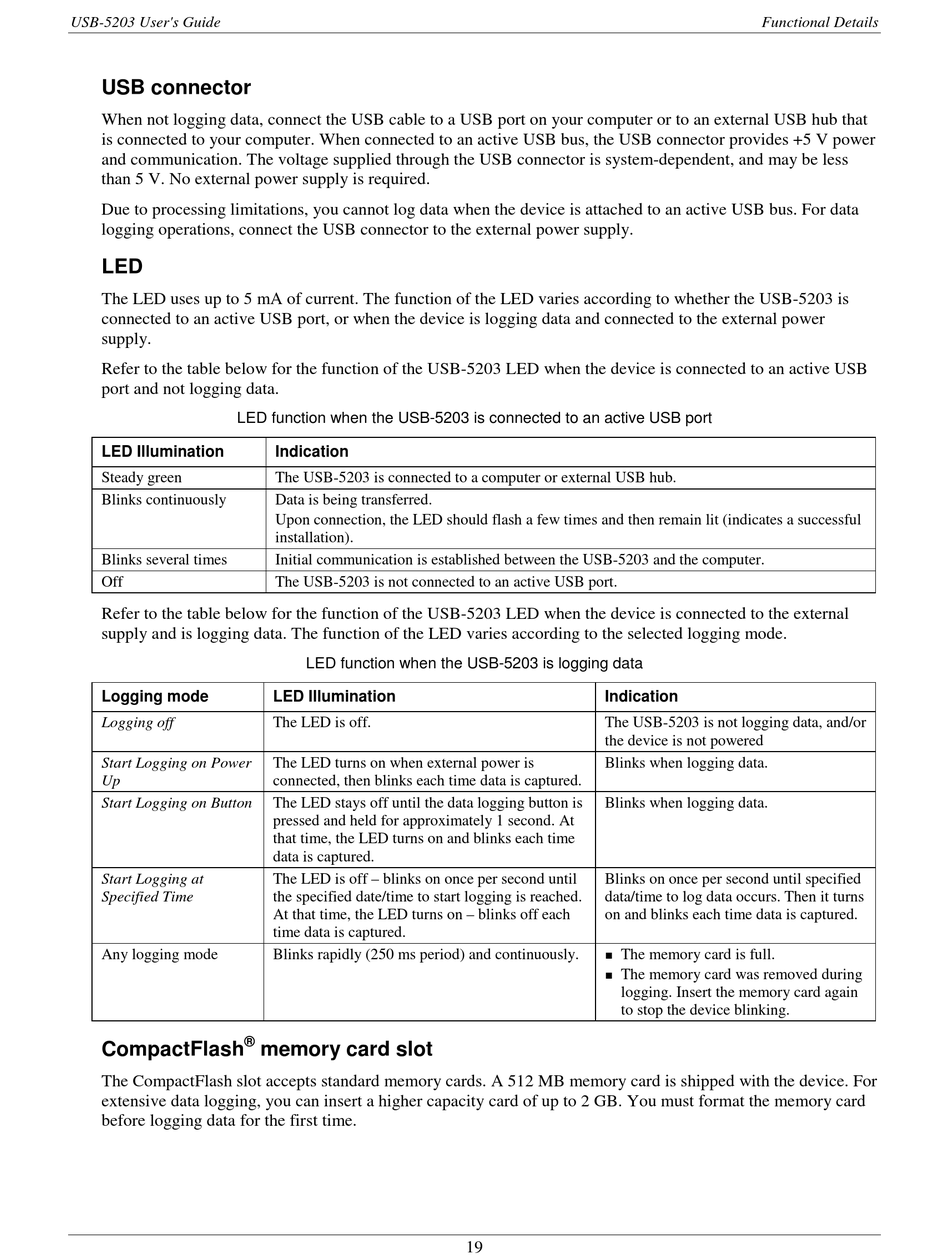

USB-5203 User's Guide

USB connector

When not logging data, connect the USB cable to a USB port on your computer or to an external USB hub that
is connected to your computer. When connected to an active USB bus, the USB connector provides +5 V power
and communication. The voltage supplied through the USB connector is system-dependent, and may be less
than 5 V. No external power supply is required.
Due to processing limitations, you cannot log data when the device is attached to an active USB bus. For data
logging operations, connect the USB connector to the external power supply.

LED

The LED uses up to 5 mA of current. The function of the LED varies according to whether the USB-5203 is
connected to an active USB port, or when the device is logging data and connected to the external power
supply.
Refer to the table below for the function of the USB-5203 LED when the device is connected to an active USB
port and not logging data.
LED function when the USB-5203 is connected to an active USB port
LED Illumination
Steady green
Blinks continuously
Blinks several times
Off
Refer to the table below for the function of the USB-5203 LED when the device is connected to the external
supply and is logging data. The function of the LED varies according to the selected logging mode.
Logging mode
Logging off
Start Logging on Power
Up
Start Logging on Button
Start Logging at
Specified Time
Any logging mode
®
CompactFlash
The CompactFlash slot accepts standard memory cards. A 512 MB memory card is shipped with the device. For
extensive data logging, you can insert a higher capacity card of up to 2 GB. You must format the memory card
before logging data for the first time.
Indication
The USB-5203 is connected to a computer or external USB hub.
Data is being transferred.
Upon connection, the LED should flash a few times and then remain lit (indicates a successful
installation).
Initial communication is established between the USB-5203 and the computer.
The USB-5203 is not connected to an active USB port.
LED function when the USB-5203 is logging data
LED Illumination
The LED is off.
The LED turns on when external power is
connected, then blinks each time data is captured.
The LED stays off until the data logging button is
pressed and held for approximately 1 second. At
that time, the LED turns on and blinks each time
data is captured.
The LED is off – blinks on once per second until
the specified date/time to start logging is reached.
At that time, the LED turns on – blinks off each
time data is captured.
Blinks rapidly (250 ms period) and continuously.
memory card slot
Indication
The USB-5203 is not logging data, and/or
the device is not powered
Blinks when logging data.
Blinks when logging data.
Blinks on once per second until specified
data/time to log data occurs. Then it turns
on and blinks each time data is captured.
The memory card is full.

The memory card was removed during

logging. Insert the memory card again
to stop the device blinking.
19
Functional Details
