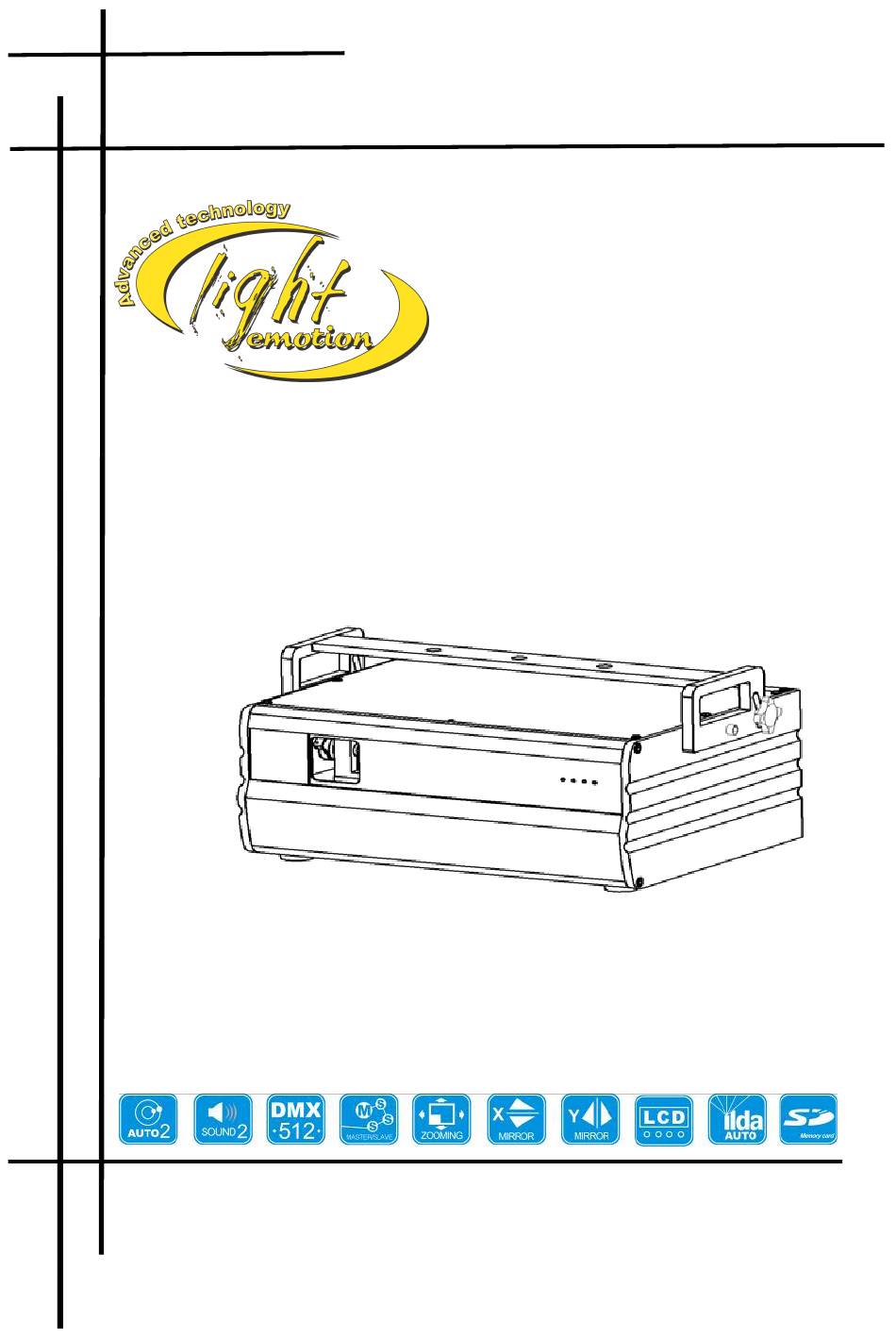

Phantomrgb1700
VERSION:SD 2.0
This manual contains im portant la ser s ystem sa fety and operation
information. Read and understand all i nstructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Light Emotion Phantomrgb1700
Summary of Contents for Light Emotion Phantomrgb1700
- Page 1 Phantomrgb1700 VERSION:SD 2.0 This manual contains im portant la ser s ystem sa fety and operation information. Read and understand all i nstructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking...
- Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pa y clo se atte ntion to each safety RE MARK an d WARNING st atement in th e u ser man ual. Read all in structions carefully BEFORE operating this device.
-
Page 3: Laser Safety Warnings
USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these Instructions carefully, which include important information about installation, safe use and service! Caution Avoid direct e ye co ntact w ith laser 了 light. Nev er intentionally e xpose your eyes or othe rs to dire ct la ser radiation. -
Page 4: Stop And Read All Laser Safety Data
USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser light is different from any other light source witch you may be familiar. The light from this product can potentially cause eyes injury if not set up and used properly. -
Page 5: Laser Exposure Warning
USER MANUAL After set up, and prior to public use test laser to ensure proper function. Do not use if any defect is detected. Do not use if laser emits only one or two laser beams rather than dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow emission of higher laser levels. -
Page 6: Laser Safety Label Reproductions
USER MANUAL LASER SAFETY LABEL REPRODUCTIONS This is only one laser aperture on this product. The label Indicates laser beam output aperture Caution – Class 4 LASER RADIATION, WHEN OPEN, AVOID EXPOSURE BEAM LASER EMISSION DATA Laser Classification Class 4 Red Laser Medium LD GaAlAs 650nm, typical Green Laser Medium... -
Page 7: Laser Compliance Statement
USER MANUAL LASER COMPLIANCE STATEMENT This laser product complies with EN/IEC 60825-1 Ed 2,2007-03. GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to Be qualified. Follow the instructions of this manual. CAUTION! Be c areful with y our ope rations. With a hig h voltage you can su ffer a d angerous electric sh ock when touching the wires! This device has left out premises in absolutely perfect condition. - Page 8 USER MANUAL Always disconnect from the mains, when the devise is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. It is essential to connect the yellow/green conductor to earth. ...
-
Page 9: Before Operation
USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. -
Page 10: Dmx-512 Connection Between Fixtures
USER MANUAL channel is used solely for a 0% to 100% switch. Before applying power to a fixture, check that the source voltage matches the fixture’s requirement. The unit is supplied with a power plug appropriate to its voltage and destination. - Page 11 USER MANUAL Building a serial DMX-chain If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter cables.
- Page 12 USER MANUAL Proper Laser Set Up & Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor.
-
Page 13: Rigging The Fixture
USER MANUAL Rigging the Fixture CAUTION! Please co nsider th e resp ective n ational no rms d uring the installation! The installation must only be carried out by an authorized employee or dealers! The installation of the fixture has to be built and constructed in a way that it ... -
Page 14: Product Overview
USER MANUAL PRODUCT OVERVIEW This device has left out premise in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. The manufacturer will not accept liability for any resulting damages caused by ... -
Page 15: Front Panel
USER MANUAL Front Panel NAME FUNCTION 1 POW Main power indicated LED. Red is ON. 2 MUSIC Synchronize to detected music signal aser output Laser output aperture. ANDING BAND Product handing band HANGING with 2 knobs on both sides to fasten the unit BRACKET and a mounting hole to fix a mounting hook. - Page 16 USER MANUAL Rear Panel NAME FUNCTION witch Switch on and off the power 7 Main s input With socket and integrated fuse holder ILDA / Hardware Setting Music, ILDA, Patterns Setting Urgent and safe switch Switch off the laser manually if error occurs SD card Storage RAM SD MMC storage RAM (less than 2G) 11 K...
- Page 17 USER MANUAL ILDA / Hardware Setting Panel NAME FUNCTION Turn the knob to adjust the audio respond 16 MUSIC sensitivity. 17 X SIZE The Size of X axis adjustment 18 Y SIZE The Size of Y axis adjustment 19 ILD A THROUGH Standard ILDA DB25 Output(through) 20 ILD...
-
Page 18: Control & Function
USER MANUAL IMPOR TANT For your own safely and full laser safety Re gulation, we do strongly recommend You to take this optional switch! CONTROL & FUNCTION Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. -
Page 19: Operation
USER MANUAL Mode Option, to choose the operating mode of laser. Confirmation, to confirm the laser to show the present mode at the next operation. UP/DOWN, to change operating mode, parameter or DMX address. OPERATION... - Page 20 USER MANUAL AUTO SHOW 1 Press FUNC to enter MODE OPTION Till to AUTO SHOW 1 shown on LCD monitor. The laser is set at AUTO SHOW 1 standalone mode and it will play the preprogrammed show until next setting is changed. AUTO SHOW 1 is fast and hot show which is better for DISCO.
- Page 21 USER MANUAL MUSIC SHOW 2 Press FUNC to enter MODE OPTION Till to MUSIC SHOW 2 shown on LCD monitor. The laser is set at MUSIC SHOW 2 standalone mode and it will play the preprogrammed show until next setting is changed. MUSIC SHOW 2 is slow and soft show which is better for MUSIC BAR.
- Page 22 USER MANUAL In folder ANIMA folder, there are 3 ild file show. They are ANIMA1.ild, ANIMA2.ild, ANIMA3.ild. If you want t o do a preprogram sho w with them, you should do the TXT files as: ANIMA1.ild,12,3 ANIMA2.ild,20,1 ANIMA3.ild,18,4 Save this TXT file with name ANIMA.TXT, change the file name from ANIMA.TXT to ANIMA.PRG IMPORTANT NOTES: “A NIMA1.ild”...
- Page 23 USER MANUAL SLAVE MODE Press FUNC to enter MODE OPTION Till to SLAVE shown on LCD monitor. Connect MASTER and SLAVE lasers with DMX cable. The SLAVE lasers are in SLAVE MODE. Check XLR Co ntrol cab le co nnection section for your reference.
-
Page 24: Dmx Channels Chart
USER MANUAL DMX Channels Chart Several optio nal ope rating mode s were pre programmed s et into this laser projector at DMX ch annel 1. Befo re control other DMX ch annels, please be sure that the channel 1 was set in proper mode (value). DMX CHANNEL 1 CHART CHANNEL VALUE... - Page 25 USER MANUAL 000-010 NO strobing CH 3 011-199 Strobing from slow to fast Strobe 200-255 Strobing to Sound 000-125 X position 126-185 Moving from slow to fast 186-225 Moving with random speed X Moving 226-245 Random position 246-255 Sound to random position 000-125 Y position 126-185...
- Page 26 USER MANUAL 075-104 Clipping out 105-144 Clipping in 145-184 Clipping out and in 185-224 Clipping on 224-255 Clipping off 000-009 Original pattern CH11 010-199 Wave effect in pattern with speed control WAVE 200-255 Wave effect in pattern with amplitude control 000-016 White 018-033...
- Page 27 USER MANUAL PATTERN LIST 000-050 051-101 102-152 153-203 204-254...
-
Page 28: Laser Power
USER MANUAL LASER POWER : 1000mW-R+300mW-G+400mW-B SPECIFICTAIONS Mains Input: AC100~240V, 50/60Hz Fuse: 250V /1.6A Slow Blow (20mm Glass) Total Power: X/Y Axis Beam Angle: ±20° Music Control: Audio / Sound Activated Laser Classification: Class 4 Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40℃...
