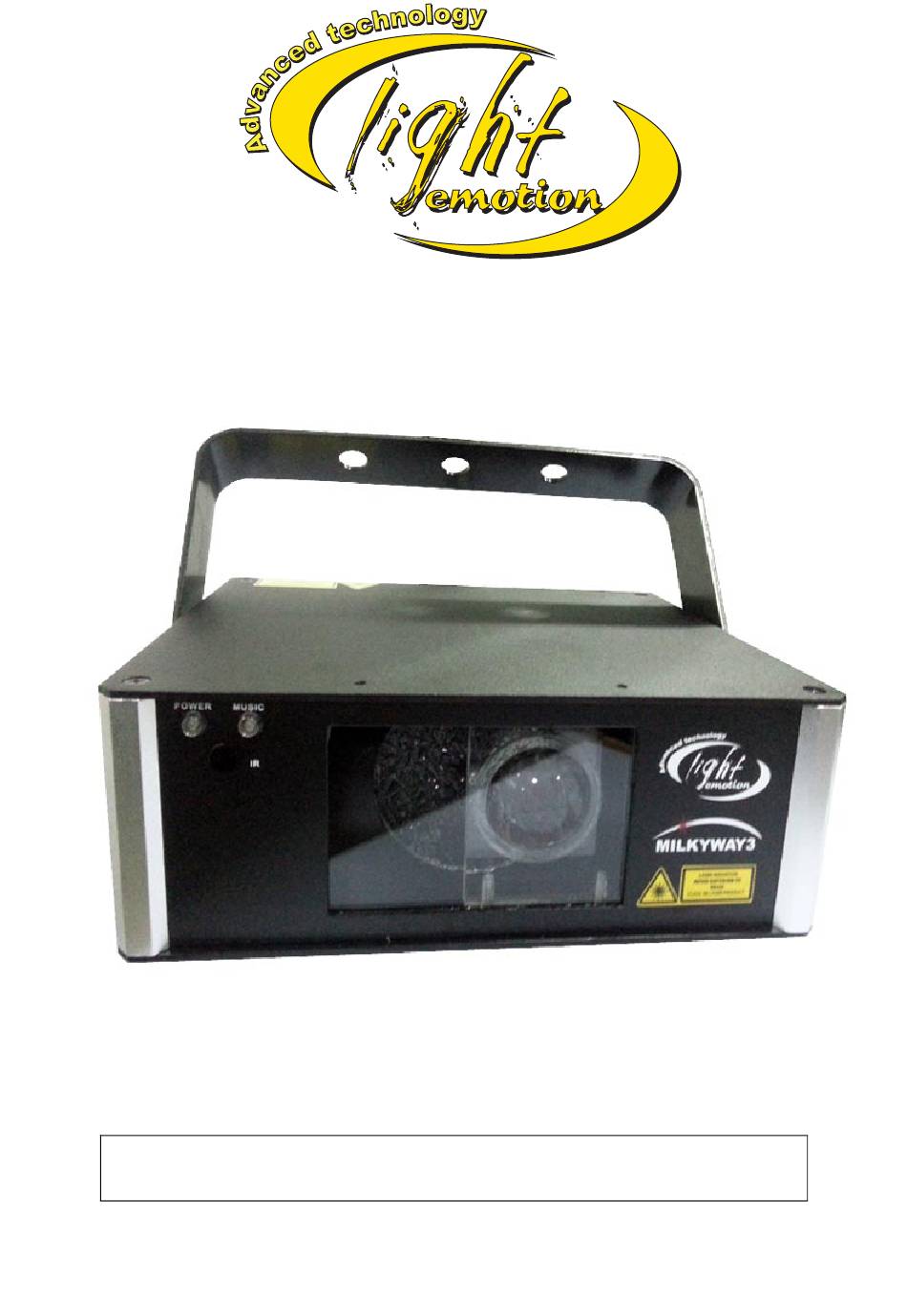

- Page 1 MILKYWAY3 User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
- Page 2 Introduction Thanks for choosing our laser device, believing this brand new product will bring you unlimited marvel and happiness. Before operating this device, please read this manual thoroughly, and retain it for future reference. CAUTION Please read this manual fully before installing or operating this product as it contains important safety information relating to its installation and operation.
- Page 3 Unpacking Please check the contents to ensure that the product has been received in good condition. Laser x 1 unit I.R. remote control x1 pc IEC Power Lead x 1pc Safety Keys x2pcs If you find any accessory is missing or the product has arrived with any problems, please contact your retailer at once. This product contains no user-serviceable parts so make no attempt to try to fix or modify this item yourself as this will invalidate the warranty.
-
Page 4: Front Panel
Replacing the fuse First disconnect from the mains power supply then remove the fuse holder above the IEC Socket to reveal the fuse. Replace with the correct fuse rating as stated on the product or in the user manual. Then lock the fuse holder cover back into place. General maintenance Be sure to power off the fixture before conducting maintenance. -
Page 5: Control Panel Options
Control panel The control panel and display allow the user to adjust settings as follows… Press MODE to navigate through the options Press ENTER to select an option and adjust value using UP and DOWN buttons Press ENTER again to confirm setting Control panel options Display Mode... - Page 6 Stand-alone modes THE laser can operate in stand-alone mode one of 3 ways: Auto or Sound-activated Automatic fast Show / / Stand Alone mode (Auto) 1 Press the function button (MODE) to enter Mode options 2 Press the function button until the LED panel shows Auto 3 Press the Enter button to confirm the setting The laser will now be working in Automatic fast / Stand Alone mode Automatic slow Show / Stand Alone mode (Auto) 1 Press the function button (MODE) to enter Mode options...
-
Page 7: Remote Control Mode
Microphone sensitivity In sound-activated mode, the sensitivity of the internal microphone can be adjusted via the control panel. To set the sensitivity level, do the following… Remote control mode The laser can be operated using the supplied handheld infra-red remote control. To use this remote control, firstly, remove the plastic tab at the bottom of the remote to activate the internal battery. -
Page 8: Dmx Parameters
DMX parameters CHANNEL CONTROL 000-050 DMX MODE 051-100 Automatic fast CH 1 CONTROL MODE 101-150 Automatic slow 151-255 Sound mode 000-004 Black out 005-028 Red on 029-056 Green on 057-084 Red on & Green on 085-112 Green strobing COLOR SELECTION 113-140 Red strobing 141-168... -
Page 9: Specifications
Specifications Model MILKYWAY3 Power supply 100-240Vac, 50/60Hz(IEC) Power consumption Fuse rating T1A 250V(20mm glass) Red laser power 100mw 650nm Green laser power 50mw 532nm Laser class Blue LED power 455nm 3W Amber LED power 600nm 3W White led POWER 6500K 3W...
