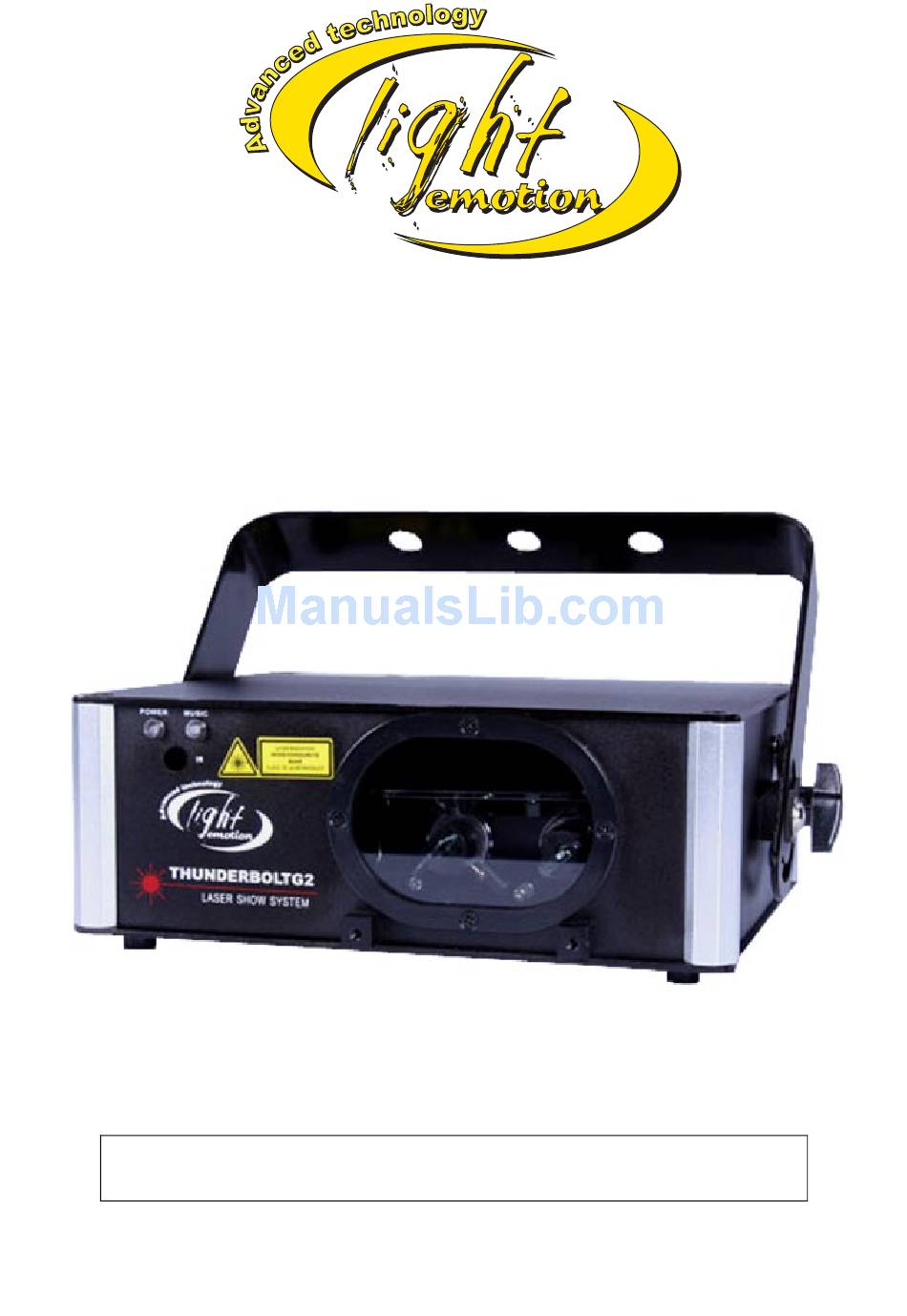

THUNDERBOLTG2
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Light Emotion thunderboltg2
Summary of Contents for Light Emotion thunderboltg2
- Page 1 THUNDERBOLTG2 User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
- Page 2 Introduction Thanks for choosing our laser device, believing this brand new product will bring you unlimited marvel and happiness. Before operating this device, please read this manual thoroughly, and retain it for future reference. CAUTION Please read this manual fully before installing or operating this product as it contains important safety information relating to its installation and operation.
- Page 3 Vertical cross sectional view Unpacking Please check the contents to ensure that the product has been received in good condition. Laser x 1 unit I.R. remote control x1 pc IEC Power Lead x 1pc Safety Keys x2pcs If you find any accessory is missing or the product has arrived with any problems, please contact your retailer at once.
- Page 4 Connecting to mains, earth wire (ground) must be connected. Use the supplied IEC lead to connect to the main power supply as follows: Wire Connection International symbol Brown Live Blue Neutral Yellow/Cyan Earth For your safety, please kindly pay attention to all of the warnings below: Always plug in the power plug last and disconnect from the mains when the device is not in use or before cleaning.
- Page 5 Replacing the fuse First disconnect from the mains power supply then remove the fuse holder above the IEC Socket to reveal the fuse. Replace with the correct fuse rating as stated on the product or in the user manual. Then lock the fuse holder cover back into place.
- Page 6 Control panel The control panel and display allow the user to adjust settings as follows… Press MODE to navigate through the options Press ENTER to select an option and adjust value using UP and DOWN buttons Press ENTER again to confirm setting ...
-
Page 7: Dmx Mode
Master/Slave mode Press the function button (MODE) to enter Mode options Press the function button until the LED panel shows SLA Press the Enter button to confirm the setting The laser will now be working in Slave mode To create a Master/Slave chain of units, one laser has to be designated as the Master unit whilst the remaining units have to be set as Slave units. -
Page 8: Dmx Parameters
DMX Parameters 000-063 BLACK OUT 063-127 AUTO SHOW CH 1 CONTROL MODE 128-191 MUSIC SHOW 192-255 DMX MODE 0-255 Split 32 patterns GOBOS 0-127 100%-5% 128-169 Zoom out mode ZOOM 170-209 Zoom in mode 210-255 Zoom out and Zoom in mode 000-127 0-359 Degree 128-255... - Page 9 Specifications Model THUNDERBOLTG2 Green 50mW DPSS 532nm Laser level Class 3B Laser Dimensions 225x185x80mm Weight 2 KG Power supply 100-240Vac, 50/60Hz(IEC) consumption Fuse rating 250V 1 A Slow Blow (20mm Glass) Operating temperature 10-40 ℃ Channel Range Remote control battery CR2025 button cell Important: This product conformed to Laser &...
