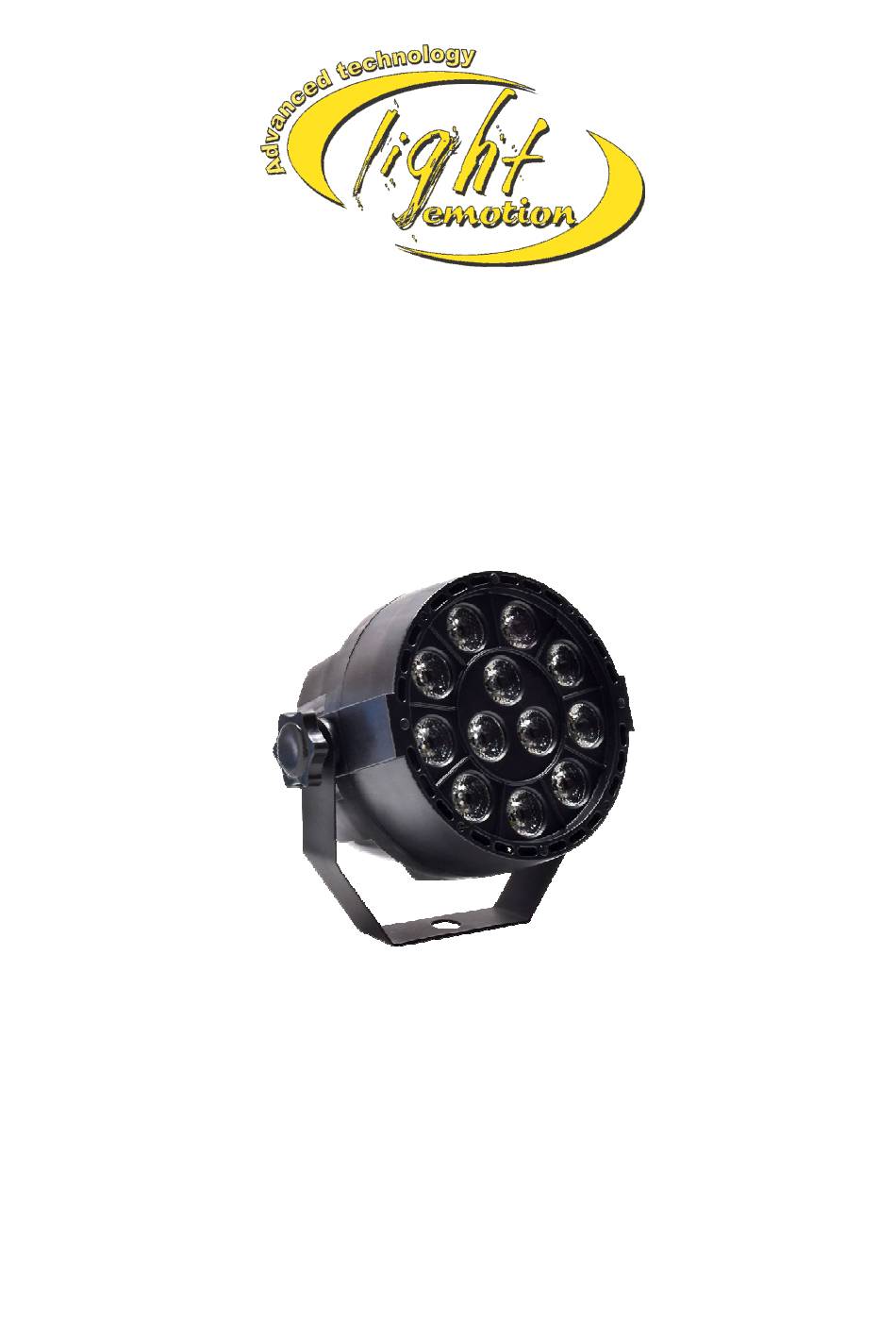

www.lightemotion.com.au
VIVID0312
Compact LED Wash Light with IR Remote
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.02
Advertisement
Related Manuals for Light Emotion VIVID0312
Summary of Contents for Light Emotion VIVID0312
- Page 1 VIVID0312 Compact LED Wash Light with IR Remote User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
- Page 2 Introduction Thank you for the purchase of your VIVID0312 compact LED par can by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Light Emotion Party Range product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems.
- Page 3 4. Product Operation The VIVID0312 is a compact LED wash light that can produce a multitude of colours using the mixing of red, green and blue colours built into each 3-in-1 LED. You can set the product to output a single static colour or use the included series of built in running patterns and sequences that utilize the 12 LEDs to produce different colours, chasing effects, strobing effects and fading effects.
- Page 4 The VIVID0312 can be controlled via the onboard 4 button LED display control or via DMX control using a DMX controller (not included) and the DMX inputs connections. This section of the manual details accessing the features of the products by those various means.
- Page 5 4d DMX Table Channel Value Function Ch 1 0-10 Ch4 – Ch7 Manual Control 11-50 A1 Colour Function 51-100 A2 Colour change 101-150 A3 Colour Fade 151-200 A4 Sound Activation 201-255 A5 Strobing patterns Ch 2 0-39 7 Colour Recycle 40-59 60-79 Green...
- Page 6 6. DMX Address Setting When being used in conjunction with a DMX controller, each fixture must be set a specific starting address. When receiving signal, fixture will receive channel control signals of this address from the DMX controller. For simplicity, the user can use the same address for multiple fixtures but this will result in each fixture providing exactly the same output and fixtures with the same DMX address cannot be individually controlled.
- Page 7 Purchased from:_________________________________________ Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2016. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 sales@lswonline.com.au www.lightemotion.com.au 1800 643 111 (within Australia)
