Light Emotion LEDBAR1803 User Instruction Manual

Outdoor 1m led bar 18 x 3w 3-in-1 rgb leds
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.lightemotion.com.au

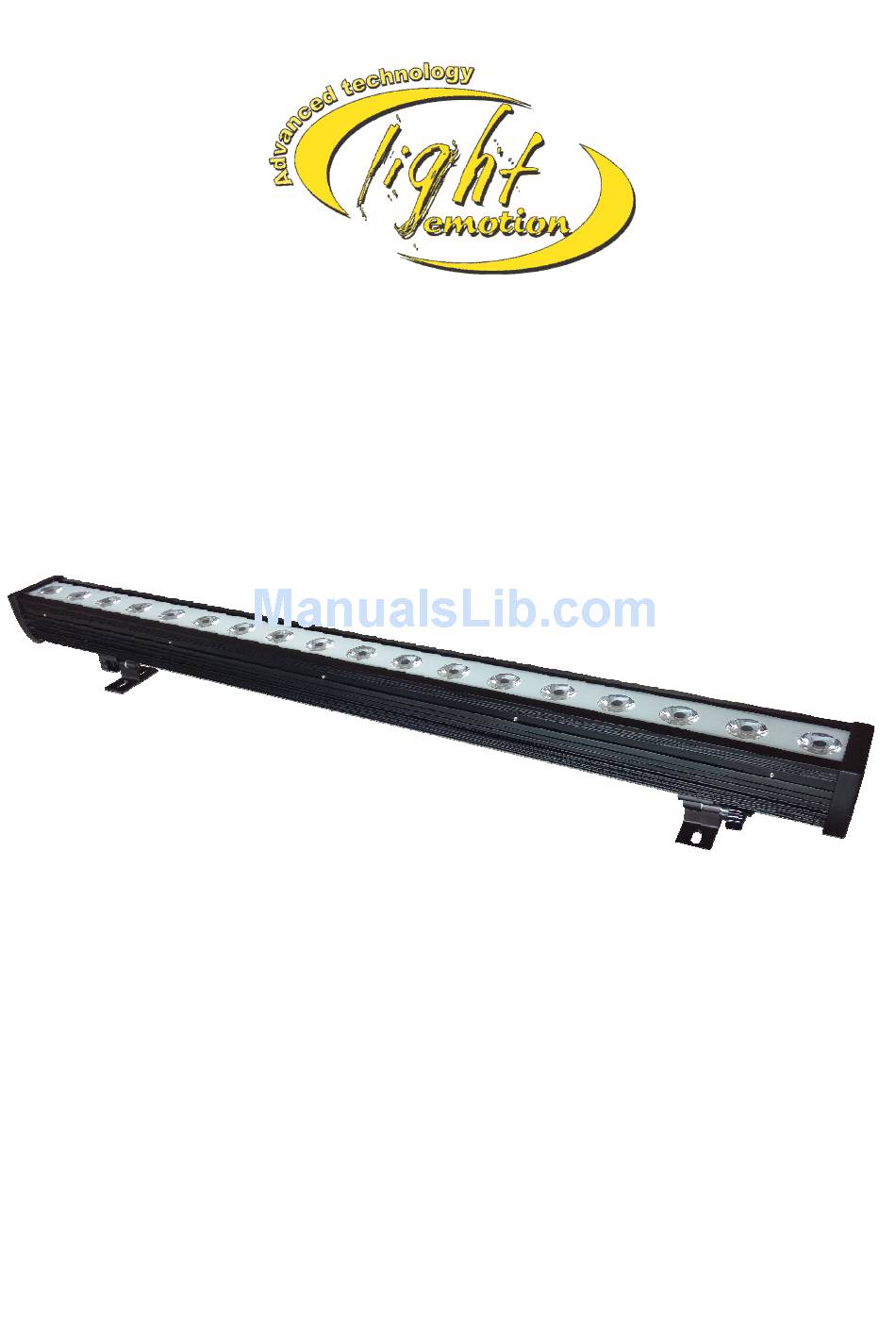

LEDBAR1803
Outdoor 1m LED Bar 18 x 3W 3-in-1 RGB LEDs
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.00

Advertisement

Table of Contents
loading

Related Manuals for Light Emotion LEDBAR1803

Summary of Contents for Light Emotion LEDBAR1803

  • Page 1 LEDBAR1803 Outdoor 1m LED Bar 18 x 3W 3-in-1 RGB LEDs User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions 2. Installation 3. Features 4. Menu Operation 5. DMX Tables 5a. 2 Channel Mode 5b. 3 Channel Mode 5c. 4 Channel Mode 5d. 6 Channel Mode 5e. 7 Channel Mode 5f. 9 Channel Mode 5g. 18 Channel Mode 5h.

  • Page 3: Safety Instructions

    Introduction Thank you for the purchase of your LEDBAR1803 Outdoor 1m LED bar with 18 x 3w 3-in-1 LEDs by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Professional Light Emotion product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems.

  • Page 4: Installation

    - In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. - Make sure power cord is never crimped or damaged.

  • Page 5: Menu Operation

    4. Menu Operation Used for setting up or operating the product without DMX control Menu: Press each time to access features – see table below. UP: Increase setting DOWN: Decrease setting Enter: Confirm and save setting. Menu Table: Show Value Function DMX512 starting address d001...

  • Page 6: Dmx Tables

    5. DMX Channel Allocation and functions tables. There are 10 different DMX profiles for this fixture. This allows the user to use simple overall control over fewer DMX channels or for the user to individually control each individual feature of the light over many more channels. You must choose the DMX mode/profile prior to setting up with DMX.

  • Page 7: 5C. 4 Channel Mode

    5c. Four Channel DMX Mode Function Channel DMX Value RGB Total Dimming, From dark to light 000-255 Red Dimming, From dark to light 000-255 Green Dimming, From dark to light 000-255 Blue Dimming, From dark to light 000-255 5d. Six Channel DMX Mode Function Channel DMX Value...

  • Page 8: 5F. 9 Channel Mode

    182-192 Red shade effect 193-203 Green shade effect 204-214 Blue shade effect 215-225 Pink shade effect 226-236 Yellow shade effect 237-247 Loops red to yellow shade effect 248-255 Sound active 000-255 SPEED FROM SLOW TO FAST 5f. Nine Channel DMX Mode Function Channel DMX Value...

  • Page 9: 5H. 54 Channel Mode

    13-15# Red Dimming, From dark to light CH13 000-255 13-15# Green Dimming, From dark to light CH14 000-255 13-15# Blue Dimming, From dark to light CH15 000-255 16-18# Red Dimming, From dark to light CH16 000-255 16-18# Green Dimming, From dark to light CH17 000-255 16-18# Blue Dimming, From dark to light...
  • Page 10 9# Green Dimming, From dark to light CH26 000-255 9# Blue Dimming, From dark to light CH27 000-255 10# Red Dimming, From dark to light CH28 000-255 10# Green Dimming, From dark to light CH29 000-255 10# Blue Dimming, From dark to light CH30 000-255 11# Red Dimming, From dark to light...

  • Page 11: 5I. 56 Channel Mode

    5i. 56 Channel DMX Mode Function Channel DMX Value RGB Total Dimming, From dark to light 000-255 RGB Strobe, SPEED FROM SLOW TO FAST 007-255 1# Red Dimming, From dark to light 000-255 1# Green Dimming, From dark to light 000-255 1# Blue Dimming, From dark to light 000-255...
  • Page 12 10# Blue Dimming, From dark to light CH32 000-255 11# Red Dimming, From dark to light 000-255 CH33 11# Green Dimming, From dark to light CH34 000-255 11# Blue Dimming, From dark to light CH35 000-255 12# Red Dimming, From dark to light CH36 000-255 12# Green Dimming, From dark to light...

  • Page 13: Dmx Connection

    6. DMX-512 Control Connection Using a 3 pin XLR cable, you can connect the product to a DMX controller and then to other fixtures with 3 pin XLR inputs and outputs. When not using DMX, multiple fixtures can be connected together and operate under master/slave control. The signal cable should have two core with shielded cable, the signal connectors are XLR input and output connectors.

  • Page 14: Dmx Terminator

    8. DMX Terminator: A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to control more accurately. It should be plugged in to the last fixture in any chain. For Terminator connections please see below: 9.

  • Page 15: Warranty

    We recommend you register your warranty online at www.industrygear.com.au. Purchased from:_________________________________________ Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2016. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 sales@lswonline.com.au www.lightemotion.com.au 1800 643 111 (within Australia)
