PARBAR
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
1 of 9 pages

Advertisement

Table of Contents
loading

Related Manuals for Light Emotion PARBAR

Summary of Contents for Light Emotion PARBAR

  • Page 1 WWW.LIGHTEMOTION.COM.AU PARBAR User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...

  • Page 2: What Is Included

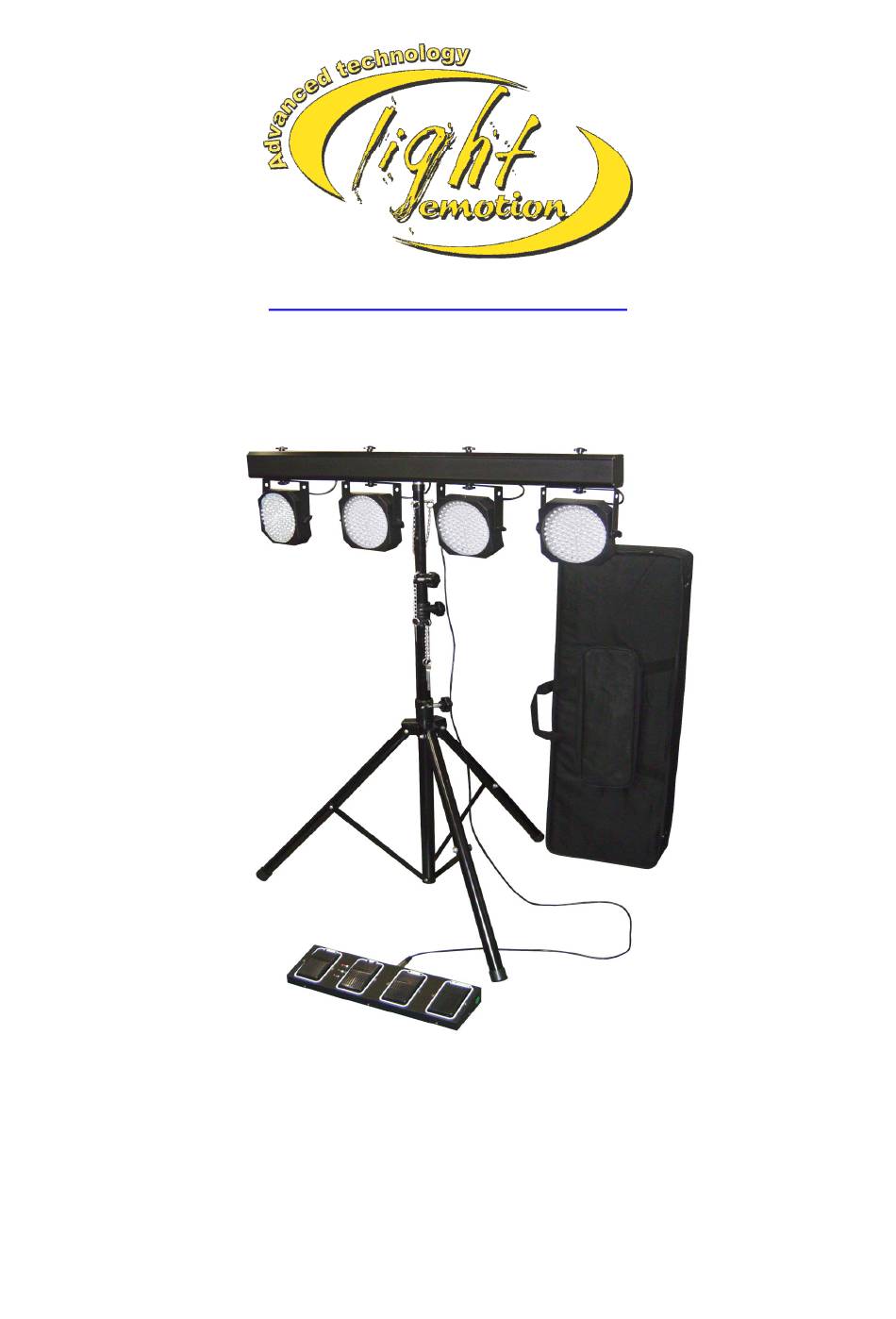

    Congratulations on the purchase of your PARBAR by Light Emotion. The PARBAR consists of 4 x LED RGB heads mounted on a T-Bar, with sturdy lighting stand, foot controller and compact carry case included. There’s full DMX control and sound active microphone built in.

  • Page 3: Operation Mode

    • In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. •...
  • Page 4 Built-in programs (P01-P14) 01. STATIC - Blackout (BLA), Red(R) Yellow (RG) Green (G) Cyan (GB) Blue (B) Col:XXX FlashXX Purple (BR) White (RGB) - Flash speed adjustable (00 to 99) 02. DREAM - Seven color dream mode SpeedXX FlashXX - Speed & Flash adjustable (00 to 99) 03.

  • Page 5: Dmx Mode

    DMX Mode The unit has 6CH, 9CH and 15CH DMX channel modes. 6CH mode DMX chart: CH 1 CH 2 0-10 blackout 11-21 Master dimmer Flash Green Blue (0-255) (0-255) (0-255) (0-255) (0-255) 22-32 Red 33-43 Yellow 44-54 Green 55-65 Cyan 66-76 Blue 77-87 Purple 88-98 White...
  • Page 6 9CH mode DMX chart: CH 1 CH 2 0-10 blackout 11-21 Master Flash Green Blue Green Blue dimmer (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) Spot Spot Spot Spot Spot Spot 1& 2 1& 2 1& 2 3& 4 3&...
  • Page 7 You can control the spots individually via your DMX controller. 15CH mode DMX chart: CH 1 CH 2 CH10 CH11 CH12 CH13 CH14 CH15 0-10 blackout Master Green Blue Green Blue Green Blue Green Blue Flash 11-21 dimmer (0-255) (0-255) (0-255) (0-255) (0-255)

  • Page 8: Slave Mode

    MODE DOWN BLACK OUT 1. Press MODE switch for first time, the R LED indicator light up, PARBAR goes to static color selection mode. Via UP/DOWN switches to select the desired color. 2. Press MODE for the second time, the G LED indicator light up, PARBAR goes to sound active mode.

  • Page 9: Specification

    SPECIFICATION: • Power supply: AC240V. 50Hz • Power consumption: Max. 50W • LED: 432pcs 10mm LED (R144, G144, B144) Each spot has 108pcs LED • DMX: 6CH, 9CH &15CH mode • DMX-512 connection: 3-pin XLR • Foot controller connection: 5-pin XLR •...
