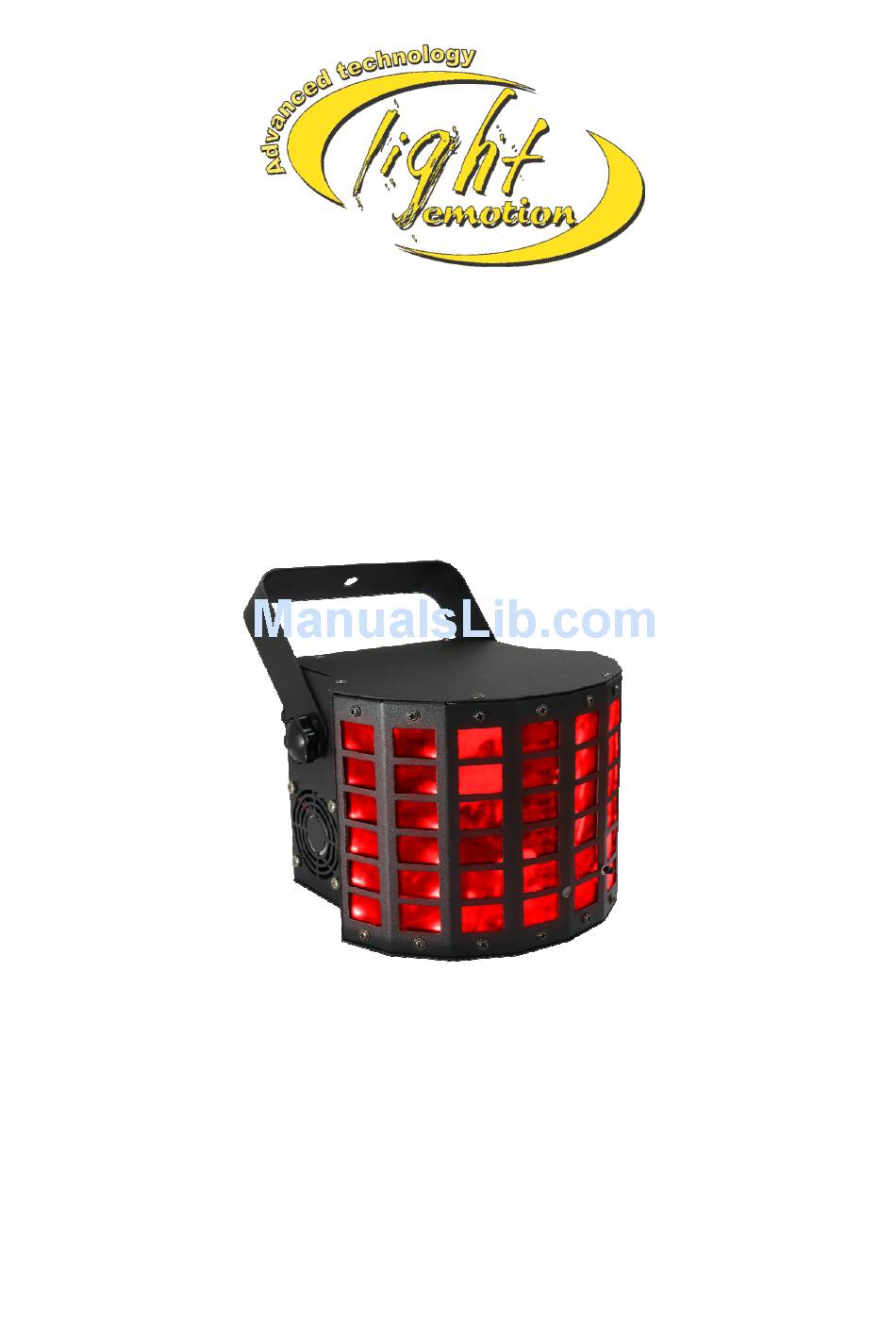

DERBY2
2-in-1 Laser and Derby Effect.
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
Advertisement
Table of Contents
Related Manuals for Light Emotion DERBY2
Summary of Contents for Light Emotion DERBY2
- Page 1 DERBY2 2-in-1 Laser and Derby Effect. User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2. Installation 3. Features 4. Remote Control Operation 5. Menu Operation 6. DMX Table 7. DMX Address Setting 8. DMX Terminator 9. Rigging 10. Cleaning and Maintenance 11. Technical Data 12. Warranty... -
Page 3: Safety Instructions
Introduction Thank you for the purchase of your DERBY2 2-in-1 Laser and Derby effect by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Professional Light Emotion product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems. -
Page 4: Installation
- Never disconnect power cord by pulling or tugging on the cord. - Never carry the fixture directly from the cord. Carry by holding the base of the unit, and only move when unit is upright. - Avoid direct eye exposure to the light source while it is on. 2. -
Page 5: Remote Control Operation
4. Remote Control Operation Functions: 1) Stand By: Standby mode for whole light 2) DMX: Enter DMX mode 3) Show 1: LED show with adjustable speed 4) Show 2: Laser show with adjustable speed 5) Show 3: LED & Laser show with adjustable speed 6) Show 4: LED &... -
Page 6: Menu Operation
5. Menu Operation MENU Addr(set DMX address) 1-512 SPXX (speed 0-99) Sh 1:only LED effect with speed adjustable) Shou(show mode) SPXX (speed 0-99) Sh 2:only laser effect with speed adjustable Sh 3:LED+laser effect with speed adjustable SPXX (speed 0-99) Sh 4:LED+laser effect with fixed speed Soun(sound mode) Adjust MIC sensitivity on rear panel Display Software version... -
Page 7: Dmx Address Setting
0-127 Laser position CH10 Laser motor control 128-255 Laser motor speed from slow to fast DMX mode 10-100 Show 1 ， L ED (speed controlled by CH12) CH11 Mode control 101-150 ， Show 2 L aser (speed controlled CH12) 151-200 Show 3 ，... -
Page 8: Dmx Terminator
fixtures in lots of 16 channels – so in that case, fixture 1 on channel 1, fixture 2 on channel 17, 3 on 33, and so on. Refer to your DMX controllers’ instruction manual on how best to manage your DMX channel allocation. DMX Input DMX Output First Address 001... -
Page 9: Rigging
9. Rigging: 1. Clamp 2. DERBY2 Yoke/handle Use a suitable clamp to attach to the hanging bracket / yoke of the product. The mounting bracket can then be attached to a stand, trussing or lighting bar securely. Be sure to use a safety chain which connects through the lug on the back of the unit. -
Page 10: Warranty
We recommend you register your warranty online at www.industrygear.com.au. Purchased from:_________________________________________ Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2016. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 sales@lswonline.com.au www.lightemotion.com.au 1800 643 111 (within Australia)
