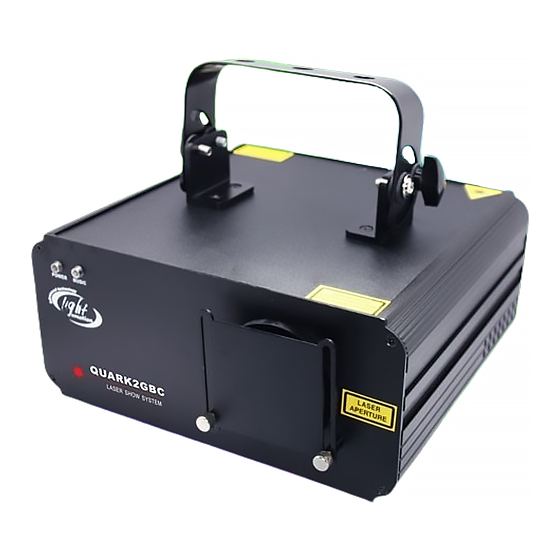

QUARK2GBC
QUARK2GBC
QUARK2GBC
QUARK2GBC
Version: 3.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Light Emotion QUARK2GBC
Summary of Contents for Light Emotion QUARK2GBC
- Page 1 QUARK2GBC QUARK2GBC QUARK2GBC QUARK2GBC Version: 3.0 This manual contains important laser system safety and operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking the law. Keep this manual in a safe place for future reference.
- Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device.
-
Page 3: Laser Safety Warnings
USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these instructions carefully, which includes important information about installation, safe use and service! Caution Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light. -
Page 4: Stop And Read All Laser Safety Data
USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. - Page 5 USER MANUAL Do not point lasers at people or animals Never look into the laser aperture or laser beams Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc. Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal.
-
Page 6: Laser Safety Label Reproductions
USER MANUAL LASER SAFETY LABEL REPRODUCTIONS Caution – Class 3B LASER RADIATION, WHEN OPEN, AVOID EXPOSURE TO BEAM LASER RADIOATION AVOID EXPOSURE TO BEAM CLASS 3B LASER PRODUCT. The label indicates the laser beam output aperture. LASER EXPOSURE WARNING LASER LIGHT AVOID DIRECT EYE EXPOSURE Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from... -
Page 7: Laser Emission Data
USER MANUAL LASER EMISSION DATA Laser Classification Class 3B Green Laser Medium DPSS Nd:YVO4, 532nm Blue Laser Medium LD GaAs 450nm, typical Beam Diameter <5mm at aperture Pulse Data All pulses < 4Hz (>0.25sec) Divergence (each beam) <2 mrad Divergence (total light) <160 degrees Green>40mW, Blue>300mW Laser Power... -
Page 8: General Safety Instructions
USER MANUAL GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to: Be qualified Follow the instructions of this manual CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! This device has left out premises in absolutely perfect condition. - Page 9 USER MANUAL The electric connection, repairs and servicing must be carried out by a qualified employee. Do not switch the fixture on and off in short intervals as this would reduce the laser diode life. For replacement, please use fuses of same type and rating only. If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.
-
Page 10: Before Operation
USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. -
Page 11: Dmx-512 Connection Between Fixtures
USER MANUAL The unit is supplied with a power plug appropriate to its voltage and destination. Should any other connections be required they must be carried out with the following configuration. Cable(EU) Cable(US) International Brown Black Live Light blue White Neutral Yellow/Green Green... - Page 12 USER MANUAL Building a serial DMX-chain If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter cables.
-
Page 13: Proper Laser Set Up & Usage
USER MANUAL Proper Laser Set Up & Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. - Page 14 USER MANUAL The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g.
-
Page 15: Product Overview
USER MANUAL PRODUCT OVERVIEW This device has left out premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. -
Page 16: Rear Panel
USER MANUAL Rear Panel NAME DESCRIPTION With IEC socket and integrated fuse holder. Main Power Input Power Switch Switch ON and OFF the fixture Used to cool the components inside the enclosure. Cooling Fan Never cover this fan outlet! DMX Input 3 pins male XLR connector DMX Output 3 pins female XLR connector... -
Page 17: Control & Function
USER MANUAL IMPORTANT For your own safely and full laser safety regulation, we do strongly recommend you to take this optional switch! CONTROL & FUNCTION Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. Do not switch the unit on and off in short time intervals Always unplug the unit when it is not used for a longer time. -
Page 18: Operation
USER MANUAL Operation Stand Alone Preprogram Laser Show Press FUNC to enter MODE OPTION. Till to LED panel shows either one of AUM, SoU, AUP, SoP, Aud & Sod. Press UP or DOWN to select your favorite Stand Alone mode as above. Press ENTER to confirm the setting. - Page 19 USER MANUAL Auto running pattern effect show Sound activated pattern effect show Auto running grating effect show Sound activated grating effect show SOUND ACTIVATED MODE sensitivity setting Press FUNC till to see S 6 Press UP/DOWN to set microphone sensitivity. S 0 is no sound activated, from S 1 to S 9, the sensitivity level is going more sensitive.
-
Page 20: Dmx Protocol
USER MANUAL DMX PROTOCOL CHANNEL VALUE FUNCTION 000-024 Laser Block Out 025-049 Aun , Auto mixed show 050-074 Son, Sound activated mixed show 075-099 Aup, Auto pattern effect show 100-124 Sop, Sound activated pattern effect show CH 1 125-149 Aud, Auto grating effect show MODE 150-174 Sod, Sound activated grating effect show... - Page 21 USER MANUAL Strobing speed STROBE 010-249 250-255 Strobing to sound No grating rotating CH 6 Clockwise rotating 000-075 GRATING 076-150 Stop ROTATION Anticlockwise rotating 151-255 Grating Patterns Effect mode, when channel 1 is 200-224 CH 2 000-255 11 grating patterns 100%-5% Size 0-127 128-169...
- Page 22 USER MANUAL COLOR 016-031 Green 032-047 Blue & Green (Cyan) 048-255 Color Rolling No grating rotating CH10 001-075 Clockwise grating rotating Grating 076-150 No grating rotating Rotation 151-255 Anticlockwise grating rotating Patterns beam effect mode, when channel 1 is 225-255 CH 2 000-255 32 grating patterns...
-
Page 23: Maintenance
USER MANUAL Y AXIS 128-191 Clockwise moving MOVING 192-255 Anticlockwise moving 000-015 Original Color 016-031 Blue 032-047 Green CH 9 COLOR 048-063 Cyan 064-160 Single color Alternating speed Mix color alternating speed 161-255 MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing Switch off the fixture, unplug the mains cable and wait until the unit has been cooled down. -
Page 24: Specifications
USER MANUAL SPECIFICATIONS Mains Input: AC100-240V, 50/60Hz Fuse: 250V 1A Slow Blow (20mm Glass) Total Power: Music Control: Internal microphone Laser Power: 40mW 532nm Green CW 300mW 450nm Blue CW Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40 DMX Connections: 3 pins XLR Male/Female...
