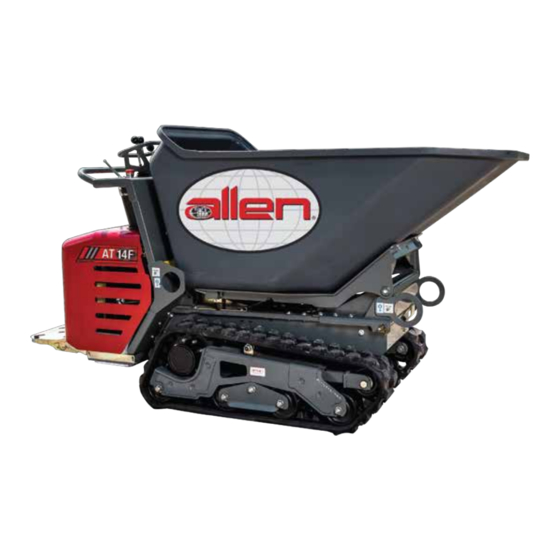

allen AT14F Operations & Parts Manual

Track buggies
Hide thumbs Also See for AT14F:
Table of Contents

Advertisement

Quick Links

T R A C K B U G G I E S
AT14F & AT14S
OPERATIONS &
PARTS MANUAL
Man ual Par t #: 06 530 0 | R evis io n : E
Languag e: E n g lish | O r igin a l In stru cti on s
