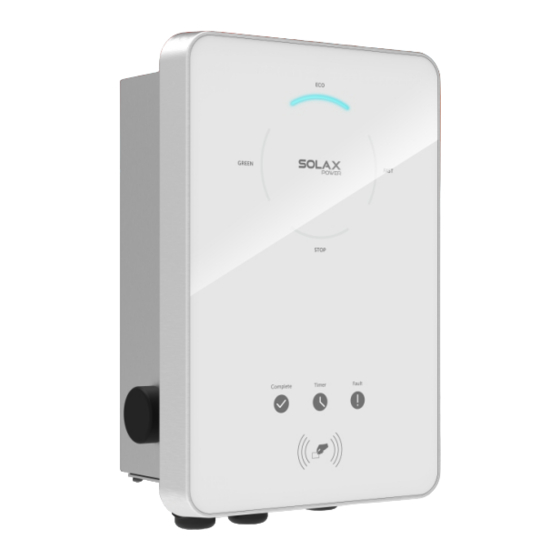

SolaX Power X1-EVC Series User Manual
  1. Manuals
  2. Brands
  3. SolaX Power Manuals
  4. Inverter
  5. X1-EVC Series
  6. User manual

SolaX Power X1-EVC Series User Manual

Hide thumbs Also See for X1-EVC Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SolaX Power Network Technology (Zhejiang) Co., Ltd.
ADD.: No. 288, Shizhu Road, Tonglu Economic Development Zone,
Tonglu City, Zhejiang Province, China.
TEL.: +86 571-56260011
E-mail: info@solaxpower.com
Copyright Declaration
The copyright of this manual belongs to SolaX Power Network Technology (Zhejiang) Co., Ltd.
Any corporation or individual should not plagiarize, partially or fully copy it (including
software, etc.), and no reproduction or distribution of it in any form or by any means shall be
allowed. All rights reserved. SolaX Power Network Technology (Zhejiang) Co., Ltd. reserves the
right of final interpretation.
614.00870.00
X1/X3-EVC
Series User Manual
7.2 kW -
22
kW (Commercial Edition)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1-EVC Series and is the answer not in the manual?

Questions and answers

Related Manuals for SolaX Power X1-EVC Series

Summary of Contents for SolaX Power X1-EVC Series

  • Page 1 ADD.: No. 288, Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, China. The copyright of this manual belongs to SolaX Power Network Technology (Zhejiang) Co., Ltd. TEL.: +86 571-56260011 Any corporation or individual should not plagiarize, partially or fully copy it (including E-mail: info@solaxpower.com...

  • Page 2: Table Of Contents

    Contents Contents 1 Note on this Manual......... . 03 1.1 Scope of Validity .

  • Page 3: Scope Of Validity

    Contents Notes on this Manual 1 Notes on this Manual 1.1 Scope of Validity 7 App Setting ........... 28 This manual is an integral part of the X1/X3-EVC Series EV-Charger.

  • Page 4: Safety

    Safety Safety 2 Safety 2.1 Appropriate Usage 2.2 Important Safety Instructions The series are AC EV charger, intended to be installed in a fixed location and connected to the AC supply. DANGER! Danger to life due to output and input high voltages in this device! All work must be carried out by qualified electrician who has Electrical...

  • Page 5: Explanation Of Symbols

    Introduction Safety 3 Introduction 3.1 Basic Features Authorized service personnel must use insulated tools when installing or working with this equipment. Thanks for purchasing with the series EV-Charger. The EV-Charger can be used for Do not use the EV-Charger in case the device has defects, cracks, abrasion, bare charging electric vehicle.

  • Page 6: Dimension

    Introduction Introduction 3.2 Dimension Plug Type (Connector Type) Ø Socket Type Ø 249 mm 155 mm 265 mm 155 mm...

  • Page 7: Product Description

    Introduction Technical Data 4 Technical Data 3.3 Product Description 4.1 General Data Model X3-EVC-11K X1-EVC-7.2K X3-EVC-22K AC Nominal Input Phases/Lines L+N+PE 3P+N+PE 3P+N+PE Voltage [V] 50/60;±5 50/60;±5 Frequency [Hz] 50/60;±5 AC Nominal Output Voltage [V] Current [A] Power [W] 7200 11000 22000 Interface...

  • Page 8: Security Protection

    Installation Technical Data 5 Installation 4.2 Security Protection 5.1 Check for Transport Damage Make sure the EV-Charger is intact during transportation. If there are some visible Model X1-EVC-7.2K X3-EVC-11K X3-EVC-22K damages, such as cracks, please contact your dealer immediately. Multiple Protection Over/Under voltage protection 5.2 Packing List Overload protection...

  • Page 9: Installation Precaution

    Installation Installation 5.3 Installation Precaution 5.4 Installation Steps The EV-Charger is designed for wall-mounted installation (IP 65). Preparation Make sure the installation site meets the following conditions: ● Below tools are needed before installation. · Not exposed to sunlight directly. ·...
  • Page 10 Installation Installation STEP 2: Fix the back bracket and the cable hook (only for Plug Type) to the wall. STEP 3: Hang the EV-Charger on the wall for trial, then estimate the required length of input cable and communication cable. After that, take the EV-Charger down. - Mark the position of the holes.
  • Page 11 Installation Installation STEP 5: Unscrew the countersunk screw of the base plate of communication board STEP 7: Strip the outer sheath of the input cable as below, ensuring all the wires can with the cross screwdriver. Then pull the base plate of communication board out. reach the terminal blocks with a little excessive length.
  • Page 12 Installation Installation STEP 9: Insert the wires into the appropriate holes of the terminal blocks, then block STEP 10: Press the spring upward and push the base plate of communication board the terminals with the s traight screwdriver in. Then screw the countersunk screw. (torque:1.5~1.8 N·m) (torque:0.8~1.5 N·m)
  • Page 13 Installation Installation STEP 11: Push the rear cover to appropriate position of the cables and screw the self For Plug Type, connect the charging connector with the EV-Charger and hang the tapping screws with the cross screwdriver. Then tighten the waterproof fastening connecting cable on the hook.

  • Page 14: Run The Ev-Charger

    Installation Operation Method 6 Operation Method 5.5 Run the EV-Charger 6.1 States Ø Power on the EV-Charger after checking all below steps: The states of the series EV-Charger (commercial edition) are described a) Check that the device is fixed well on the wall. as below: b) AC cable is connected to grid correctly.

  • Page 15: Application Scenarios

    Operation Method Operation Method * Card Activation 6.3 Application Scenarios The series EV-Charger (commercial edition) has two application scenarios, i.e. In the “Private Charger” scenarios, the RFID cards need to be activated at the the “Private Charger” and the “Commercial Charger(OCPP)”. EV-Charger.

  • Page 16: App Setting

    7200 W Frequency 50 Hz/60 Hz Degree of protection IP65 Protection class Class Ⅰ Operating temperature range -30℃~ +50℃ Connection type Socket Next Next Registration No. : SolaX Power Network Technology (Zhejiang) Co., Ltd. www.solaxpower.com 615.00527.00 (Example for Registration No.)
  • Page 17 App Setting App Setting Step 4: Type in or choose your home Wi-Fi SSID and password, then touch Local Mode “Next”. Use your smart phone to connect the SolaX Wi-Fi signal (Wifi_SCxxxxxxxx). *5GHz Wi-Fi is unavailable for now. Then touch Local and type in password (initially same as the Registration No.) to access the Local Mode in the Monitoring App.
  • Page 18 App Setting App Setting Ø 2. After entering the setting page, select “Advanced Settings” and a drop-down Settings for the EV-Charger list will appear. 1. Select “Overview” at the bottom and then touch the setting icon as shown in the picture. Setting <...
  • Page 19 App Setting App Setting 4. Complete the corresponding settings for deferent scenarios according to • Commercial Charger(OCPP) the following instructions. 1) Confirm the “Timezone” according to the application location. After logging • Private Charger in to the APP through LOCAL mode, the Timezone will be automatically located.
  • Page 20 App Setting App Setting 5. You can delay the start charging time for the vehicle by enabling the 2) After entering the “Charging Restrict”, the existed list will appear. “Charging Delay”. Once enabled, you can input the “Charging Delay Time(S)” You can choose certain time period(s) and turn on or off the switch as shown, within a range of 600 s ~ 1800 s.
  • Page 21 App Setting App Setting 3) If you want to add a new period, please touch the add icon and complete 4) If you want to revise the settings for a certain period, please touch the relative settings. content box of the period and then update the setting items. ①...
  • Page 22 App Setting App Setting 7. Set and save the value of “Overvoltage Limit” and “Undervoltage Limit”. 9. The default setting can be restored and the EV-Charger can be reset by touching correspondent option. RFID Function Overvoltage Limit (V) Save Enable Card Activation Mode Undervoltage Limit (V) RFID PIN...

  • Page 23: Troubleshooting

    Troubleshooting Troubleshooting 8 Troubleshooting 8.1 Troubleshooting Faults Solution This section contains information and procedures for solving possible problems 1.Unplug the connector from the EV; with the series EV-Charger, and provides you with troubleshooting tips to identify 2.If the "Fault" indicator is off, re-plug in and try charging OverCurr_Fault and solve most problems that could occur with the EV-Charger.

  • Page 24: Troubleshooting

    Troubleshooting Troubleshooting 8.2 Routine Maintenance ● If your EV-Charger's information panel is not displaying a Fault light, check the following list to make sure that the present state of the installation allows proper The EV-Charger do not need any maintenance or correction in most condition. To operation of the unit.

  • Page 25: Decommissioning

    Decommissioning Disclaimer 9 Decommissioning 10 Disclaimer 9.1 Dismantling the EV-Charger The EV-Chargers shall be transported, used and operated under restricted conditions. We will not provide any service, technical support or Disconnect the EV-Charger from the grid. compensation in case of the following conditions, including but not limited to: Wait for 5 minutes for de-energizing.
  • Page 26 Warranty Registration Form For Customer (Compulsory) Country Name Phone Number Email Address Zip Code State Product Serial Number Date of Commissioning Installation Company Name Installer Name Electrician License No. For Installer Module ( If Any ) Module Brand Module Size(W) Number of String Number of Panel Per String Battery ( If Any )
  • Page 27 PLEASE REGISTER THE WARRANTY IMMEDIATELY AFTER INSTALLATION! GET YOUR WARRANTY CERTIFICATE FROM SOLAX! KEEP YOUR INVERTER ONLINE & WIN SOLAX POINTS! Open your Wait for the camera app camera to and point recognize your device the QR code at the QR code Notification Click the notification banner...
