EZ-BLE™ PRoC™ Module
General Description

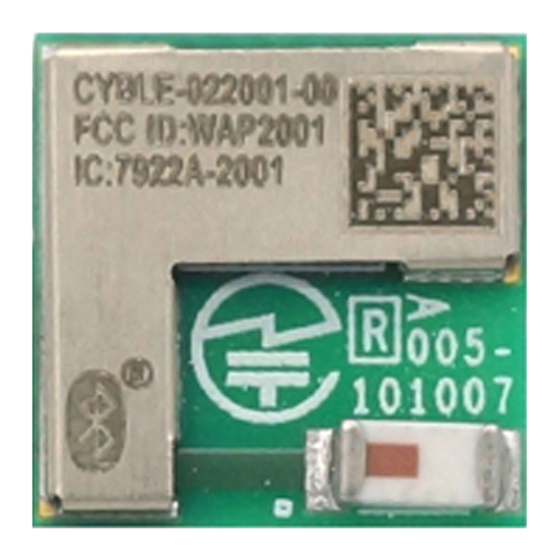

The Cypress CYBLE-022001-00 is a fully certified and qualified
module supporting Bluetooth
communication. The CYBLE-022001-00 is a turnkey solution
and includes onboard crystal oscillators, chip antenna, passive
components, and Cypress PRoC™ BLE. Refer to the
CYBL10X6X datasheet for additional details on the capabilities
of the PRoC BLE device used on this module.
The CYBLE-022001-00 supports a number of peripheral
functions (ADC, timers,
communication protocols (I
programmable architecture. The CYBLE-022001-00 includes a
royalty-free BLE stack compatible with Bluetooth 4.1 and
provides up to 16 GPIOs in a small 10 × 10 × 1.80 mm package.
The CYBLE-022001-00 is a complete solution and an ideal fit for
applications requiring BLE wireless connectivity.
Module Description
Module size: 10.0 mm ×10.0 mm × 1.80 mm (with shield)
■
Bluetooth 4.1 single-mode module
■
Industrial temperature range: –40 °C to +85 °C
■
32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit
■
multiply, operating at up to 48 MHz
128-KB flash memory, 16-KB SRAM memory
■
Watchdog timer with dedicated internal low-speed oscillator
■
(ILO)
Two-pin SWD for programming
■
Up to 16 GPIOs configurable as open drain high/low,
■
pull-up/pull-down, HI-Z analog, HI-Z digital, or strong output
Certified to FCC, CE MIC, KC, and IC regulations
■
FCC ID: WAP2001
❐
IC ID: 7922A-2001
❐
MIC ID: 005-101007
❐
KC ID: MSIP-CRM-Cyp-2001
❐
Bluetooth SIG 4.1 qualified
■
QDID: 67366
❐
Declaration ID: D026297
❐
Power Consumption
TX output power: –18 dbm to +3 dbm
■
Received signal strength indicator (RSSI) with 1-dB resolution
■
TX current consumption of 15.6 mA (radio only, 0 dbm)
■
RX current consumption of 16.4 mA (radio only)
■
Cypress Semiconductor Corporation
Document Number: 001-95662 Rev. *J
®
Low Energy (BLE) wireless
counters, PWM) and
2
C, UART, SPI) through its
198 Champion Court
EZ-BLE™ PRoC™ Module
Low power mode support
■
Deep Sleep: 1.3 µA with watch crystal oscillator (WCO) on
❐
Hibernate: 150 nA with SRAM retention
❐
Stop: 60 nA with XRES wakeup
❐
Functional Capabilities
Up to 15 capacitive sensors for buttons or sliders with
■
best-in-class signal-to-noise ration (SNR) and liquid tolerance
12-bit, 1-Msps SAR ADC with internal reference,
■
sample-and-hold (S/H), and channel sequencer
serial
Two serial communication blocks (SCBs) supporting I
■
(master/slave), SPI (master/slave), or UART
Four dedicated 16-bit timer, counter, or PWM blocks
■
(TCPWMs)
Programmable low voltage detect (LVD) from 1.8 V to 4.5 V
■
2
I S master interface
■
Bluetooth Low Energy protocol stack supporting generic
■
access profile (GAP) Central, Peripheral, Observer, or
Broadcaster roles
Switches between Central and Peripheral roles on-the-go
■
Standard Bluetooth Low Energy profiles and services for
■
interoperability
Custom profile and service for specific use cases
■
Benefits
The CYBLE-022001-00 module is provided as a turnkey
solution, including all necessary hardware required to use BLE
communication standards.
Proven, qualified, and certified hardware design ready to use
■
Small footprint (10 × 10 mm × 1.80 mm), perfect for space
■
constrained applications
Reprogrammable architecture
■
Fully certified module eliminates the time needed for design,
■
development and certification processes
Bluetooth SIG qualified with QDID and Declaration ID
■
Flexible communication protocol support
■
PSoC Creator™ provides an easy-to-use integrated design
■
environment (IDE) to configure, develop, program, and test a
BLE application
San Jose
CYBLE-022001-00
,
CA 95134-1709 408-943-2600
Revised December 22, 2017
2
C
