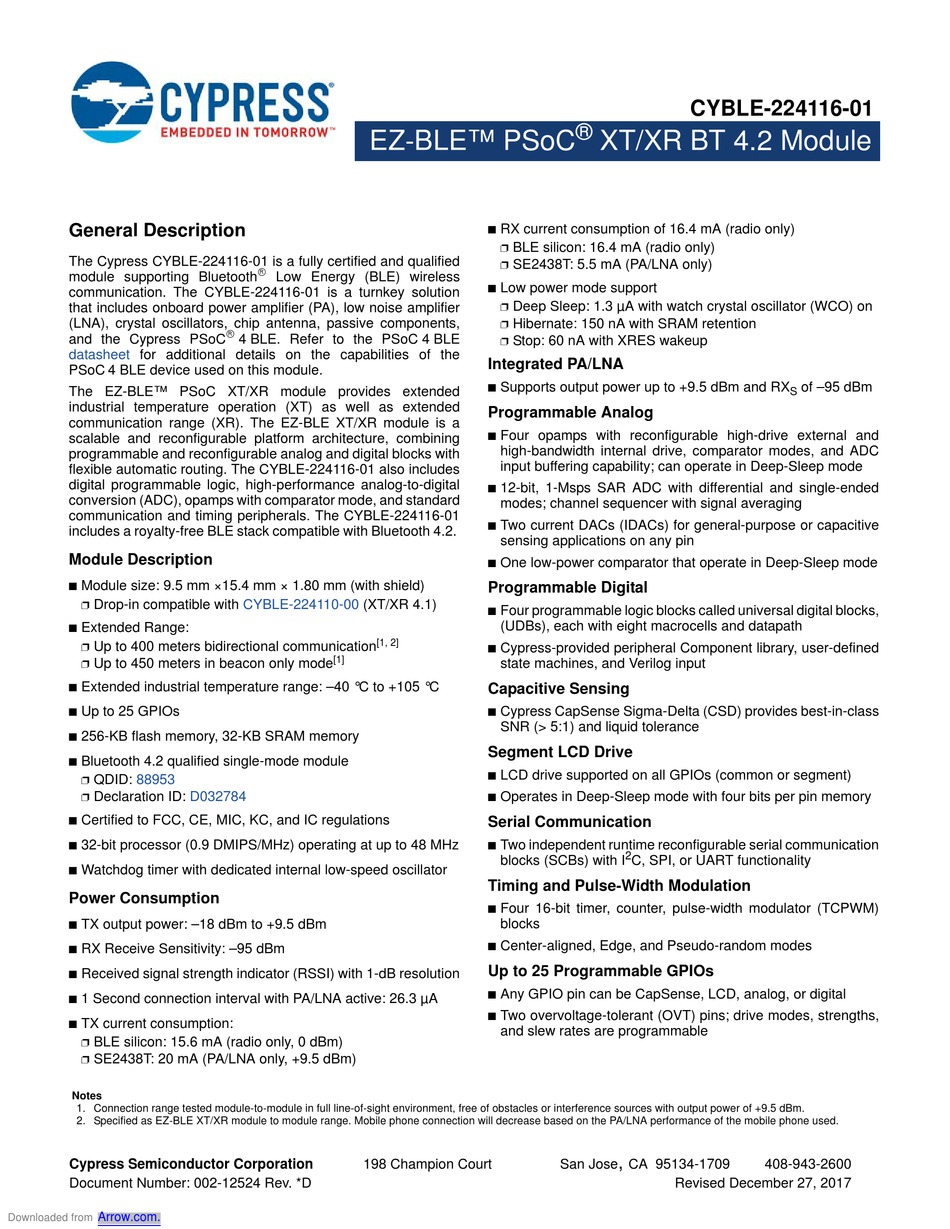

General Description
The Cypress CYBLE-224116-01 is a fully certified and qualified
module supporting Bluetooth
communication. The CYBLE-224116-01 is a turnkey solution
that includes onboard power amplifier (PA), low noise amplifier
(LNA), crystal oscillators, chip antenna, passive components,
and the Cypress PSoC
datasheet
for additional details on the capabilities of the
PSoC 4 BLE device used on this module.
The EZ-BLE™ PSoC XT/XR module provides extended
industrial temperature operation (XT) as well as extended
communication range (XR). The EZ-BLE XT/XR module is a
scalable and reconfigurable platform architecture, combining
programmable and reconfigurable analog and digital blocks with
flexible automatic routing. The CYBLE-224116-01 also includes
digital programmable logic, high-performance analog-to-digital
conversion (ADC), opamps with comparator mode, and standard
communication and timing peripherals. The CYBLE-224116-01
includes a royalty-free BLE stack compatible with Bluetooth 4.2.
Module Description
Module size: 9.5 mm ×15.4 mm × 1.80 mm (with shield)
Drop-in compatible with
Extended Range:
Up to 400 meters bidirectional communication
Up to 450 meters in beacon only mode
Extended industrial temperature range: –40 °C to +105 °C
Up to 25 GPIOs
256-KB flash memory, 32-KB SRAM memory
Bluetooth 4.2 qualified single-mode module
QDID:
88953
Declaration ID:
Certified to FCC, CE, MIC, KC, and IC regulations
32-bit processor (0.9 DMIPS/MHz) operating at up to 48 MHz
Watchdog timer with dedicated internal low-speed oscillator
Power Consumption
TX output power: –18 dBm to +9.5 dBm
RX Receive Sensitivity: –95 dBm
Received signal strength indicator (RSSI) with 1-dB resolution
1 Second connection interval with PA/LNA active: 26.3 µA
TX current consumption:
BLE silicon: 15.6 mA (radio only, 0 dBm)
SE2438T: 20 mA (PA/LNA only, +9.5 dBm)
Notes
1. Connection range tested module-to-module in full line-of-sight environment, free of obstacles or interference sources with output power of +9.5 dBm.
2. Specified as EZ-BLE XT/XR module to module range. Mobile phone connection will decrease based on the PA/LNA performance of the mobile phone used.
Cypress Semiconductor Corporation
Document Number: 002-12524 Rev. *D
Arrow.com.
Downloaded from
Low Energy (BLE) wireless
4 BLE. Refer to the PSoC 4 BLE
CYBLE-224110-00
(XT/XR 4.1)
[1]
D032784
198 Champion Court
EZ-BLE™ PSoC
RX current consumption of 16.4 mA (radio only)
BLE silicon: 16.4 mA (radio only)
SE2438T: 5.5 mA (PA/LNA only)
Low power mode support
Deep Sleep: 1.3 µA with watch crystal oscillator (WCO) on
Hibernate: 150 nA with SRAM retention
Stop: 60 nA with XRES wakeup
Integrated PA/LNA
Supports output power up to +9.5 dBm and RX
Programmable Analog
Four opamps with reconfigurable high-drive external and
high-bandwidth internal drive, comparator modes, and ADC
input buffering capability; can operate in Deep-Sleep mode
12-bit, 1-Msps SAR ADC with differential and single-ended
modes; channel sequencer with signal averaging
Two current DACs (IDACs) for general-purpose or capacitive
sensing applications on any pin
One low-power comparator that operate in Deep-Sleep mode
Programmable Digital
Four programmable logic blocks called universal digital blocks,
(UDBs), each with eight macrocells and datapath
[1, 2]
Cypress-provided peripheral Component library, user-defined
state machines, and Verilog input
Capacitive Sensing
Cypress CapSense Sigma-Delta (CSD) provides best-in-class
SNR (> 5:1) and liquid tolerance
Segment LCD Drive
LCD drive supported on all GPIOs (common or segment)
Operates in Deep-Sleep mode with four bits per pin memory
Serial Communication
Two independent runtime reconfigurable serial communication
blocks (SCBs) with I
Timing and Pulse-Width Modulation
Four 16-bit timer, counter, pulse-width modulator (TCPWM)
blocks
Center-aligned, Edge, and Pseudo-random modes
Up to 25 Programmable GPIOs
Any GPIO pin can be CapSense, LCD, analog, or digital
Two overvoltage-tolerant (OVT) pins; drive modes, strengths,
and slew rates are programmable
CYBLE-224116-01
®
XT/XR BT 4.2 Module
2
C, SPI, or UART functionality
,
San Jose
CA 95134-1709
Revised December 27, 2017
of –95 dBm
S
408-943-2600
