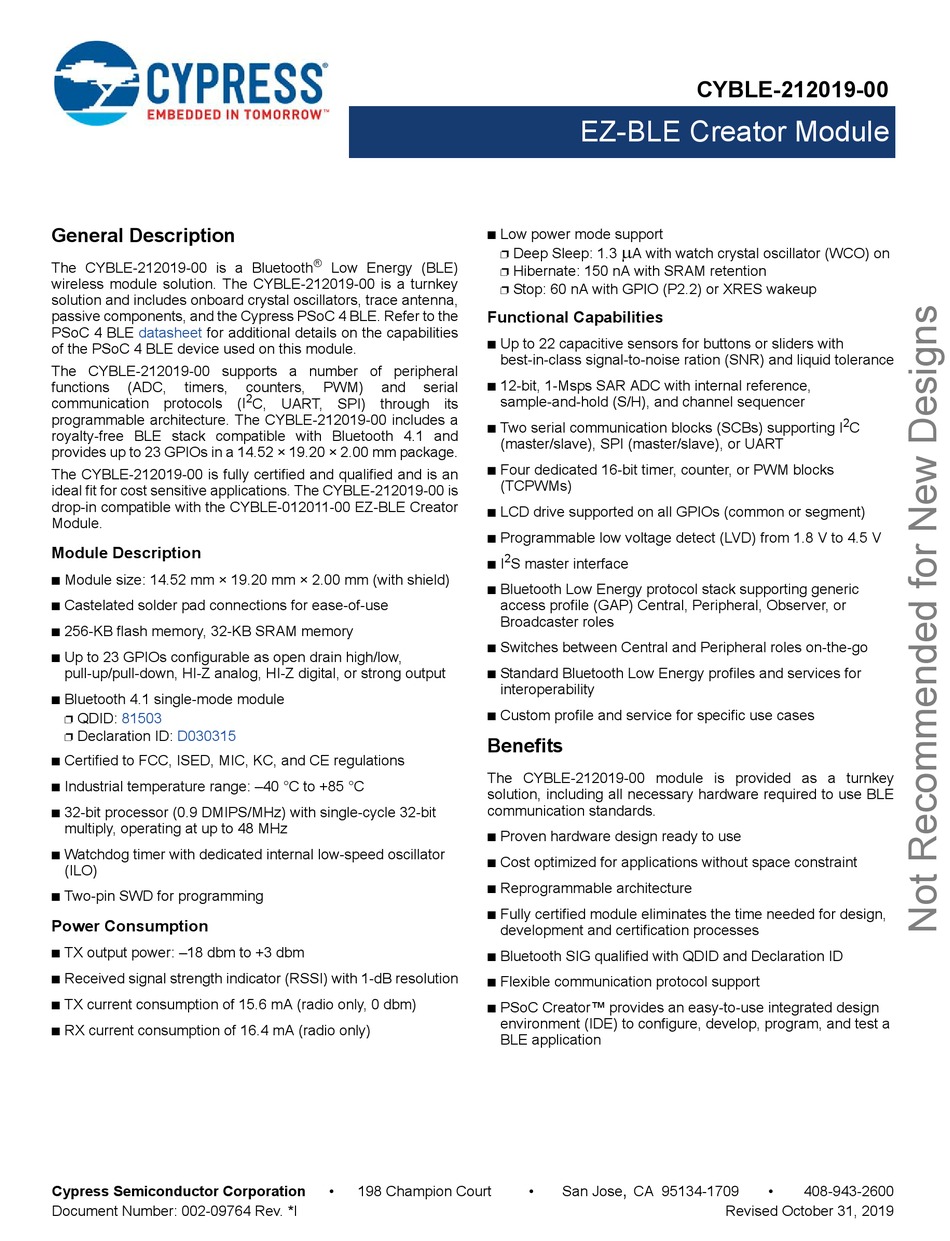

Cypress CYBLE-212019-00 Manual

EZ-BLE Creator Module
General Description

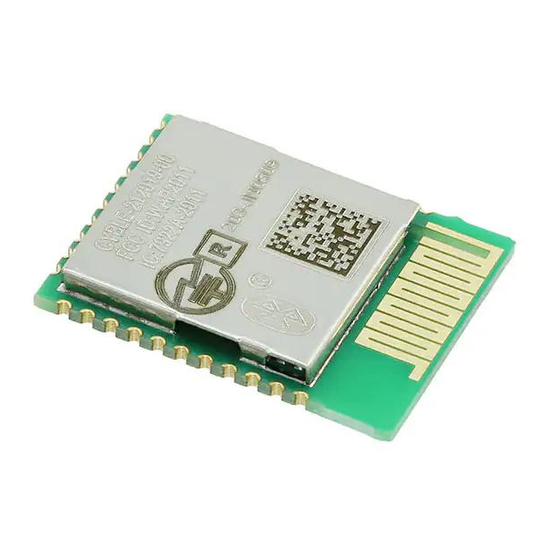

The CYBLE-212019-00 is a Bluetooth
wireless module solution. The CYBLE-212019-00 is a turnkey
solution and includes onboard crystal oscillators, trace antenna,
passive components, and the Cypress PSoC 4 BLE. Refer to the
PSoC 4 BLE datasheet for additional details on the capabilities
of the PSoC 4 BLE device used on this module.
The CYBLE-212019-00 supports a number of peripheral
functions (ADC, timers,
communication protocols (I
programmable architecture. The CYBLE-212019-00 includes a
royalty-free BLE stack compatible with Bluetooth 4.1 and
provides up to 23 GPIOs in a 14.52 × 19.20 × 2.00 mm package.
The CYBLE-212019-00 is fully certified and qualified and is an
ideal fit for cost sensitive applications. The CYBLE-212019-00 is
drop-in compatible with the CYBLE-012011-00 EZ-BLE Creator
Module.
Module Description
Module size: 14.52 mm × 19.20 mm × 2.00 mm (with shield)
■
Castelated solder pad connections for ease-of-use
■
256-KB flash memory, 32-KB SRAM memory
■
Up to 23 GPIOs configurable as open drain high/low,
■
pull-up/pull-down, HI-Z analog, HI-Z digital, or strong output
Bluetooth 4.1 single-mode module
■
QDID: 81503
❐
Declaration ID: D030315
❐
Certified to FCC, ISED, MIC, KC, and CE regulations
■
Industrial temperature range: –40 °C to +85 °C
■
32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit
■
multiply, operating at up to 48 MHz
Watchdog timer with dedicated internal low-speed oscillator
■
(ILO)
Two-pin SWD for programming
■
Power Consumption
TX output power: –18 dbm to +3 dbm
■
Received signal strength indicator (RSSI) with 1-dB resolution
■
TX current consumption of 15.6 mA (radio only, 0 dbm)
■
RX current consumption of 16.4 mA (radio only)
■
Cypress Semiconductor Corporation
Document Number: 002-09764 Rev. *I

Low Energy (BLE)
counters, PWM) and serial
2
C, UART, SPI) through its
• 198 Champion Court
EZ-BLE Creator Module
Low power mode support
■

Deep Sleep: 1.3 A with watch crystal oscillator (WCO) on
❐
Hibernate: 150 nA with SRAM retention
❐
Stop: 60 nA with GPIO (P2.2) or XRES wakeup
❐
Functional Capabilities
Up to 22 capacitive sensors for buttons or sliders with
■
best-in-class signal-to-noise ration (SNR) and liquid tolerance
12-bit, 1-Msps SAR ADC with internal reference,
■
sample-and-hold (S/H), and channel sequencer
Two serial communication blocks (SCBs) supporting I
■
(master/slave), SPI (master/slave), or UART
Four dedicated 16-bit timer, counter, or PWM blocks
■
(TCPWMs)
LCD drive supported on all GPIOs (common or segment)
■
Programmable low voltage detect (LVD) from 1.8 V to 4.5 V
■
2
I S master interface
■
Bluetooth Low Energy protocol stack supporting generic
■
access profile (GAP) Central, Peripheral, Observer, or
Broadcaster roles
Switches between Central and Peripheral roles on-the-go
■
Standard Bluetooth Low Energy profiles and services for
■
interoperability
Custom profile and service for specific use cases
■
Benefits
The CYBLE-212019-00 module is provided as a turnkey
solution, including all necessary hardware required to use BLE
communication standards.
Proven hardware design ready to use
■
Cost optimized for applications without space constraint
■
Reprogrammable architecture
■
Fully certified module eliminates the time needed for design,
■
development and certification processes
Bluetooth SIG qualified with QDID and Declaration ID
■
Flexible communication protocol support
■
PSoC Creator™ provides an easy-to-use integrated design
■
environment (IDE) to configure, develop, program, and test a
BLE application
,
• San Jose CA 95134-1709
CYBLE-212019-00
2
C
• 408-943-2600
Revised October 31, 2019
