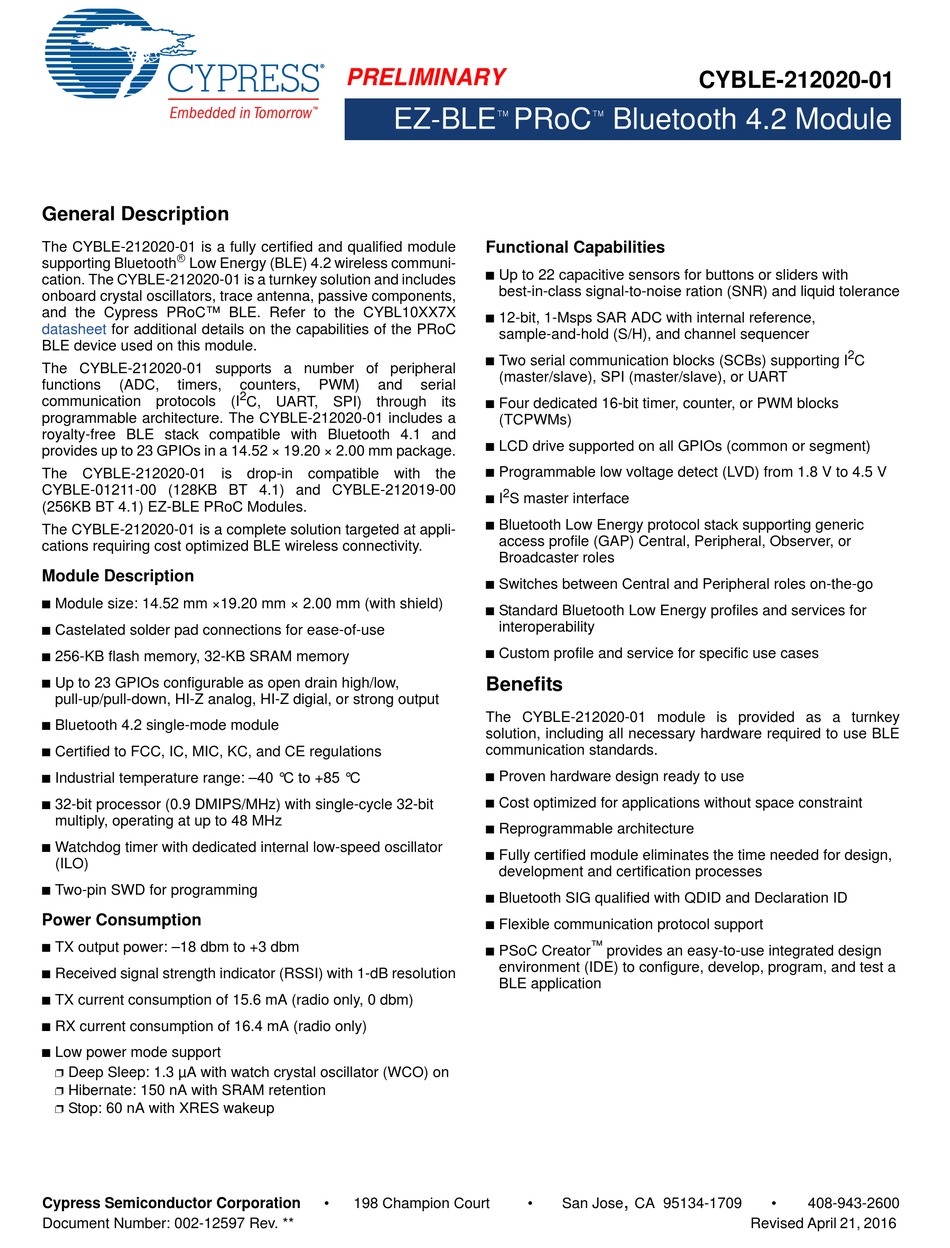

General Description

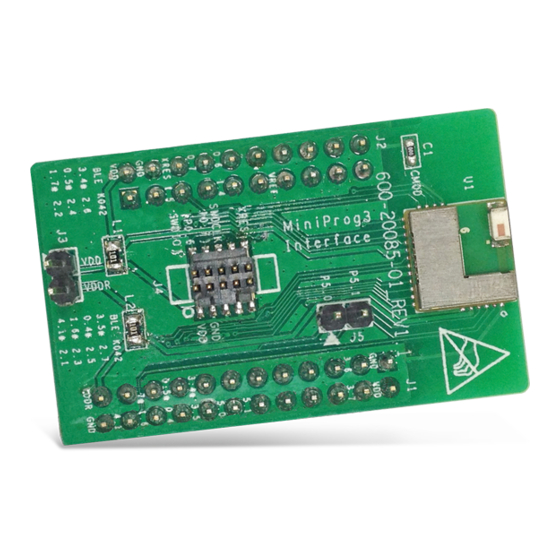

The CYBLE-212020-01 is a fully certified and qualified module

supporting Bluetooth Low Energy (BLE) 4.2 wireless communi-
cation. The CYBLE-212020-01 is a turnkey solution and includes
onboard crystal oscillators, trace antenna, passive components,
and the Cypress PRoC™ BLE. Refer to the CYBL10XX7X
datasheet for additional details on the capabilities of the PRoC
BLE device used on this module.
The CYBLE-212020-01 supports a number of peripheral
functions (ADC, timers,
communication protocols (I
programmable architecture. The CYBLE-212020-01 includes a
royalty-free BLE stack compatible with Bluetooth 4.1 and
provides up to 23 GPIOs in a 14.52 × 19.20 × 2.00 mm package.
The CYBLE-212020-01 is drop-in compatible with the
CYBLE-01211-00 (128KB BT 4.1) and CYBLE-212019-00
(256KB BT 4.1) EZ-BLE PRoC Modules.
The CYBLE-212020-01 is a complete solution targeted at appli-
cations requiring cost optimized BLE wireless connectivity.
Module Description
■ Module size: 14.52 mm ×19.20 mm × 2.00 mm (with shield)
■ Castelated solder pad connections for ease-of-use
■ 256-KB flash memory, 32-KB SRAM memory
■
Up to 23 GPIOs configurable as open drain high/low,
pull-up/pull-down, HI-Z analog, HI-Z digial, or strong output
■
Bluetooth 4.2 single-mode module
■ Certified to FCC, IC, MIC, KC, and CE regulations
■ Industrial temperature range: –40 °C to +85 °C
■ 32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit
multiply, operating at up to 48 MHz
■ Watchdog timer with dedicated internal low-speed oscillator
(ILO)
■
Two-pin SWD for programming
Power Consumption
■ TX output power: –18 dbm to +3 dbm
■ Received signal strength indicator (RSSI) with 1-dB resolution
■ TX current consumption of 15.6 mA (radio only, 0 dbm)
■ RX current consumption of 16.4 mA (radio only)
■ Low power mode support
❐ Deep Sleep: 1.3 µA with watch crystal oscillator (WCO) on
❐ Hibernate: 150 nA with SRAM retention
❐ Stop: 60 nA with XRES wakeup
Cypress Semiconductor Corporation
Document Number: 002-12597 Rev. **
PRELIMINARY
EZ-BLE
counters, PWM) and
2
C, UART, SPI) through its
• 198 Champion Court
 
PRoC
Functional Capabilities
■ Up to 22 capacitive sensors for buttons or sliders with
best-in-class signal-to-noise ration (SNR) and liquid tolerance
■ 12-bit, 1-Msps SAR ADC with internal reference,
sample-and-hold (S/H), and channel sequencer
■ Two serial communication blocks (SCBs) supporting I
(master/slave), SPI (master/slave), or UART
serial
■ Four dedicated 16-bit timer, counter, or PWM blocks
(TCPWMs)
■ LCD drive supported on all GPIOs (common or segment)
■ Programmable low voltage detect (LVD) from 1.8 V to 4.5 V
2
■
I S master interface
■ Bluetooth Low Energy protocol stack supporting generic
access profile (GAP) Central, Peripheral, Observer, or
Broadcaster roles
■
Switches between Central and Peripheral roles on-the-go
■ Standard Bluetooth Low Energy profiles and services for
interoperability
■ Custom profile and service for specific use cases
Benefits
The CYBLE-212020-01 module is provided as a turnkey
solution, including all necessary hardware required to use BLE
communication standards.
■ Proven hardware design ready to use
■ Cost optimized for applications without space constraint
■
Reprogrammable architecture
■ Fully certified module eliminates the time needed for design,
development and certification processes
■ Bluetooth SIG qualified with QDID and Declaration ID
■ Flexible communication protocol support
™
■ PSoC Creator
environment (IDE) to configure, develop, program, and test a
BLE application
• San Jose
CYBLE-212020-01
Bluetooth 4.2 Module
provides an easy-to-use integrated design
,
CA 95134-1709 •
Revised April 21, 2016
2
C
408-943-2600
