Lps Board Jumper Connections - Analog Devices EVAL-AD2428WD1BZ User Manual

Jumper
JP1 (A2B power)
JP2
JP3
JP4 (BOOT)
JP5 (BCLK)
JP6 (SYNC)
JP7 (DRX0)
JP8 (DRX1)
JP9 (DTX1)
JP10 (DTX0)
JP11 (ADMP621 CLK)
JP12 (NTC)
JP13 (A2B_REG)
JP14 (VOLTAGE)
JP19 (1961 BCLK)

LPS board Jumper Connections

LPS
Install -
Uninstall
Install when phantom power or hybrid power support is required
Uninstall
Install Self-Boot option disabled
AD2428_BCLK -> ADAU1452_BCLK_OUT0 & ADAU1452_BCLK_IN0
3-4-5

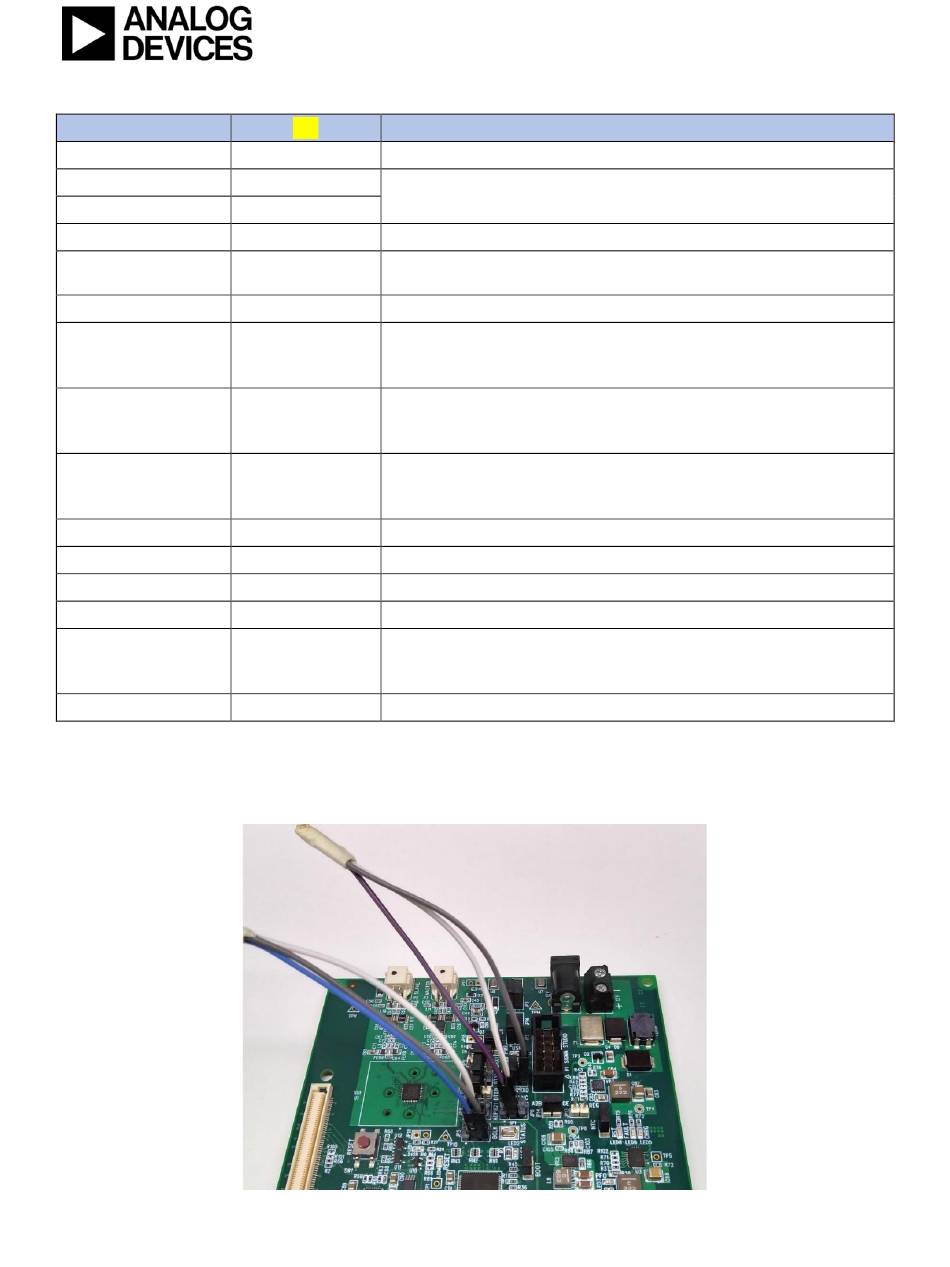

(Use a three-way wire connector – See picture below)
JP5(3-4) & JP7(5) AD2428_SYNC -> ADAU1452_LRCLK_OUT0 & ADAU1452_LRCLK_IN0
ADAU1452_SDATA_OUT0 -> AD2428_DRX0
3-4 JP7.5 should be connected to SYNC signals on JP6.3 & JP6.4
(Use a three-way wire connector – See picture below)
ADAU1452_SDATA_OUT1 -> AD2428_DRX1
2-3 If Secondary Rx data line DRX1 is desired. Uninstall if only primary
data line DRX0 is required.
AD2428_DTX1 -> ADAU1452_SDATA_IN1
3-4 If Secondary Tx data line DTX1 is desired. Uninstall if only primary
data line DTX0 is required.
1-2 AD2428_DTX0 -> ADAU1452_SDATA_IN0
-
Uninstall
-
Install
-
Uninstall
Install depending on VIN requirement.
Uninstall Installed -> VIN = 7V
Uninstalled -> VIN = 8V
1-2 ADAU1761 MCLK from CLKOUT of ADAU1452
