IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
D.
Stretcher
2 pcs.
Hardware List
Tool(s) required for assembly:
Home Styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
5411-88

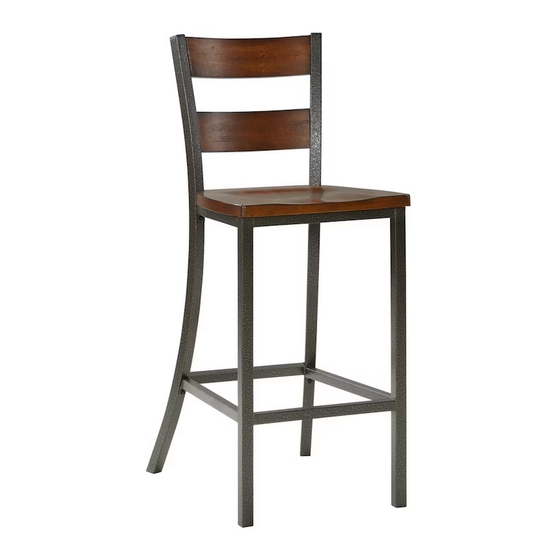

Bar Stool
B.
Leg
1 pc.
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Phillips screwdriver
C.
Leg
1 pc.
M6x16
Head Cap Bolt
8 pcs. (+1 extra)
Spring Washer
8 pcs. (+1 extra )
888-680-7460, 877-831-0319
E.
Back Frame
1 pc.
Flat Washer
8 pcs. (+1 extra )
M4x19
Wood Screw
4 pcs.(+1 extra)
