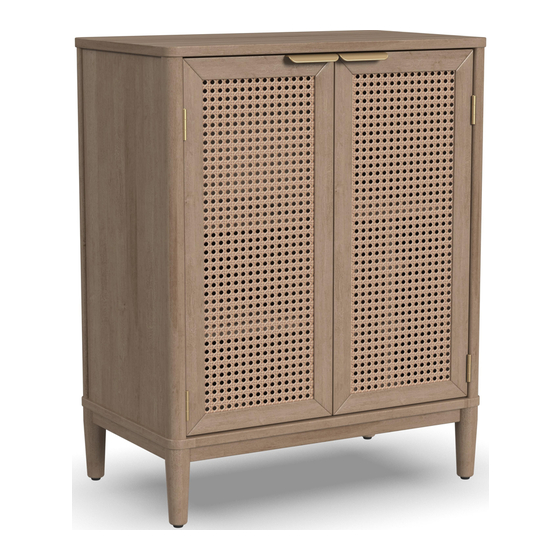

Homestyles 5580-97 Manual

Bar cabinet
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

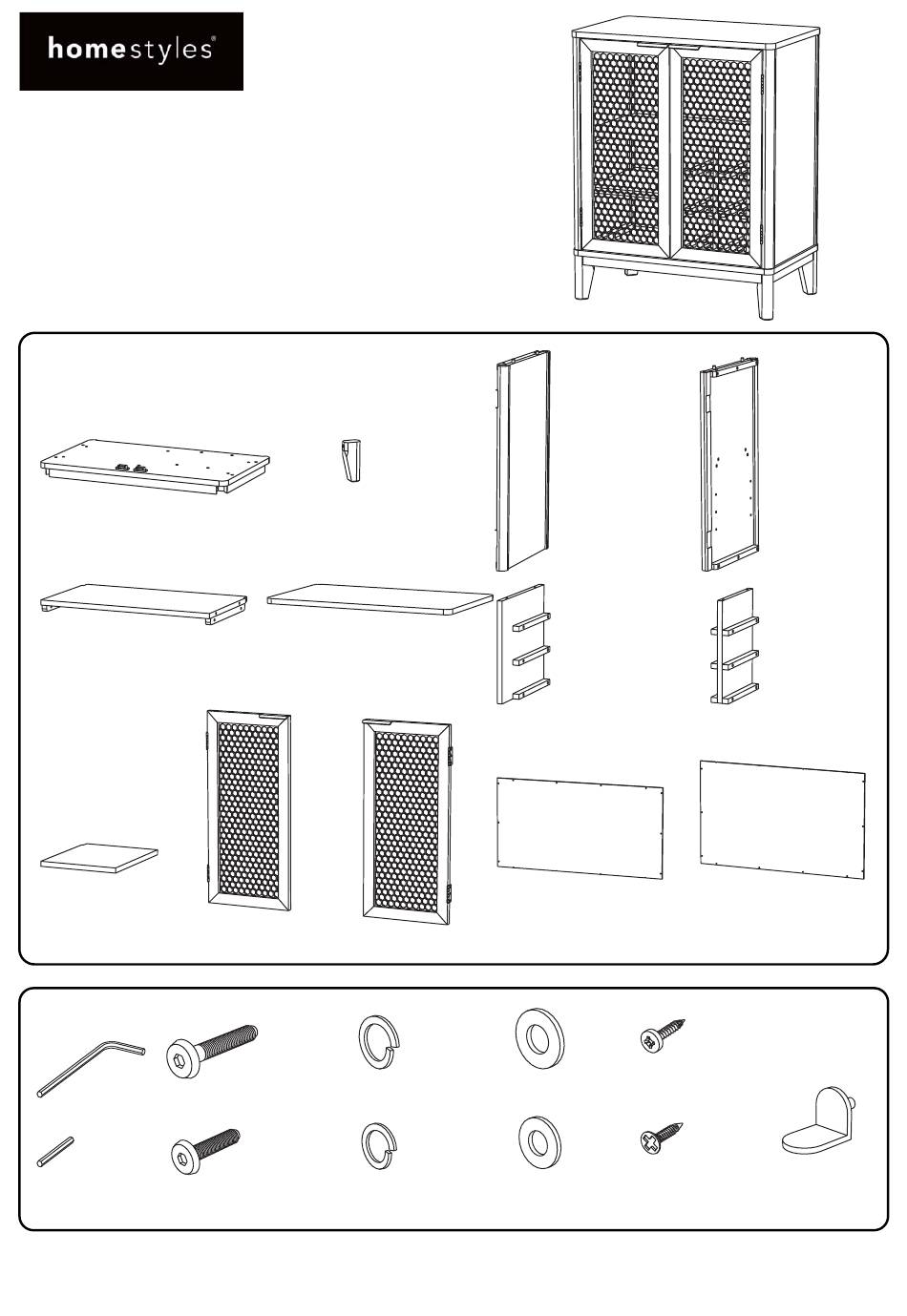

Part List
A.
Base
1 pc.
E.
Shelf
1 pc.
I.
Adjustable Shelf
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
home
5580-97
Bar Cabinet
B.
Leg
4 pcs.
F.
Top
1 pc.
J.
Door
1 pc.
M8x50
Spring Washer (large)
Head Cap Bolt (large)
4 pcs. (+1 extra)
4 pcs. (+1 extra)
M6x35
Head Cap Bolt
Spring Washer
12 pcs. (+1 extra)
12 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
Side Panel
1 pc.
G.
Middle Panel
1 pc.
K.
L.
Door
Back Panel
1 pc.
1 pc.
M3x15
Flat Washer (large)
Wood Screw
4 pcs. (+1 extra)
24 pcs. (+1 extra)
M3x15
Flat Washer
Tapered Wood Screw
12 pcs. (+1 extra)
8 pcs. (+1 extra)
888-680-7460
D.
Side Panel
1 pc.
H.
Wine Rack
2 pcs.
M.
Back Panel
1 pc.
Adjustable Pin
4 pcs. (+1 extra)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5580-97 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Homestyles 5580-97

Summary of Contents for Homestyles 5580-97

  • Page 1 5580-97 Bar Cabinet IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
  • Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/8 Head Cap Bolt Spring Washer Flat Washer STEP 3 Place Top (F) upside down on a soft cloth. Attach unit from Step 2 to Top (F) with Head Cap Bolts, Spring Washers and Flat Washers.
  • Page 4 Assembly Instructions / 4 8 Head Cap Bolt Spring Washer Flat Washer STEP 4 Attach Middle Panel (G) and Wine Racks (H) to unit. Attach unit from Step1 to unit with Head Cap Bolts, Spring Washers and Flat Washers.
  • Page 5 Assembly Instructions / 5 8 Figure 3 Adjustable Pin STEP 5 Turn unit over to its upright position. Insert Adjustable Pins into side panels at desired level. (See Figure 3) Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 4) Note: Unit must be level to work properly.
  • Page 6 Assembly Instructions / 6 8 Tapered Wood Screw STEP 6 Attach Doors (J) and (K) to unit with Tapered Wood Screws. (See Figure 5) Figure 5...
  • Page 7 Assembly Instructions / 7 8 Wood Screw STEP 10 Attach Back Panels (L) and (M) to unit with Wood Screws. (See Figure 6) Figure 6...

  • Page 8: Hardware List

    Assembly Instructions / 8 8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 11 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location.
