IMPORTANT

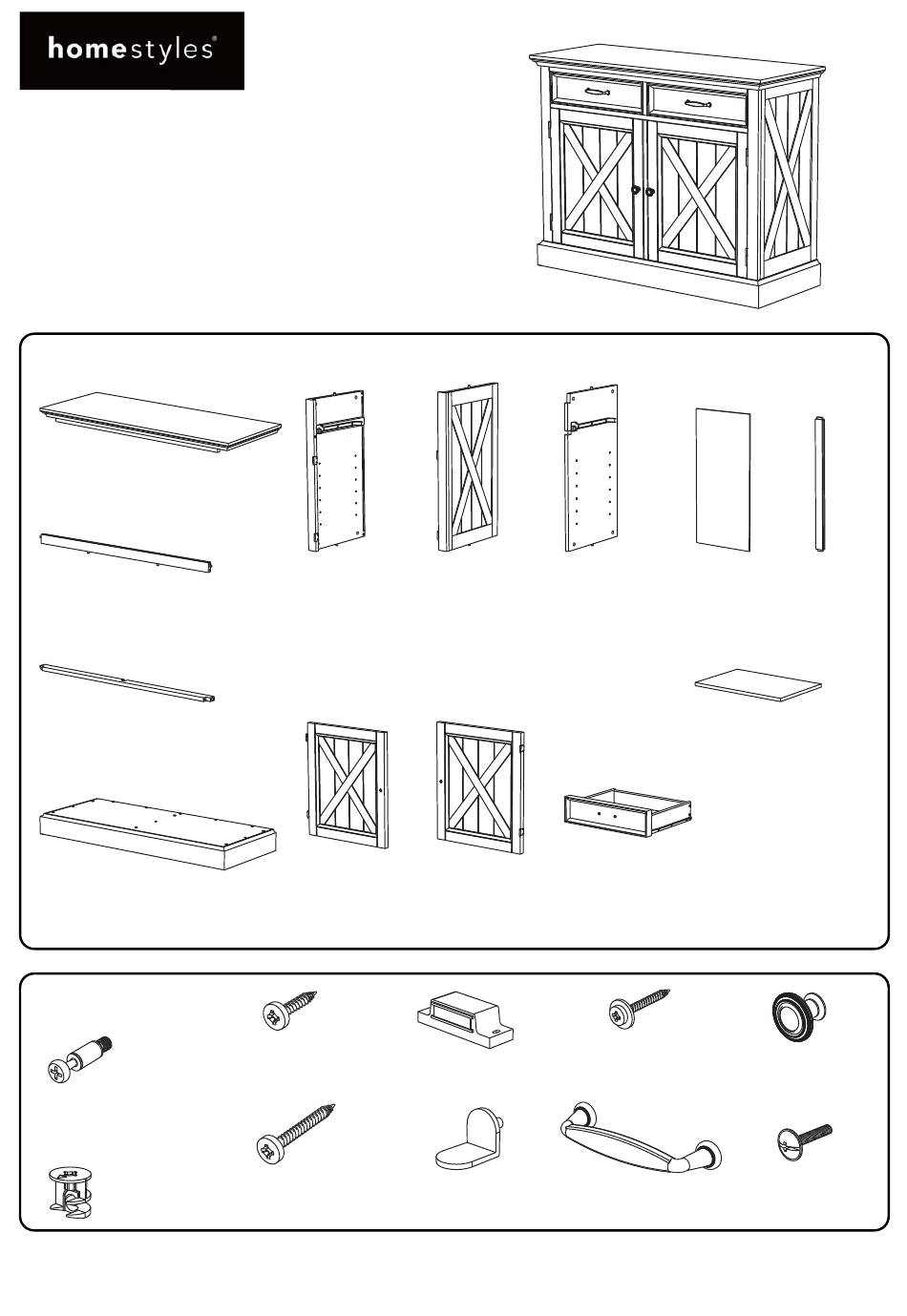

Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
A.
Top
1 pc.
G.
Stretcher
2 pcs.
H.
Front Rail
1 pc.
I.
Base
1 pc.
Cam Lock Screw
24 pcs. (+2 extra)
Cam Lock
24 pcs. (+6 extra)
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
5523-61

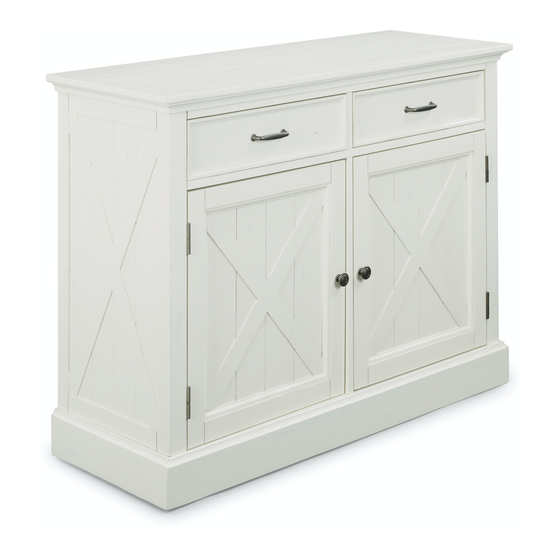

Buffet
B.
Side Panel
1 pc.
K.
Door
1 pc.
M3x15
Wood Screw (short)
Magnet
16 pcs. (+1 extra)
2 pcs.
M3x25
Wood Screw (long)
16 pcs. (+1 extra)
C.
D.
Side Panel
Middle Panel
1 pc.
1 pc.
L.
M.
Door
Drawer
1 pc.
2 pcs.
Adjustable Pin
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
E.
Back Panel
3 pcs.
J.
Shelf
4 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
M3x16
Wood Screw
12 pcs. (+1 extra)
Handle
2 pcs.
F.
Upright
2 pcs.
Knob
2 pcs.
M4x25
Machine Screw
6 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 5523-61
Summary of Contents for Homestyles 5523-61
- Page 1 5523-61 Buffet IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Cam Lock Screw Ÿ...
- Page 3 Assembly Instructions 3/7 Cam Lock STEP 3 Attach Magnets to Front Rail (H) with Wood Screws (short) into pre-drilled holes. (See Figure 3) Attach Middle Panel (D), Front Rail (H) and Side Panel (C) to unit with Cam Locks. Magnet Wood Screw (short) Magnet Wood Screw (short)
- Page 4 Assembly Instructions / 4 7 Drawer (M) Bottom STEP 5 Attach Drawer Front (M1) Wood Screw (long) Roller at back and Drawer Back (M2) to Drawer Side (M3) with Wood Screws (long). Attach Drawer Side (M4) to unit with Wood Screws (long). STEP 6 Wood Screw (short) Slide Drawer Bottom (M5) into groove.
- Page 5 Assembly Instructions 5/7 Knob Machine Screw Adjustable Pin STEP 8 Insert Adjustable Pins into middle panel and side panels at desired level. (See Figure 4) Slide Drawers (M) and Shelves (J) into position. Attach Doors (K) and (L) to unit by sliding door hinges into side panels hinges. (See Figure 5) Attach Knobs to Doors (K) and (L) with Machine Screws.
- Page 6 Assembly Instructions / 6 7 Wood Screw Cam Lock Figure 8 STEP 9 Insert Cam Locks into unit and tighten. Insert Wood Screws into pre-drilled holes in unit, then tighten. (See Figure 8) Note: Unit must be level before tightening these screws.
- Page 7 Assembly Instructions / 7 7 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 10 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location.
- Page 8 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
