IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
B.
Side Frame
1 pc.
D.
Middle Panel
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level
home
5412 15
-

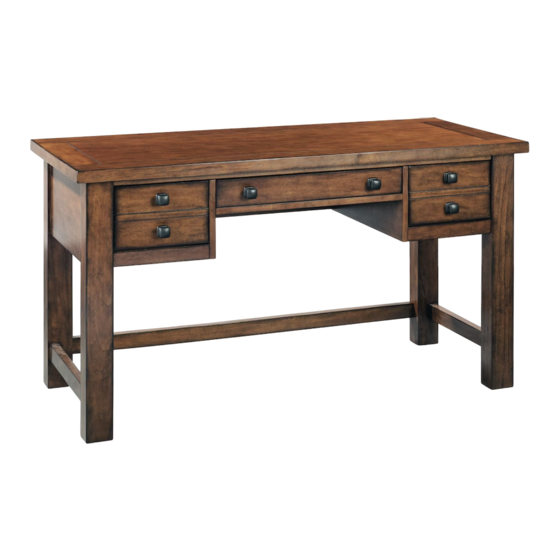

Executive Desk
C.
Side Frame
1 pc.
E.
Middle Panel
1 pc.
M6x32
Cam Lock
Head Cap Bolt
8 pcs. (+1 extra)
17 pcs. (+1 extra)
M3x15
Cam Lock Screw
Wood Screw
8 pcs. (+2 extra)
6 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
F.
Back Panel
1 pc.
G.
Back Rail
1 pc.
H.
Front Rail
1 pc.
I.
Front Rail
1 pc.
J.
Front Rail
2 pcs.
Spring Washer
17 pcs. (+1 extra)
M4x38
Wood Screw (long)
2 pcs. (+1 extra)
888-680-7460
K
Drawer
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
L
Keyboard Front
1 pc.
M.
Keyboard
1 pc.
Flat Washer
Knob
17 pcs. (+1 extra)
6 pcs.
M4x19
M4x25
Machine Screw
Machine Screw (long)
8 pcs.
4 pcs.
Advertisement
Related Manuals for Homestyles 5412 15
Summary of Contents for Homestyles 5412 15
- Page 1 5412 15 Executive Desk IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/6 STEP 3 Head Cap Bolt Spring Washer Flat Washer Place Top (A) upside down on a soft cloth. Attach unit and Front Rail (H) to Top (A) with Flat Washers, Spring Washers and Head Cap Bolts. Flat Washer Spring Washer Head Cap Bolt Cam Lock...
- Page 4 Assembly Instructions 4/6 Flat Washer Spring Washer Head Cap Bolt Wood Screw (long) Figure 4 Cam Lock STEP 5 Attach Back Rail (G) to unit with Wood Screw (long). (See Figure 4) Attach Side Frame (B) to unit with Flat Washers, Spring Washers, Head Cap Bolts, Cam Locks and Wood Screw (long).
- Page 5 Assembly Instructions 5/6 Drawer (K) STEP 7 Attach Drawer Sides (K3) and (K4) to Drawer Back (K2), then flip Locks. (See Figures 7 and 8) Roller at back Lock Figure 7 Figure 8 STEP 8 Slide Drawer Bottom (K5) into groove. Attach Drawer Front (K1) to unit, then flip Locks.
- Page 6 Assembly Instructions 6/6 STEP 10 Turn unit from Step 5 over to its upright position. Slide Drawers (K) and keyboard into position. Note: To remove keyboard in future, push plastic lever on left side up, push plastic lever on right side down and pull open. (See Figures 9 and 10) Level unit by adjusting the adjustable levelers on bottom of unit.
- Page 7 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
