IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
S.
Shelf
4 pcs.
E.
Base
1 pc.
For assembly see instructions in carton 5427 692.
home

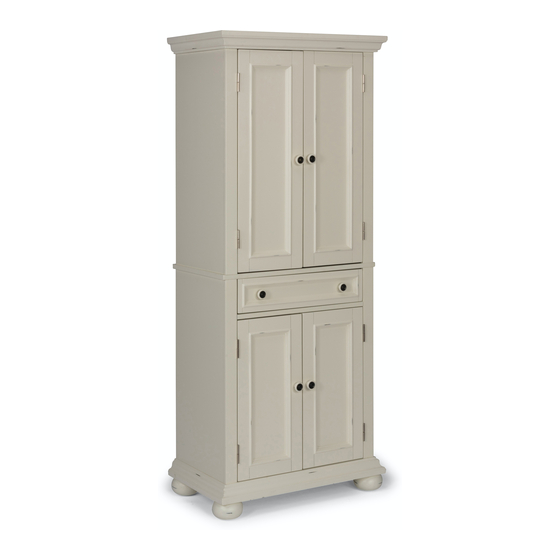

5427-691
Pantry
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
D.
Middle Panel
1 pc.
T.
Drawer
1 pc.
Refer to 5427 692
-
instructions for drawer assembly.
-
888-680-7460
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 5427-691
Summary of Contents for Homestyles 5427-691
- Page 1 5427-691 Pantry IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
-
Page 2: Part List
5427-692 Pantry IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List Side Panel Side Panel... - Page 3 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Lock Ÿ Do not tighten all the screws until each part is properly assembled. Ÿ...
- Page 4 Assembly Instructions 3/7 STEP 3 Place Base (E) upside down on a soft cloth. Attach Feet (F) to Base (E). Lock STEP 4 Turn over base unit to its upright position. Attach unit from Step 2 to base unit, then flip Locks. Attach Middle Panel (D) to unit, then flip Locks.
- Page 5 Assembly Instructions 4/7 STEP 6 Attach Rail (N) to Side Panel (G), then flip Lock. Slide Back Panel (K) into position. Attach Upright (L) to unit. Slide Back Panel (K) into position. Attach Rail (N) to unit, then flip Lock. Attach Side Panel (H) to unit, then flip Locks.
- Page 6 Assembly Instructions 5/7 Drawer (T) STEP 8 Attach Drawer Sides (T3) and (T4) to Drawer Back (T2), then flip Locks. (See Figures 5 and 6) Lock STEP 9 Figure 5 Figure 6 Slide Drawer Bottom (T5) into groove. Attach Drawer Front (T1) to unit, then flip Locks. Machine Screw Knob Lock...
- Page 7 Assembly Instructions 6/7 STEP 11 Place Shelves (S) into position. Attach Doors (O), (P), (Q) and (R) to unit by sliding door hinges into side panel hinges. (See Figure 7) Attach Knobs to Doors (O), (P), (Q) and (R) with Machine Screws (long). Attach Top (A) to unit, then flip Locks.
- Page 8 Assembly Instructions 7/7 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 13 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. at top of unit on wall 3/8”...
- Page 9 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
