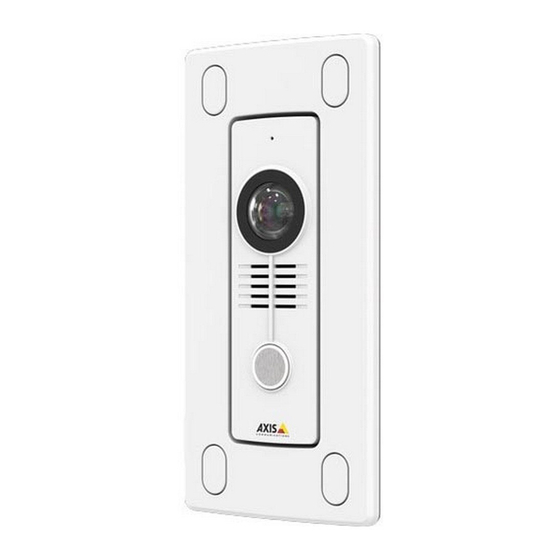

AXIS A8105-E installation

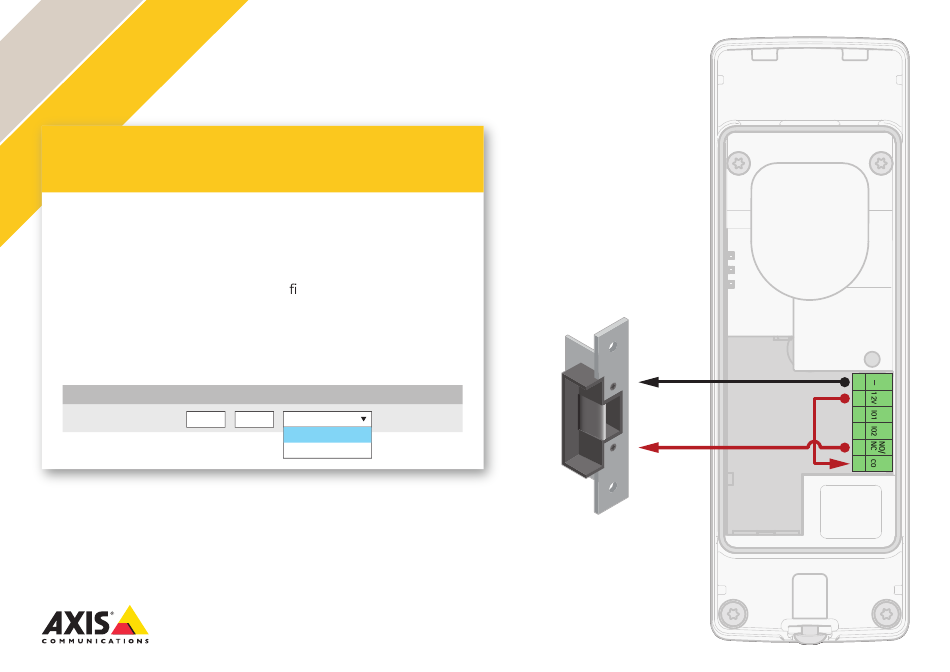

Relay powered by PoE (12V)
Configure relay state in AXIS A8105-E built-in
web pages
1.
To check relay state, go to:
Setup > System Options > Ports & Devices > I/O ports
2.
Depending on your lock type, con gure the following values
for RELAY, and click Save.
Open circuit for a fail-secure lock
Closed circuit for a fail-safe lock
I/O
Port Type
Name
RELAY
Relay
Door
Usage
Normal state is...
Current Status
Door
Open circuit
Open circuit
Open circuit
Closed circuit
