Version 1.3, 2021-12-14
Inside frame dimensions (L x B):
- Std.: 1154 mm x 1154 mm.
- Plus: 1714 mm x 1714 mm.

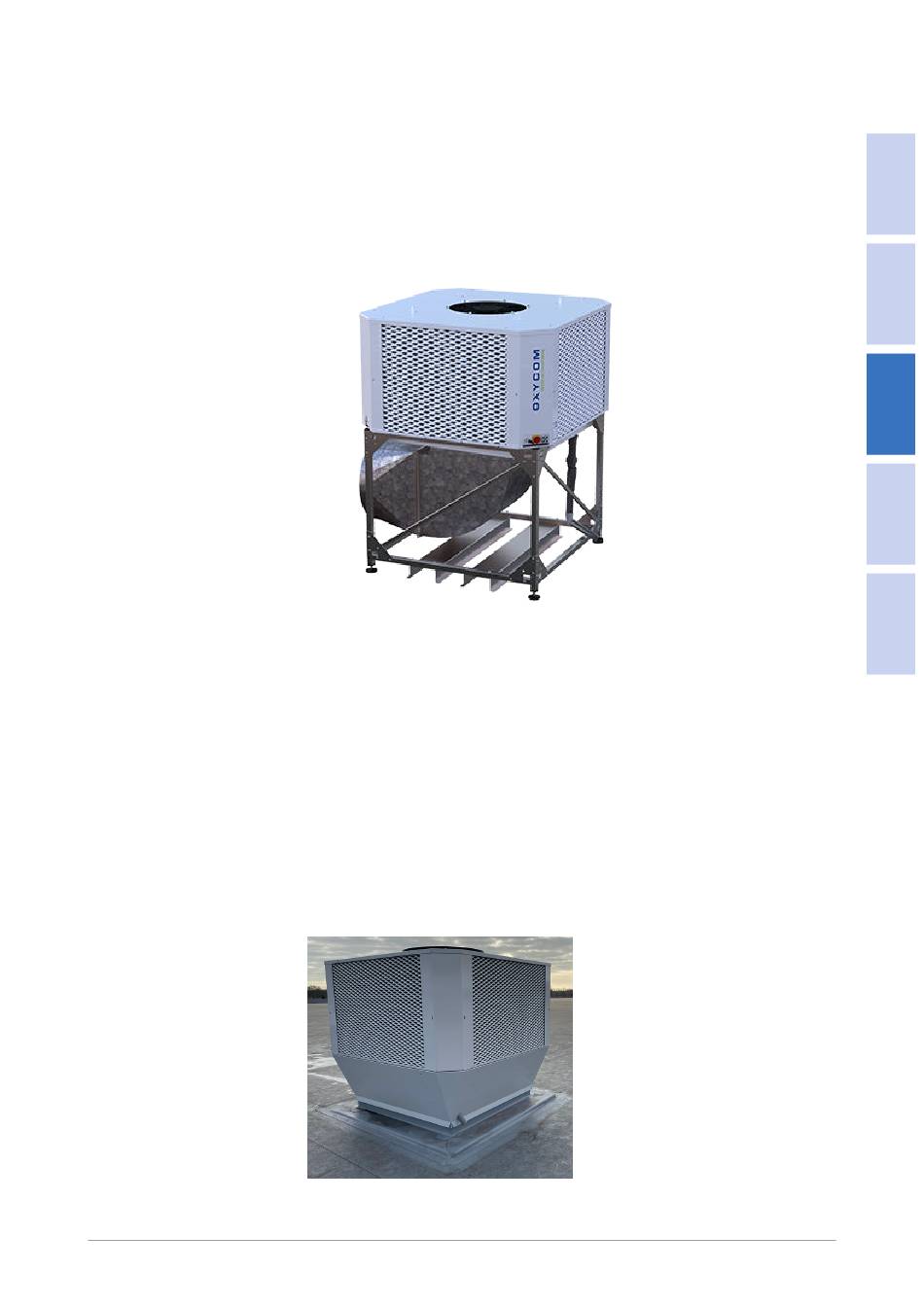

IntrCooll® on support frame

Natural ventilator

As an option a natural ventilator can be ordered at Oxycom.
Refer to the accessories brochure for more information on the natural ventilator.
Flashing kit IntrCooll® (Optional)
The IntrCooll® can also be mounted on an optional Flashing kit. This kit and
associated installation instructions are available separately from Oxycom.
IntrCooll® mounted on optional Flashing Kit
Prepare the location
1
2
3
4
5
