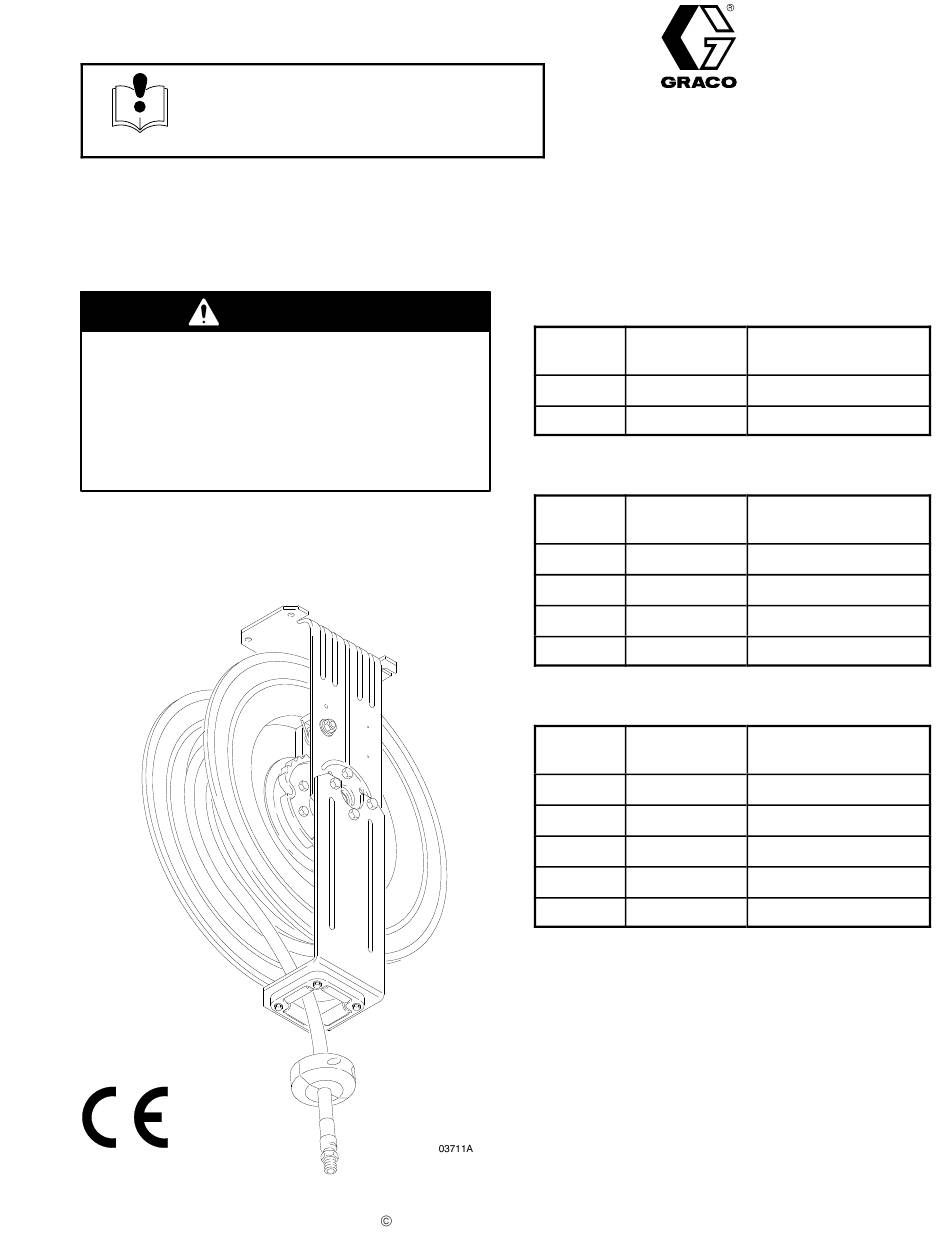

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
SERIES 350 HOSE REELS
WARNING
These hose reels are designed to dispense lube
products, air, water, transmission fluid, or
antifreeze only. Any other use of these hose
reels can cause unsafe operating conditions and
result in component rupture, fire or explosion,
which could cause serious bodily injury, including
fluid injection.
NOTE: These hose reels are for stationary mountings
only and cannot be used with enclosures.
See page 2 for the Table of Contents.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Low Pressure, Standard Mount
Models
238–211
238–213
Medium Pressure, Standard Mount
Models
237–020
237–021
237–022
238–209
High Pressure, Standard Mount
Models
237–030
237–031
237–032
237–033
237–034
COPYRIGHT 1990, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308–400
Supersedes Rev. D
Includes PCN E changes
Hose Length
Maximum Working
Pressure
40 ft (12.2 m)
180 psi (12.4 bar)
60 ft (18.3 m)
180 psi (12.4 bar)
Hose Length
Maximum Working
Pressure
none
1800 psi (126 bar)
40 ft (12.2 m)
1800 psi (126 bar)
50 ft (15.2 m)
1800 psi (126 bar)
50 ft (15.2 m)
1800 psi (126 bar)
Hose Length
Maximum Working
Pressure
none
8000 psi (560 bar)
40 ft (12.2 m)
5000 psi (350 bar)
50 ft (15.2 m)
5000 psi (350 bar)
40 ft (12.2 m)
4000 psi (280 bar)
50 ft (15.2 m)
4000 psi (280 bar)
Rev. E
