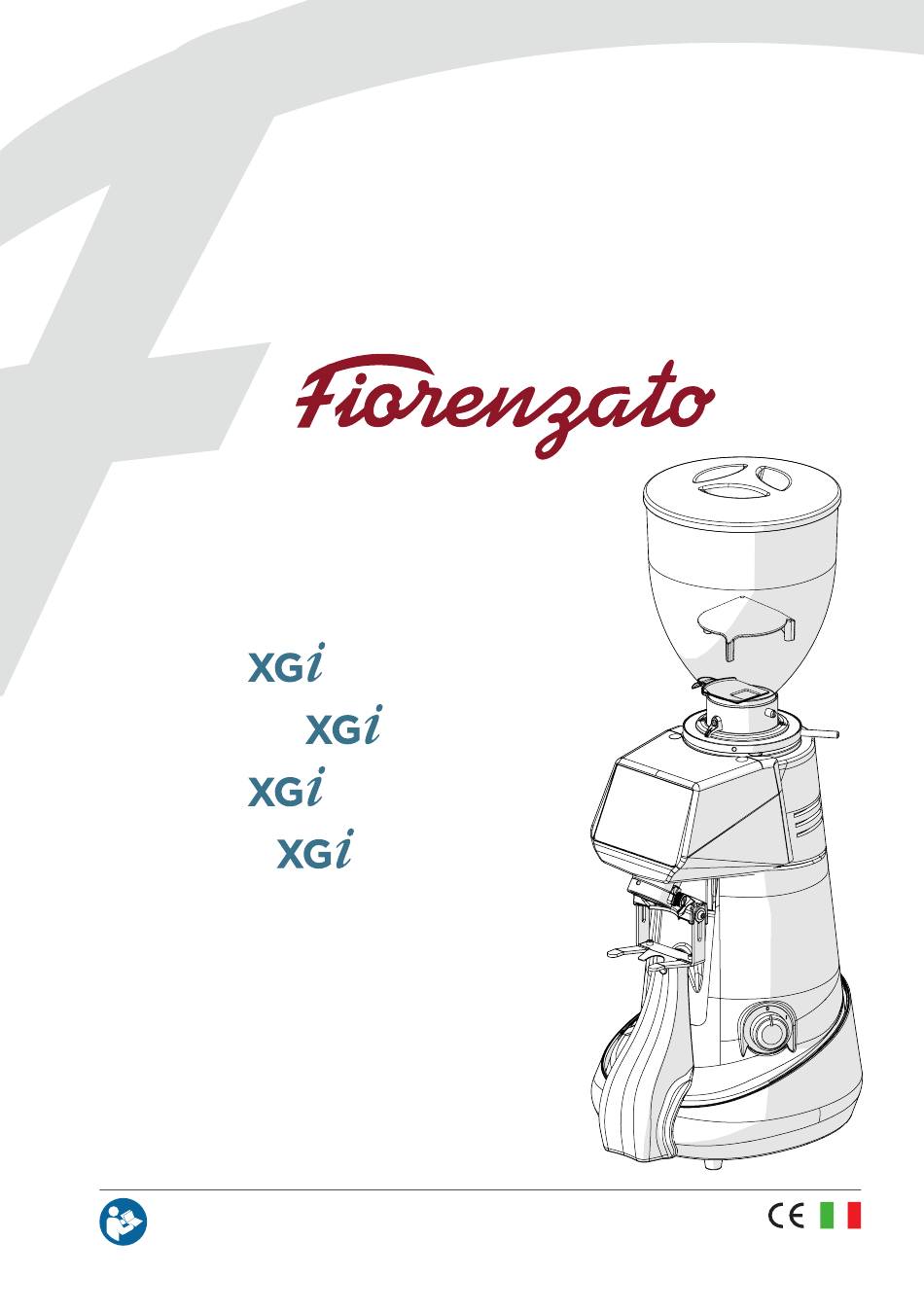

- Page 1 Electronic coffee grinder-doser Installation, operation and maintenance manual TRANSLATION OF THE ORIGINAL INSTRUCTIONS Read these instructions carefully before using for the first time. Rev_00 Ed_04/2022...
- Page 2 Series 2 / 52 Fiorenzato | Series_00 Ed. 04/2022...
-
Page 3: Table Of Contents
5.2 Preparing to use the grinder-doser 5.3 “Initial start-up” procedure Operator control panel 5.4.1 Home page 5.4.2 Disabling/Enabling the automatic weighing system 5.4.2.1 Disabling the automatic weighing system 5.4.2.2 Activation of the automatic weighing system 5.4.3 Settings Menu Fiorenzato | Series_00 Ed. 04/2022 3 / 52... - Page 4 Cleaning the appliance 6.1.2 Checking the power cable status 6.1.3 Thoroughly cleaning the grinding blades 6.1.4 Shutting down the grinder-doser 6.1.5 Replacing the grinding blades Supplementary maintenance ANOMALIES - CAUSES - REMEDIES REQUESTING SPARE PARTS 4 / 52 Fiorenzato | Series_00 Ed. 04/2022...
-
Page 5: General Information
The images, data, texts and descriptions included in this documentation are the property of Fiorenzato M.C. S.r.l. and reflect the state of the art of the machine at the time it was placed on the market. Fiorenzato M.C. S.r.l. is always looking for new solutions to improve its products and therefore reserves the right to make changes to the grinder-doser and related documentation over time without considering the products already sold to be inadequate and/or obsolete. -
Page 6: Warnings For The Buyer
The purchaser and all users of the grinder-doser must carefully observe all the specific warnings included in this manual. 1.4 Manufacturer’s contact details If you have any questions, please contact Fiorenzato M.C. S.r.l. at the following address: Fiorenzato M.C. S.r.l. Via Rivale, 18 - Santa Maria di Sala (VE) - ITALY Tel. +39/049 628716 - Fax. +39/049 8956200... -
Page 7: Warranty
Series 1.6 Warranty Fiorenzato M.C. S.r.l. provides a 24-month warranty for its products from the date of the sales invoice issued by Fiorenzato M.C. S.r.l.. During the warranty period, the manufacturer undertakes to repair or replace, free of charge, any parts and/or components that are originally faulty due to manufacturing defects. The warranty covering the product shall become void if: •... -
Page 8: Identification Data And Technical Specifications
Its structure must comply with certain characteristics: robustness, resistance and functionality, characteristics that are fully satisfied by all the grinder-dosers manufactured by Fiorenzato M.C. S.r.l. 2.2 Appliance identification On the left side of all grinder-dosers manufactured by Fiorenzato M.C. S.r.l., an identification label is attached, on which the following data is always shown: • Company name of Fiorenzato M.C. S.r.l. •... -
Page 9: Identification Of The Main Parts Of The Grinder-Doser
Control panel Machine/user interface display Removable ground coffee discharge tube Filter holder cup fork Machine On/Off switch Curved protective elements for scales Anti-clumping blade Cooling fan (only on mod. “EVO” and “EK”) Fig. 1 - Identification of parts Fiorenzato | Series_00 Ed. 04/2022 9 / 52... -
Page 10: Intended Use
Do not use the appliance to grind other types of food or other materials into granules. Our grinder-dosers are intended for professional use by specialised personnel, and are not for domestic use. 2.5 The models in the line and technical specifications Fiorenzato M.C. S.r.l. manufactures grinder-dosers in the line in the following models: • F64 E •... - Page 11 Adjustable fork with support Metal tamper “Red Speed” grinding blades (*) The tolerance on the weight of the dose detected by the weighing system varies proportionally to the increase or decrease in the dose. (*) Manufacturer’s settings. Fiorenzato | Series_00 Ed. 04/2022 11 / 52...
-
Page 12: Noise Level
3.2 Reasonably foreseeable misuse Fiorenzato M.C. S.r.l. accepts no liability and the warranty will be rendered null and void in the event of negligence when using the machine or failure by the user to comply with the operating instructions in this manual. -
Page 13: Precautions For Proper And Safe Use
Heavy appliance! Be careful during the phases of transport, handling and installation! Please refer to chapter 4 for proper handling of the appliance. Fiorenzato | Series_00 Ed. 04/2022 13 / 52... -
Page 14: Safety Devices On The Grinder-Doser
(Part 1), enabled each time the lock lever is pressed (Part 2), is used to inform the control system that a change in the grinding degree may have occurred since the last dose was dispensed and enables the “Dispense dose” mode. 14 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 15: Residual Risks
Fig. 5 Fig. 6 3.5 Residual risks Fiorenzato M.C. S.r.l. has taken all necessary precautions during the design phase to ensure that the grinder-doser can be used under the safest possible conditions. However, during installation, cleaning and maintenance of the appliance, there are still some residual risks that cannot be eliminated. Their effects can be prevented by appropriately training the user in accordance with the provisions set out in the table below. -
Page 16: Warning Labels Attached To The Machine
5°C and 40°C, with a relative humidity of between 30% and 90%; • if the appliance is to be stored for a long time before being installed, it should be kept in its original packaging to ensure better protection. 16 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 17: Choosing The Installation Location
ATTENTION! Packaging parts must not be left within the reach of children as they are a potential source of danger. Keep the packaging until the warranty expires. Fiorenzato | Series_00 Ed. 04/2022 17 / 52... -
Page 18: Installation And Mains Connection
If it is necessary to use power adapters, power strips or extension cables, it is mandatory to use products that comply with the certification standards in force in the country of use. • Put the grinder-doser back into the upright position and then connect the cable to the power socket provided (Fig. 9). • If present, set the thermal-magnetic circuit breaker located upstream of the power socket to the “ON” position (Fig. 10). • Turn the machine power switch to the “I” position (see Part 5.1.1). Fig. 8 Fig. 9 Fig. 10 The grinder-doser is now powered and ready for use. 18 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 19: Using The Grinder-Doser
Password”, thereby allowing access to the reserved pages of the grinder- doser management system. 5.1.1 Switch Switches the appliance on and off. • Turned to the “O” position: appliance off (power supply disconnected). • Turned to the “I” position: appliance on (electrically powered). Fiorenzato | Series_00 Ed. 04/2022 19 / 52... -
Page 20: Preparing To Use The Grinder-Doser
“Initial Start-up” procedure (§5.3) required in order to make the weighing system operational, which is enabled by default when the appliance is first switched on. Fig. 11 20 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 21: Initial Start-Up" Procedure
Wait a few seconds without touching the appliance to allow the weighing system to detect Tare weight detection the tare weight. • Wait for the “Dispense single dose” command to Do not touch the grinder-doser appear on the display. Fiorenzato | Series_00 Ed. 04/2022 21 / 52... - Page 22 Wait for the “Initial start-up successfully Do not touch the grinder-doser completed” message to appear on the display. • Press the button to return to the HOME Initial start-up successfully completed! page. • You can now use the appliance in “WEIGHT” dispensing mode. 22 / 52 Fiorenzato | Series_00 Ed. 04/2022...
-
Page 23: Operator Control Panel
HOME page, with all the function buttons required to use and manage the appliance. The management software adopted by Fiorenzato for its coffee grinder-dosers is extremely intuitive to use. This user guide will allow you to quickly become familiar with the function buttons and the various setting options on your new appliance. -
Page 24: Home Page
The HOME page can be customised from the “Settings menu”, therefore the image shown in the figure below may differ from the screen actually displayed on your appliance when it is first switched on. All the functions accessible from the “Settings menu” are described in the following paragraphs. Fig. 12 - Home page With reference to Fig. 12, the display fields and function buttons on the HOME page are: Description Display field for the current date and time. The data can be set by accessing the “Date and time” screen from the settings menu (§ 5.4.3.13). 24 / 52 Fiorenzato | Series_00 Ed. 04/2022... - Page 25 “Statistics” button. It controls the opening of the window and shows the number of doses dispensed on the current day and week, and the total number of doses dispensed since the grinder-doser was first used. To close the “Statistics” window, simply press the “Statistics” function button again. The “Statistics” button is only displayed if the “Show statistics” function has been enabled in the settings menu (§ 5.4.3.5). Fiorenzato | Series_00 Ed. 04/2022 25 / 52...
- Page 26 The function button is only displayed if the “Triple dose display” function has been enabled in the “Settings menu” (§ 5.4.3.6). Display field showing only the weight (or time) of grinding set for the triple dose, which can be hidden from the menu. 26 / 52 Fiorenzato | Series_00 Ed. 04/2022...
-
Page 27: Disabling/Enabling The Automatic Weighing System
(§5.4.2.2). If the system is disabled, the icon is not shown on the display. Warning icon. It only appears at the end of the time set by Fiorenzato to indicate the need to replace the grinding blades (§ 6.1.5). 5.4.2... -
Page 28: Settings Menu
Screen appearance • Information (§ 5.4.3.14) Screensaver Safety Settings Language • Reset dose weights (§ 5.4.3.15) • Administrator password (§ 5.4.3.16) Date and time Information Safety Settings Reset dose times Administrator password 28 / 52 Fiorenzato | Series_00 Ed. 04/2022... - Page 29 Date and time (§ 5.4.3.13) • Information (§ 5.4.3.14) Screensaver Safety Settings Language • Reset dose times (§ 5.4.3.15) Date and time • Administrator password (§ 5.4.3.16) Information Safety Settings Reset dose times Administrator password Fiorenzato | Series_00 Ed. 04/2022 29 / 52...
-
Page 30: Change Grinding Weights
96 grams, at which point grinding is automatically stopped. If the “Grinding weight display” option is disabled ( ), the dispensing weights are not displayed on the HOME page. HOME page without visible dose weights 30 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 31: Change Dose Times
25 seconds, at which point grinding is automatically stopped. If the “Grinding time display” option is disabled ( ), the dispensing times are not displayed on the HOME page. HOME page without grinding times displayed Fiorenzato | Series_00 Ed. 04/2022 31 / 52... -
Page 32: Show Statistics
“Show statistics” option is disabled. HOME page with “Statistics” button disabled 5.4.3.6 Triple dose display It enables ( ) or disables ( ) the display and management of the triple dose dispensing function button from the HOME page. HOME page with “Triple dose” button enabled 32 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 33: Xgi System
Initial Start-up paragraph 5.3. N.B. If the “ System” is enabled, the “Initial start-up” procedure can be carried out at any time, if required. Language N.B. If the “ System” is disabled, the 'Initial start-up' option is not enabled and is displayed in grey. CONFIRM START First page for “Initial start-up” procedure 5.4.3.9 Display brightness Fiorenzato | Series_00 Ed. 04/2022 33 / 52... -
Page 34: Screen Appearance
“Dark mode” or “Light mode”. Screen appearance HOME page: “Black version” Black version White version The different way in which the screens are displayed does not affect other options and/or the various parameters that can be set. HOME page: “White version” 34 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 35: Screensaver
German • Italian Spanish • English • French Portuguese • German Greek • Spanish Croatian • Portuguese • Greek Arabic • Croatian Chinese • Arabic • Chinese Korean • Korean Language selection Fiorenzato | Series_00 Ed. 04/2022 35 / 52... -
Page 36: Date And Time
“Information” page • The total number of doses dispensed since the appliance was first used; • The general counter showing the total time the appliance is actually running (working time of the grinding blade drive motor). 36 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 37: Resetting Dose Weights
If you return to the menu [ ] or load the HOME page [ ] without confirming the Reset action, the customised weights will be stored in the memory. Fiorenzato | Series_00 Ed. 04/2022 37 / 52... -
Page 38: Administrator Password
In this menu, the following options are available: - enable change in dose weights - enable display of dose weights - manual grinder - enable custom logo - total reset of statistics - grinding blade counters - initialisation - scales calibration - scales check 38 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 39: Adjusting The Degree Of Grinding
Fiorenzato | Series_00 Ed. 04/2022 39 / 52... -
Page 40: Dispensing Doses
• Dispensing by WEIGHT (with the XGi System enabled, default mode enabled). • Dispensing by TIME (with the XGi System disabled). 40 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 41: Grinder-Doser Maintenance
Fig. 13 Fig. 14 All routine maintenance for your appliance is summarised in the table below. Fiorenzato M.C. S.r.l. recommends that customers strictly follow the instructions given and carry them out within the stated times and as described. ROUTINE MAINTENANCE WORK... -
Page 42: Cleaning The Appliance
(Part 1). ATTENTION! Do not use water and/or detergents to clean the grinding chamber and grinding blades. 42 / 52 Fiorenzato | Series_00 Ed. 04/2022... - Page 43 ATTENTION! abrasive sponges and/or aggressive products that may damage the external surfaces of the machine. ATTENTION! It is forbidden to use water or steam jets to clean the machine body. Fiorenzato | Series_00 Ed. 04/2022 43 / 52...
-
Page 44: Checking The Power Cable Status
ATTENTION! If the power cable is damaged, replace it with one of the same type. 44 / 52 Fiorenzato | Series_00 Ed. 04/2022... -
Page 45: Thoroughly Cleaning The Grinding Blades
Thoroughly clean the grinding blades as described in Par. 6.1.3. • Disconnect the power supply cable from the power socket. • Cover the machine with a cloth to prevent any accumulation of dust and dirt. Fiorenzato | Series_00 Ed. 04/2022 45 / 52... -
Page 46: Replacing The Grinding Blades
Series 6.1.5 Replacing the grinding blades The scheduled deadline for replacing the grinding blades is set by Fiorenzato M.C. S.r.l. depending on the type of grinders and the grinder-doser model. At the end of the time set by the manufacturer, the warning icon “ ” appears on the display, indicating that they need to be replaced. -
Page 47: Anomalies - Causes - Remedies
(Blue scales). • The doses dispensed after recalculation will be correct and will be indicated by the appearance of the icon (Green scales). Fiorenzato | Series_00 Ed. 04/2022 47 / 52... - Page 48 Notification of successful recalculation is indicated by the appearance of the icon (Blue scales). The doses dispensed after recalculation will be correct and will be indicated by the appearance of the icon (Green scales). 48 / 52 Fiorenzato | Series_00 Ed. 04/2022...
- Page 49 6.1.5. grinding blades. • Once they have been replaced, the specialist technician resets the time counter for the grinding blades. Fiorenzato | Series_00 Ed. 04/2022 49 / 52...
- Page 50 Fiorenzato M.C. S.r.l. service department or have the appliance repaired or overhauled by a specialised technician.
-
Page 51: Requesting Spare Parts
Select the necessary spare parts using the exploded view tables of the product on the portal. • Follow the guided procedure to complete their order and send it to Fiorenzato M.C. S.r.l.. • The local distributor will be contacted by personnel of Fiorenzato M.C. S.r.l., who will take care of the request. - Page 52 Fiorenzato M.C. S.r.l. Via Rivale, 18 - Santa Maria di Sala (VE) - ITALY Tel. +39/049 628716 - Fax. +39/049 8956200 info@fiorenzato.it - www.fiorenzato.it...
