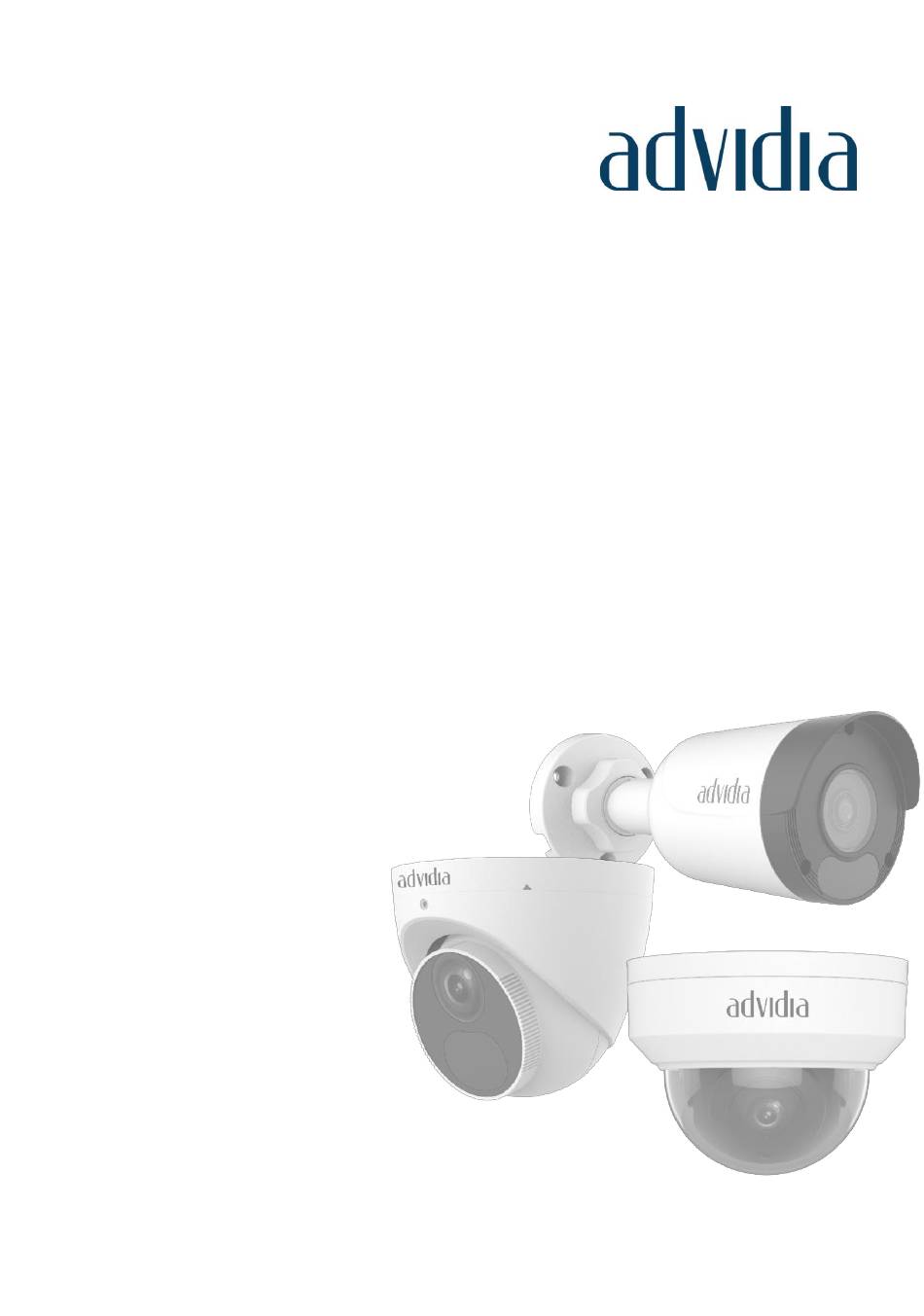

- Page 1 M-24-FW-T M-26-FW M-29-FW 2MP Network Cameras User Manual...
-
Page 2: Table Of Contents
Lighting type ........................22 OSD Setting ........................... 22 Privacy Mask ........................23 Video Configuration ......................24 ROI ............................ 26 Media Stream configuration ..................... 27 Media Stream ........................ 27 RTSO Multicast Address ....................27 Security ..........................28 User Management ......................28 https://i-pro.com/global/en/surveillance/advidia... - Page 3 Importing and Exporting System Configuration File ............32 Collecting Diagnosis Information ..................33 Focus Configuration ......................34 Live view ........................34 Live View Toolbar ......................35 Viewing Certain Area of images ..................36 Appendix A Glossary ....................... 37 Appendix B FAQ ......................38 https://i-pro.com/global/en/surveillance/advidia...
-
Page 4: Disclaimer
The ultimate right to interpretation resides in our company. Environmental Protection This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed. https://i-pro.com/global/en/surveillance/advidia... -
Page 5: Symbols
After the camera is started, you can access the camera from a PC client installed with a web browser or the client software Advidia Guard. Internet Explorer (IE) is a recommended web browser. For more information about Advidia Guard, refer to the Advidia Guard User Manual. - Page 6 The IP address 192.168.1.13in this example is the default IP address. Please replace it with the actual address of your camera if it has been changed. 3. (Optional) Modify user access control settings Before you access the camera, follow the steps to set User Account Control Settings to Never notify. https://i-pro.com/global/en/surveillance/advidia...
-
Page 7: Logging In To The Web Interface
DHCP is turned on by default. If a DHCP server is used in the network, the IP address of your camera may be assigned dynamically, and you need to use the correct IP address to log in. Use the Advidia Guard client to view the dynamic IP address of your camera. -
Page 8: Introduction To The Web Interface
Log out and log in again to the Web using the new IP address. Set the system time. Set the system time based on the actual situation. Set the management server based on the actual (Optional) Set the management server. networking. https://i-pro.com/global/en/surveillance/advidia... -
Page 9: Configuring Parameters
Set local parameters for your PC. NOTE! The local parameters may vary with models. Please see the actual Web interface for details. 1. Select Setup>Common>Local Parameters 2. Modify the settings as required. The following table describes some major parameters. https://i-pro.com/global/en/surveillance/advidia... -
Page 10: Network Configuration
NOTE! After you have changed the IP address, you need to use the new IP address to log in. The configurations of DNS (Domain Name System) server are applicable when the device is accessed by domain name. Static Address https://i-pro.com/global/en/surveillance/advidia... -
Page 11: Port
If a DHCP server is deployed in the network, the camera can automatically obtain an IP address from the DHCP server. To manually configure DHCP, follow the steps below: 1. Click Setup>Network>Network 2. Select DHCP from the Obtain IP ADDRESS drop-down list 3. Click Save Port https://i-pro.com/global/en/surveillance/advidia... -
Page 12: Port Mapping
2. Enable Port Mapping and select mapping type. If Manual is selected, then external ports must be configured (external IP is obtained automatically by the camera). If the configured port is occupied, then the Status will show Inactive. 3. Click Save 1. Click Setup>Network>DNS 2. Set DNS server addresses. https://i-pro.com/global/en/surveillance/advidia... -
Page 13: Ddns
Set image parameters to achieve the desired image effects based on live video in different scenes. Click Setup>Image>Image. The scene management page for some models is displayed as follows, you can select the desired scene in the drop-down list. https://i-pro.com/global/en/surveillance/advidia... - Page 14 WDR:recommeded for scenes with high-contrast lighting, such as window, corridor, front dooror other scenes that are bright outside but dim inside. Custom: set a scene name as needed. Face: Capture faces in motion in complicated scenes. Auto Switching Indicates whether to add a scene to the auto-switching list. https://i-pro.com/global/en/surveillance/advidia...
-
Page 15: Image Enhancement
If multiple non-default scenes are triggered, then the device will switch to the scene with the minimum number (starts from 1 to 5). Image Enhancement NOTE! This function may vary with models. Please see actual Web interface for details. Click Setup>Image>Image and then click Image Enhancement. https://i-pro.com/global/en/surveillance/advidia... - Page 16 Set the degree of difference between the blackest pixel and the whitest pixel. Low contrast High contrast Sharpness Contrast of boundaries of objects in an image. Low sharpness High sharpness Reduce the noise of images. The function may cause image blurring. Noise Reduction https://i-pro.com/global/en/surveillance/advidia...
-
Page 17: Exposure
90°Clockwise 90°Anti-clockwise To restore default settings in this area, click Default. Exposure NOTE! This function may vary with models. Please see actual Web interface for details. The default settings are scene adaptive. Use default settings unless modification is necessary. https://i-pro.com/global/en/surveillance/advidia... - Page 18 You can set this parameter only when Exposure Mode is not set to Shutter Priority and when Image Stabilizer is disabled. Slowest Shutter Set the slowest shutter speed that the camera can use during exposure. Note: You can set this parameter only when Slow Shutter is set to On. https://i-pro.com/global/en/surveillance/advidia...
- Page 19 In the case of low contrast, it is recommended to disable WDR or use level 1-6. Suppress WDR When enabled, the camera can automatically adjust slow shutter frequency Stripes according to the frequency of light to minimize stripes that may appear in images. 3. To restore the default settings, click Default. https://i-pro.com/global/en/surveillance/advidia...
-
Page 20: Smart Illumination
0 means that the IR light is turned off. Note: You can set this parameter only when Control Mode is set to Manual. 3. To restore the default settings, click Default 4. Click Setup>Image>Image and then click White Balance. https://i-pro.com/global/en/surveillance/advidia... -
Page 21: Advanced
2. Enable the defog function and then select a level for the scene. Level 9 achieves the maximum defog effects, and level 1 achieves the minimum. https://i-pro.com/global/en/surveillance/advidia... -
Page 22: Lighting Type
On Screen Display (OSD) is the text displayed on the screen with video images and may include time and other customized contents. NOTE! This function may vary with models. Please see the actual Web interface for details. 1. Click Setup>Image>OSD. https://i-pro.com/global/en/surveillance/advidia... -
Page 23: Privacy Mask
On certain occasions, you may need to set a mask area on the camera image to protect privacy, for example, the keyboard of an ATM machine. When PTZ changes its position or zooms, the Privacy Mask will be adjusted accordingly to protect the area all along. https://i-pro.com/global/en/surveillance/advidia... -
Page 24: Video Configuration
To determine if your camera supports this function, see the Web interface. After enabling the sub or third stream, modify the parameters as required. The parameters for the sub and third stream have the same meanings as that for the mainstream. https://i-pro.com/global/en/surveillance/advidia... - Page 25 Basic Mode: The actual bit rate is around 3/4 of the set bit rate. Advanced Mode: The actual bit rate is around 1/2 of the set bit rate. Note: When U-Code is enabled, video compression only supports H.264 and H.265. MJPEG is not supported. https://i-pro.com/global/en/surveillance/advidia...
-
Page 26: Roi
This function is not supported by some models. Please see the actual model for details. 2MP camera model supports up to 8 ROI areas. 1. Click Setup>Video>ROI 2. Click , and then drag the mouse to cover the intended part of the images. To delete, select the area and then click https://i-pro.com/global/en/surveillance/advidia... -
Page 27: Media Stream Configuration
3. To delete a stream, click 4. Click Submit to complete the operations. RTSO Multicast Address After an RTSP multicast address is configured, the third-party player can request the RTSP multicast media stream from the camera through the RTP protocol. https://i-pro.com/global/en/surveillance/advidia... -
Page 28: Security
RTSP authentication on the Web interface 1. Click Setup>Security> Network Security>Authentication. 2. Select an authentication mode and then click Save. Hide vendor information You can set to hide the vendor information of the network camera on the Web interface. https://i-pro.com/global/en/surveillance/advidia... -
Page 29: Arp Protection
IP Address Filtering Use IP address filtering to allow or forbid access from specified IP address(es). NOTE! This function is not supported by some models. Please see the actual model for details. 1. Click Setup>Security > Network Security>IP Address Filtering. https://i-pro.com/global/en/surveillance/advidia... -
Page 30: Access Policy
2. Select On to enable watermark, and then input watermark content. 3. Click Save. Setting the System Time You can use the following methods to adjust the system time of your device. 1. Manually Setting or Synchronizing the System Time https://i-pro.com/global/en/surveillance/advidia... -
Page 31: Synchronizing With The Ntp Server
3. Click Save. The camera will periodically synchronize time with the NTP server. Setting the DST 1. Click Setup>Common>Time, and then click the DST tab. 2. Select On for DST, set the start time, end time, and DST bias. 3. Click Save. System Maintenance 1. Click Setup>System>Maintenance. https://i-pro.com/global/en/surveillance/advidia... -
Page 32: Restarting The System
Export the current configurations of the camera and save them to the PC or an external storage medium. You can also quickly restore configurations by importing backup configurations stored on the PC or an external storage medium back to the camera. https://i-pro.com/global/en/surveillance/advidia... -
Page 33: Collecting Diagnosis Information
WinRAR and then open the file using a text editor. By selecting Collect Image Debugging Info, you can display video with debugging information at the same time, which makes troubleshooting easier. https://i-pro.com/global/en/surveillance/advidia... -
Page 34: Focus Configuration
Live view means playing live video (real-time audio and video) received from a camera in a window through the Web interface. If you log in with the Live View check box selected, live video appears by default when you are logged in. You may double-click the window to enter or exit full screen mode. https://i-pro.com/global/en/surveillance/advidia... -
Page 35: Live View Toolbar
If the mouse cursor rests on the window for around 3 seconds or leaves the window, the information disappears. Click this button to open the image setting page. https://i-pro.com/global/en/surveillance/advidia... -
Page 36: Viewing Certain Area Of Images
Digital zoom enlarges an image with loss in image quality, while 3D positioning enlarges an image without. Using Digital Zoom NOTE! The supported live view operations may vary with camera model. For the operations that your camera supports, see the Web interface. https://i-pro.com/global/en/surveillance/advidia... -
Page 37: Appendix A Glossary
Network Time Protocol On Screen Display Power over Ethernet PPPoE Point-to-Point Protocol over Ethernet Pan, Tilt, Zoom Region of Interest SMTP Simple Mail Transfer Protocol Secure Socket Layer Universal Network Passport Universal Serial Bus Variable Bit Rate Wide Dynamic Range https://i-pro.com/global/en/surveillance/advidia... -
Page 38: Appendix B Faq
Run as administrator, and then install it according to instructions. What to do if live video fails when I log in for the first time Answer: Close the firewall on your PC and then log in to the Web interface again. https://i-pro.com/global/en/surveillance/advidia...
