Vision™ OPLC™ V1040-T20B
Panel Mounting
Before you begin, note that the mounting panel cannot be more than 5 mm thick.

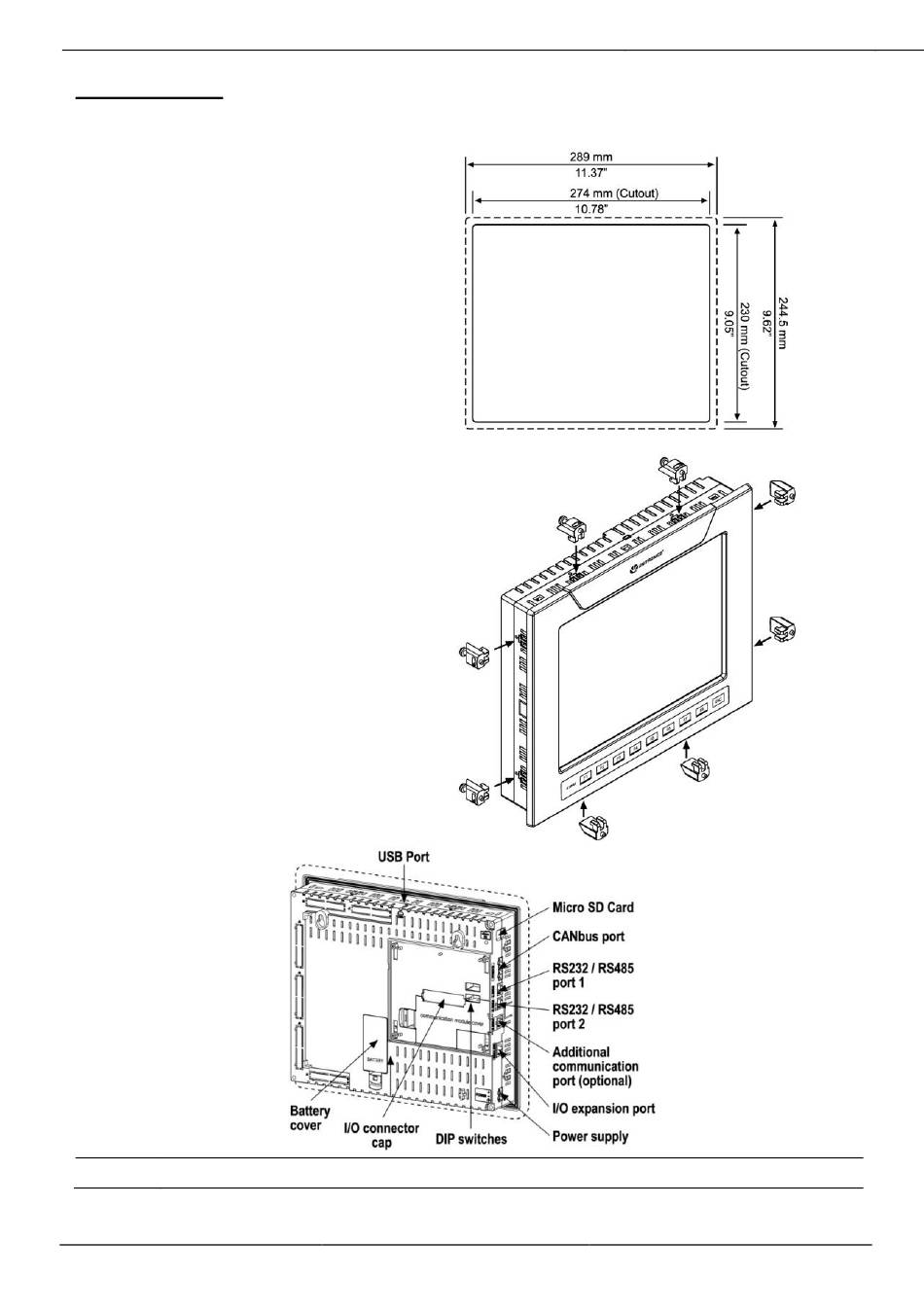

1. Make a panel cut-out according to
the dimensions in the figure to the
right.
2. Slide the controller into the cut-
out, ensuring that the rubber seal
is in place.
3. Push the 8 mounting brackets into
their slots on the sides of the
controller as shown in the figure to
the right.
4. Tighten the bracket screws
against the panel. Hold the
bracket securely against the unit
while tightening the screw.
5. When properly mounted, the
controller is squarely situated in
the panel cut-out as shown below.
▪ The necessary torque is 0.45 N·m (4.5 kgf·cm).
