Courtyard Creations KTS8896-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

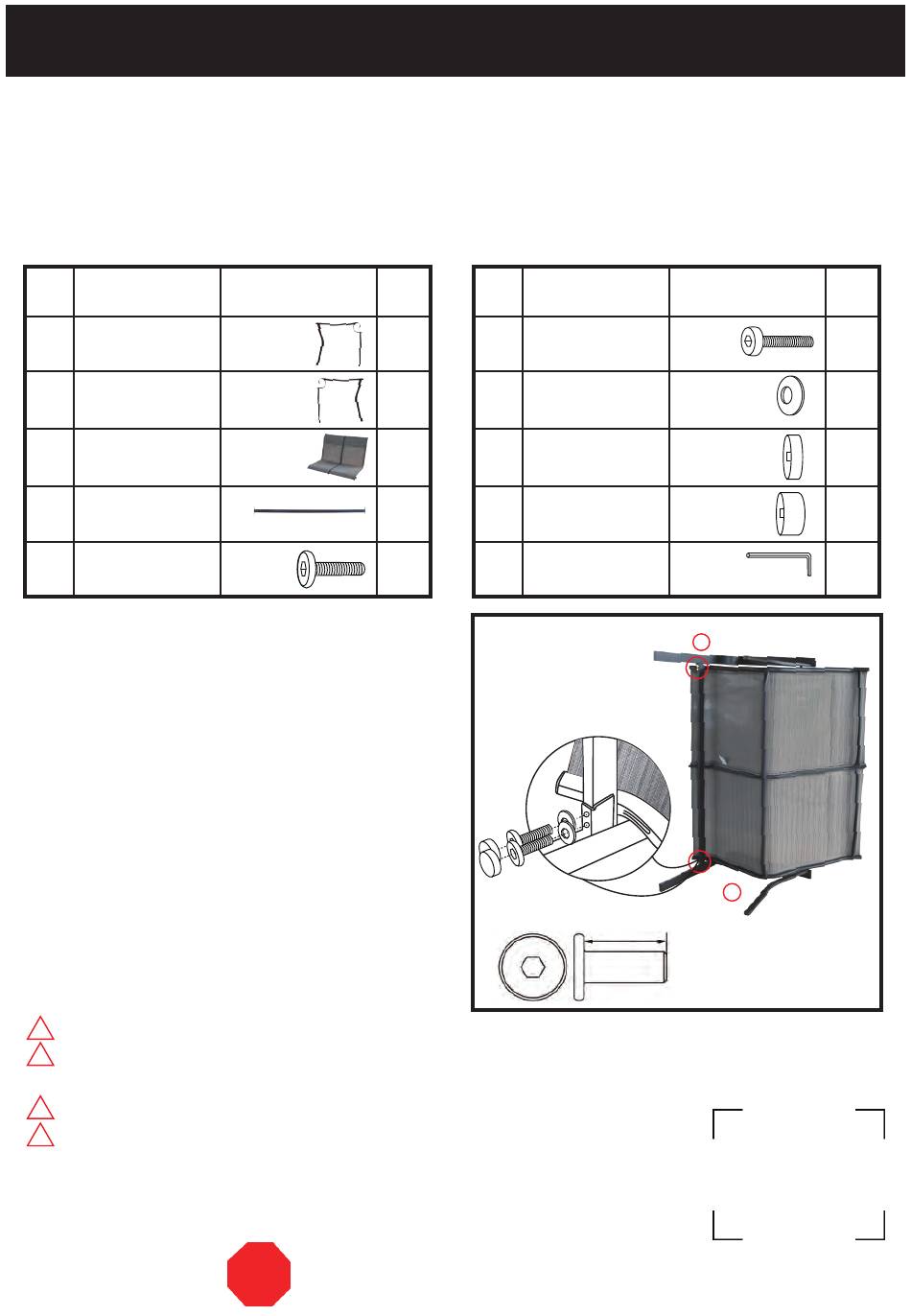

PARTS LIST

PART
MATERIAL CODE
NO.
1
KTS8895-CS01
2
KTS8895-CS02
3
KTS8896-CS01
4 62KTS889FH101
5
17C33A0706001Y4
ATTENTION:
Make sure that each bolt needed for all steps match the
corresponding figure to ensure proper assembly.

STEP 1:

Place the right arm (#2) onto a non-abrasive surface,
such as a carpet. At the front of the bench, fasten the
seat assembly (#3) to the arms (#1 and #2) by using
bolts (#5) and washers (#7). Keep the bolts loose.
See Figure 1.
NOTE:
The labels marked "L" and "R" on the arms (#1 and #2)
should coincide with Figure 1 to ensure proper
assembly.
!
Do not discard any of the packaging until you have checked that you have all the parts and pack of fittings.
!
Keep children away during assembly. This item contains small parts which can be swallowed by children.
Children should always be under direct adult supervision while using the product.
!
Retain the assembly instructions for future reference.
!
Please quote following FQC NO. when contacting service center.
INTENDED FOR RESIDENTIAL USE ONLY.
KTS8896
PART Q'TY
LEFT ARM
RIGHT ARM
SEAT ASSEMBLY
SUPPORT
BOLT M6*16
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
-WM
PART
MATERIAL CODE
NO.
1 6
17C01A0712001Y4
7
1 17FA05040301-Y4
8
1 18000337004
1
9 18000337001
10
17KAA0101----Y4
8
FIGURE 1
7
5
8
7
5
8
PART
BOLT M6*35
WASHER d6.5*D13*1.0
BOLT CAP
BOLT CAP M6
HEX. KEY WRENCH 4MM
1
L
3
R 2
16
#5 BOLT M6*16
COURTYARD CREATIONS INC.
Q'TY
2
10
8
2
1
