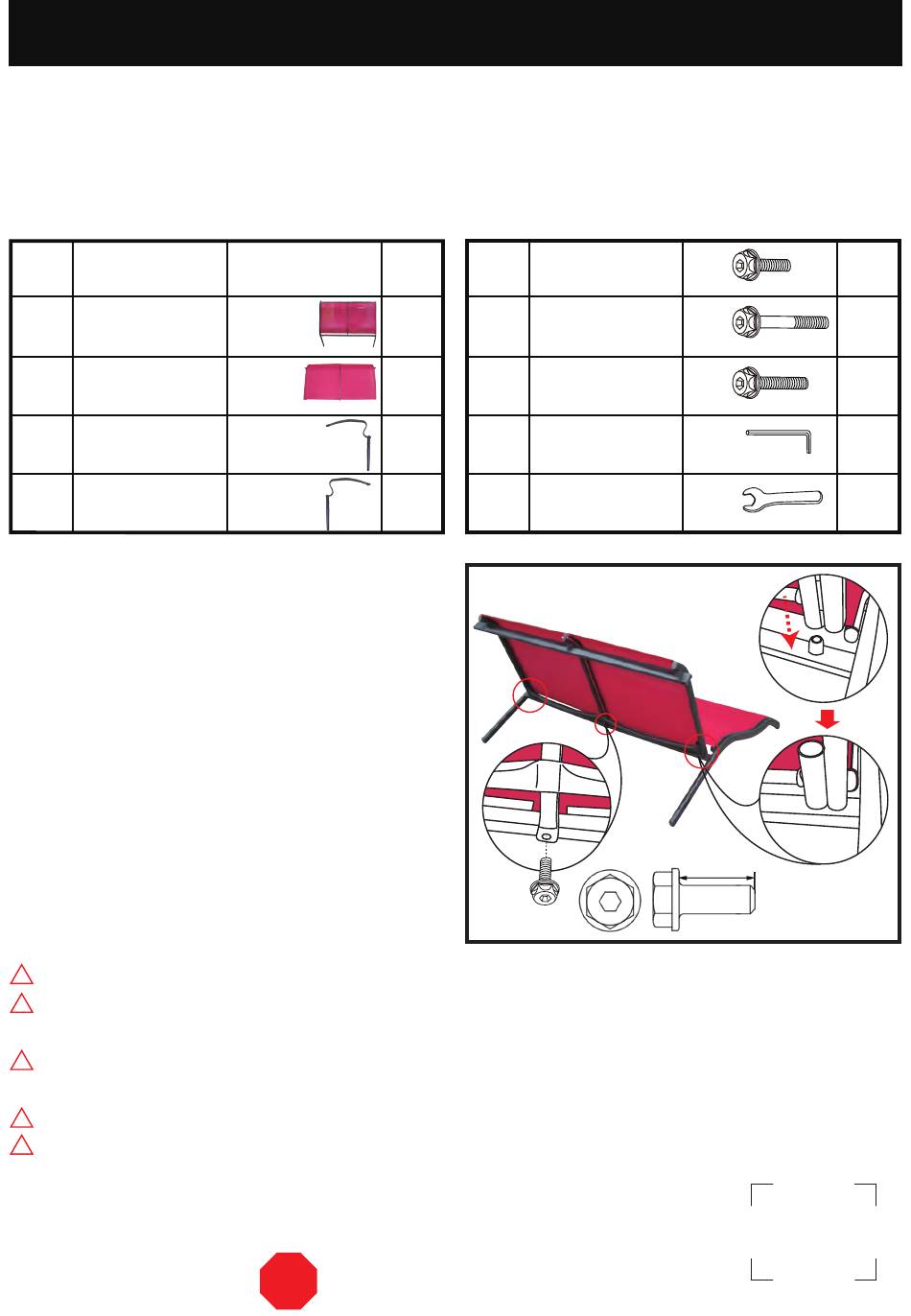

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL

PARTS LIST

PART
MATERIAL CODE
NO.
1
KTS791F-CS04-6
2
KTS791F-CS02-1
3
KTS791E-CS01-2
4
KTS791E-CS01-3
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.

Step 1:

Place the back assembly (#1) onto a non-abrasive surface,
such as a carpet. Insert the back assembly (#1) into the seat
assembly (#2). Fasten the middle bar on the underside of the
seat assembly (#2) to the back assembly (#1) by using bolt
(#5). Keep the bolt loose. See Figure 1.
!
Use the correct bolts as indicated. Do not tighten any of the bolts until the bench is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
V-3
USE INTENDED FOR RESIDENTIAL USE ONLY.
KTS791F
PART
Q'TY
BACK ASSEMBLY
SEAT ASSEMBLY
LEFT ARM
RIGHT ARM
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
STOP
DO NOT RETURN TO THE STORE!
PAGE 1 OF 2
5
17C40A0705001YX
1
6
17C40A0722001YX
1
7
17C40A0712001YX
1
8
17KAA0101----Y4
1
9
17KAC3101----Y3
FIGURE 1
5
BOLT M6*15
BOLT M6*65
BOLT M6*35
HEX. KEY WRENCH 4MM
HEX. KEY WRENCH 10MM
2
1
15
#5 BOLT M6*15
COURTYARD CREATIONS INC.
5
2
2
1
1
2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KTS791F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Courtyard Creations KTS791F

  • Page 1 Retain these assembly instructions for future reference. Quote the following FQC NO. when contacting the service center. SERVICE CENTER TOLL FREE NO. TEL: 1-877-539-7436 FAX: 1-877-539-7439 STOP DO NOT RETURN TO THE STORE! COURTYARD CREATIONS INC. PAGE 1 OF 2...
  • Page 2 FIGURE 2 FIGURE 3 #5 BOLT M6*15 #6 BOLT M6*65 Step 2: Step 3: At the rear of the seat, fasten the seat assembly (#2) to the Fasten both the left arm (#3) and the right arm (#4) to the seat back assembly (#1) by using bolts (#6).
  • Page 3 Cuando se comunique con el centro de servicio, proporcione siempre el siguiente código de control de calidad (FQC, por sus siglas en inglés). NÚMERO GRATUITO DEL CENTRO DE SERVICIO TEL: 1-877-539-7436 FAX: 1-877-539-7439 ALTO ¡NO DEVUELVA ESTE PRODUCTO A LA TIENDA! COURTYARD CREATIONS INC. PÁGINA 1 DE 2...
  • Page 4 FIGURA 2 FIGURA 3 #5 TORNILLO M6*15 #6 TORNILLO M6*65 Paso 2: Paso 3: Sujete la parte trasera del asiento (#2) al respaldo (#1) con Sujete el brazo izquierdo (#3) y el brazo derecho (#4) al ayuda de los tornillos (#6). Deje los tornillos flojos. asiento (#2) con ayuda de los tornillos (#5).
