ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

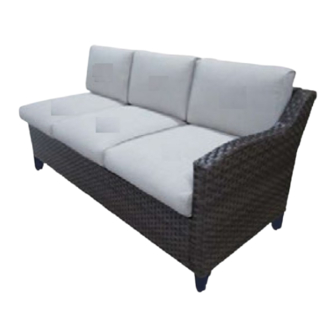

AUGUSTA ALL-WEATHER WICKER 3 PERSON
LEFT ARM CUSHION SOFA AND RIGHT ARM LOVESEAT
PARTS LIST
PART
MATERIAL CODE
NO.
1
KVS941A-CS03-1
2
KVS941A-CS02-1
3
KVS941Z-CS01-1
4
17C40A0710001YX
5
17C40A0712001YX
6
28000221046
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Fasten the plastic leg cap (#6) to the back assembly (#1)
by using washer (#8) and nut (#7). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the chair is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. when contacting the service center.
E-3
INTENDED FOR RESIDENTIAL USE ONLY.
SVS20P8
KVS941Z
PART
Q'TY
1
BACK ASSEMBLY
1
SEAT ASSEMBLY
1
ARM ASSEMBLY
MBLY
3
BOLT M6*30
5
BOLT M6*35
4
PLASTIC LEG CAP
SERVICE CENTER TOLL FREE NO
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 6
7
17LA07121----YX
8
17FC08030801-YX
9
17KAA0101----Y4
10
17KAA0201----Y4
11
17KAC3101----Y3
12
61K941ZX00001BA
13
61K941ZY00001BA
FIGURE 1
6
8
6
COURTYARD CREATIONS INC.
NUT M8
WASHER d8.5*D12*2.1
HEX. KEY WRENCH 4MM
HEX. KEY WRENCH 6MM
HEX. KEY WRENCH 10MM
BACK CUSHION
SEAT CUSHION
1
7
4
4
1
1
1
3
3
