Courtyard Creations KTS127W-WM Assembly Instruction

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

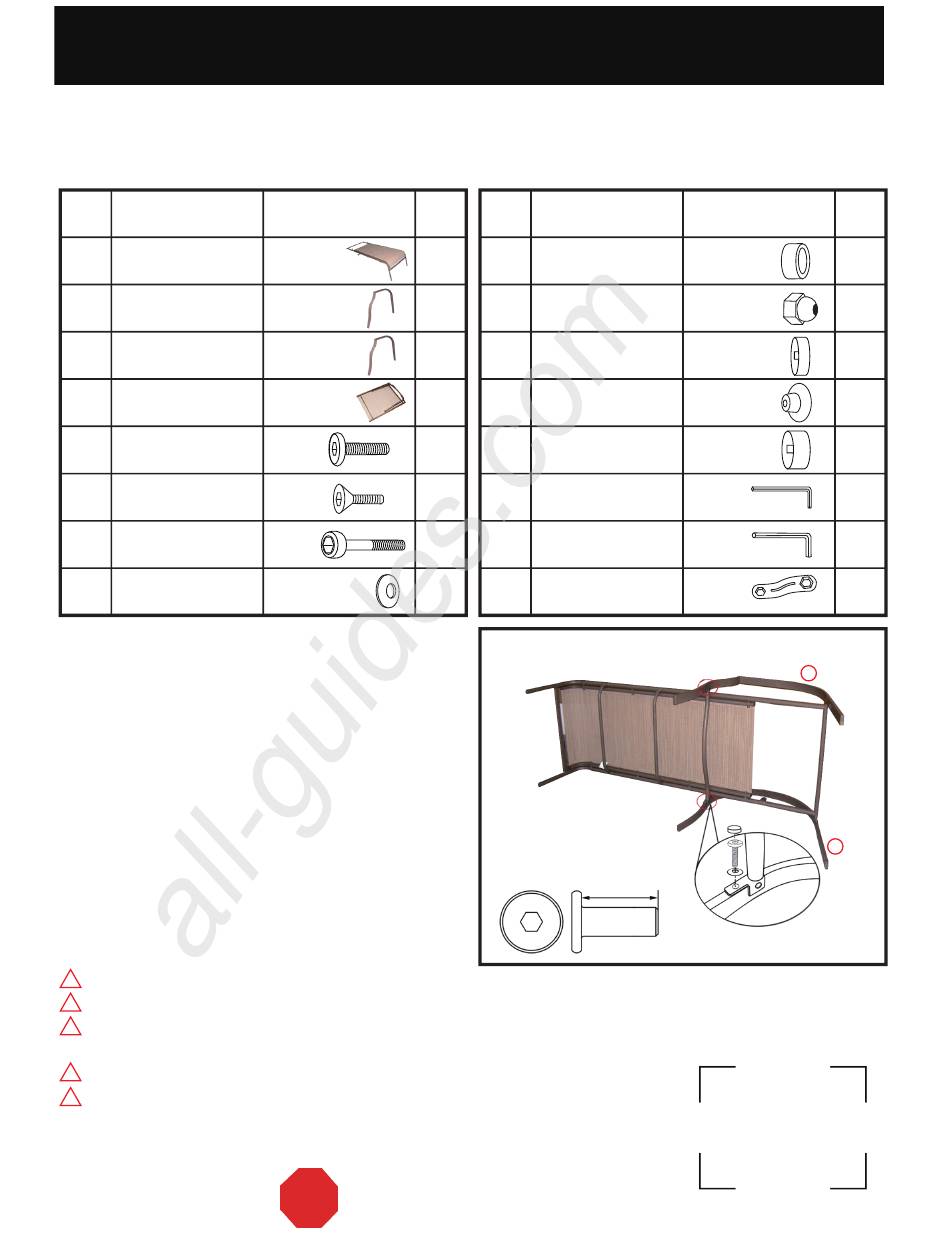

PARTS LIST
PART
MATERIAL CODE
NO.
1
KTS127W-CS01
2
KTS127W-CS02
3
KTS127W-CS03
4
KTS127W-CS04
5
17C33A0706001Y4
6
17C02A0755131Y4
7
17C01A0716072Y4
8
17FA05040301-Y4
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.
Step 1:
Place the right leg (#3) onto a non-abrasive surface, such as
a carpet. At the front of the lounge chair, fasten the seat
assembly (#1) to the legs (#2 and #3) by using bolts (#5) and
washers (#8). Keep the bolts loose. See Figure 1.
Note:
The labels marked "L" and "R" on the legs (#2 and #3) should
coincide with Figure 1 to ensure proper assembly.
! Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
All manuals and user guides at all-guides.com
INTENDED FOR RESIDENTIAL USE ONLY.
KTS127W
PART Q'TY
1
SEAT ASSEMBLY
1
LEFT LEG
1
RIGHT LEG
1
BACK ASSEMBLY
6
BOLT M6*16
2
BOLT M6*14
2
BOLT M6*45
10
WASHER d6.5*D13*1.0
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
-WM
PART
MATERIAL CODE
NO.
9
18060603030201
10
18000C23001
11
18000337004
12
18000337006
13
18000337002
14
17KAA0101----Y4
15
17KAA0201----Y4
16
17KAB1101----Y4
FIGURE 1
1
16
#5 BOLT M6*16
COURTYARD CREATIONS INC.
PART Q'TY
2
PLASTIC WASHER
2
PLASTIC NUT M6*P1.0
6
BOLT CAP
2
BOLT CAP M6
2
BOLT CAP M6
1
KEX.KEY WRENCH 4MM
1
KEX.KEY WRENCH 6MM
1
NUT WRENCH 10&13MM
2
L
11
3
R
5
8
