ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
KUS100F-CS01
2
KUS100F-CS02
3
KUS100F-CS03
4
KUS100F-CS04
5
KUS100F-CS05
6
KSS1008-CS08
7
17C01A0844061Y4
8
17C01A0709001Y4
9
17C21A0713081Y4
10
17C01A0716072Y4
11
17C17A1904001Y4
You will need the following tools:
- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Part #19)
!
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children.
Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
INTENDED FOR RESIDENTIAL USE ONLY.

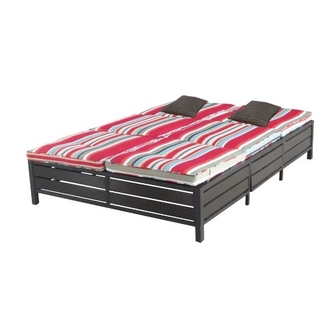

KUS100F
PART
MIDDLE SEAT
MIDDLE LEG
LEG A
LEG B
BACK
SEAT CROSS BRACE
BOLT M8*95
BOLT M6*25
BOLT M6*39
BOLT M6*45
SCREW ST3.9*13
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 4
-WM
Q'TY
12
17FA08060601-Y4
2
13
17FA05040301-Y4
2
14
17D03A040401-Y4
2
15
18000C23001
2
16
18000337001
4
17
18000337002
4
18
17KAA0201----Y4
2
19
17KAA0101----Y4
8
20
17KAB1101----Y4
8
21
61K100FC00001BA
8
22
61K100FC50001BA
4
23
61K100FJ00001BA
- Hex. Key Wrench (See Part #18)
WASHER d8.5*D17*1.6
WASHER d6.5*D13*1.0
JAM NUT M8*1.25
PLASTIC NUT M6*P1.0
BOLT CAP M6
BOLT CAP M6
HEX.KEY WRENCH 6MM
HEX.KEY WRENCH 4MM
NUT WRENCH 10&13MM
LEFT CUSHION
RIGHT CUSHION
PILLOW
COURTYARD CREATIONS INC.
4
32
2
8
8
16
1
1
1
1
1
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Courtyard Creations KUS100F-WM
Summary of Contents for Courtyard Creations KUS100F-WM
- Page 1 Children should always be under direct adult supervision while using this product. Retain these assembly instructions for future reference. Quote the following FQC NO. when contacting the service center. SERVICE CENTER TOLL FREE NO. TEL: 1-877-539-7436 FAX: 1-877-539-7439 DON’T RETURN TO STORE! STOP COURTYARD CREATIONS INC. PAGE 1 OF 4...
- Page 2 FIGURE 1 FIGURE 2 #7 BOLT M8*95 Attention: Step 2: Make sure that each bolt needed for all steps matches Insert the leg A (#3) into the middle seats (#1). Do the the corresponding figure to ensure proper assembly. same procedure for the other leg A (#3). Then, fasten the leg A (#3) to the middle seats (#1) by using the Step 1: screws (#11).
- Page 3 FIGURE 5 FIGURE 6 Thick Fine #10 BOLT M6*45 Step 5: Step 6: Fasten the seat cross brace (#6) to the backs (#5) by Press the spring buttons on the cross braces (#6) to turn using bolts (#10), washers (#13) and plastic nuts (#15). the lounge into a bed.
- Page 4 FIGURE 9 Step 9: You can use this chair with three positions. See Figure 9. Note: Turn the lounge into a bed, press the spring buttons on the seat cross braces (#6). The seat cross braces have two pre-drilled holes that allow the backs to recline into two positions. Attention: Orbit lounge dust cover is intended for dust only.
