3.0..............................................................................Front Panel

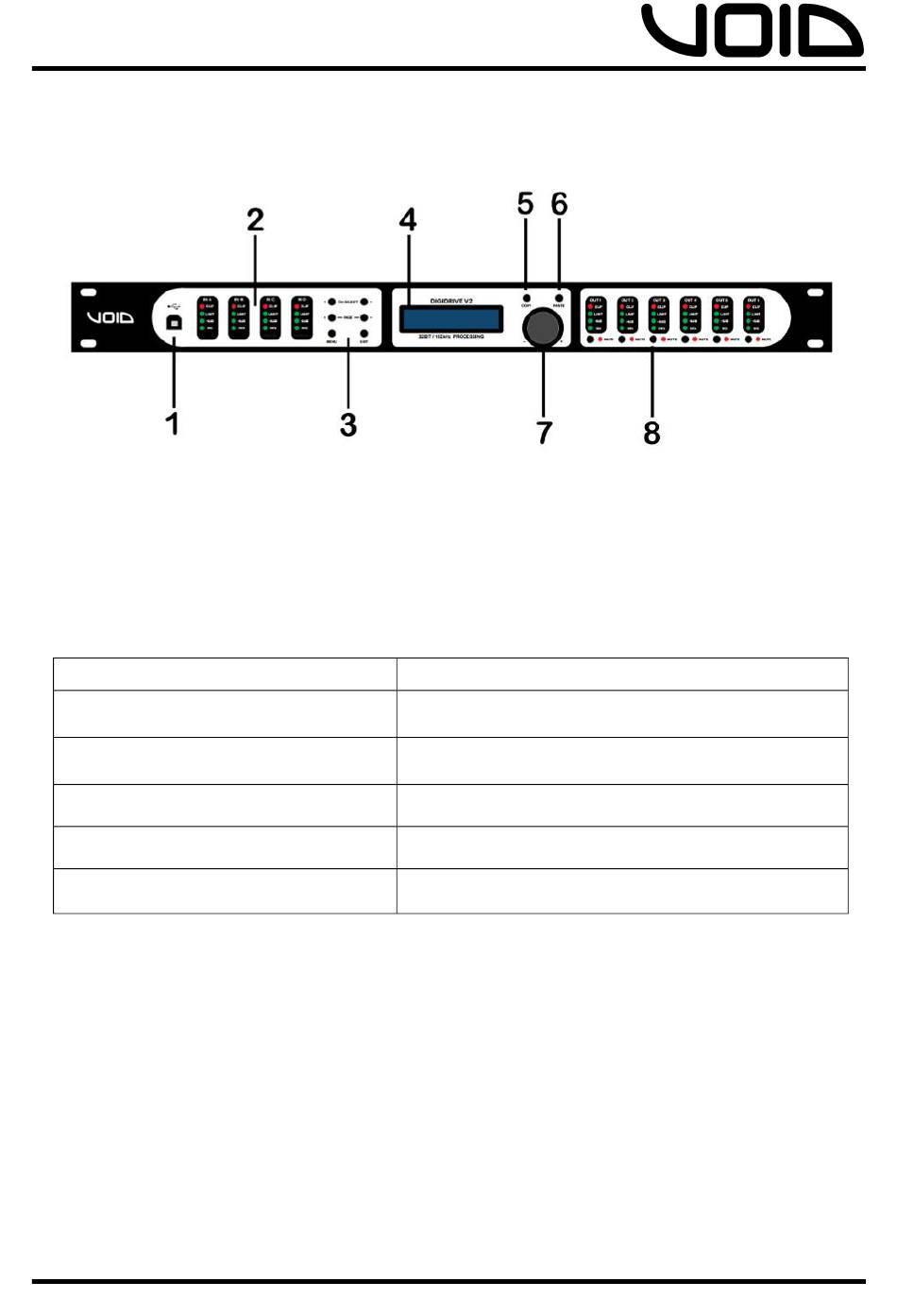

1. USB Port – standard Type-B female socket.
2. Peak Level LED – shows the current peak of the signal: SIG,
-6dB, Limit, Clip. Input's Limit = Max. headroom. Output Limit =
threshold of limiter.
3. Menu & Control Keys –
- CH SELECT
CH SELECT +
- PAGE
PAGE +
MENU
EXIT
4. LCD – shows information about the unit
5. Copy –
6. Paste –
7. Control Wheel – gives velocity sensitive control over
parameter values. There is also a button click to allow
changing parameters.
8. Mute – mutes/un-mutes the corresponding output channel.
When a channel is muted, a red LED will light up.
10
Previous channel
Next channel
Previous page
Next page
System information
Return to main menu, backspace
*WILL BE AVAILABLE IN A FIRMWARE UPDATE*
*WILL BE AVAILABLE IN A FIRMWARE UPDATE*
